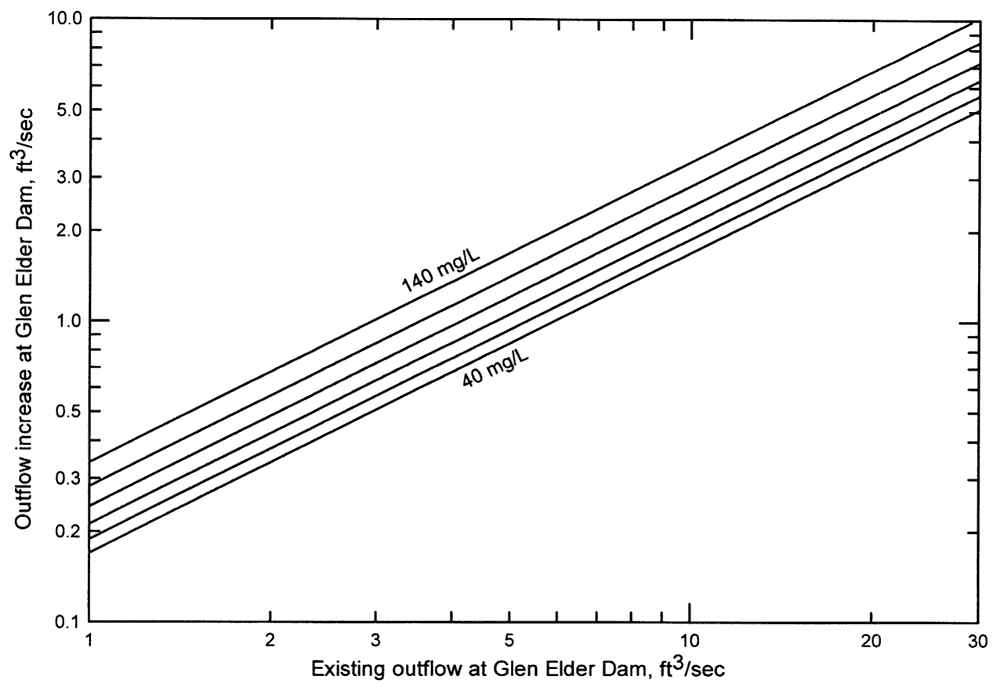

Figure 38. Outflow increase needed from Waconda Lake to dilute Solomon River water at Beloit to 240 mg/L versus existing lake outflow for different chloride concentrations of Waconda Lake given an initial chloride content of 270 mg/L at Beloit. The lines for Waconda Lake chloride concentration ranges from 40 mg/L to 140 mg/L in 20 mg/L intervals.
