Figure 13

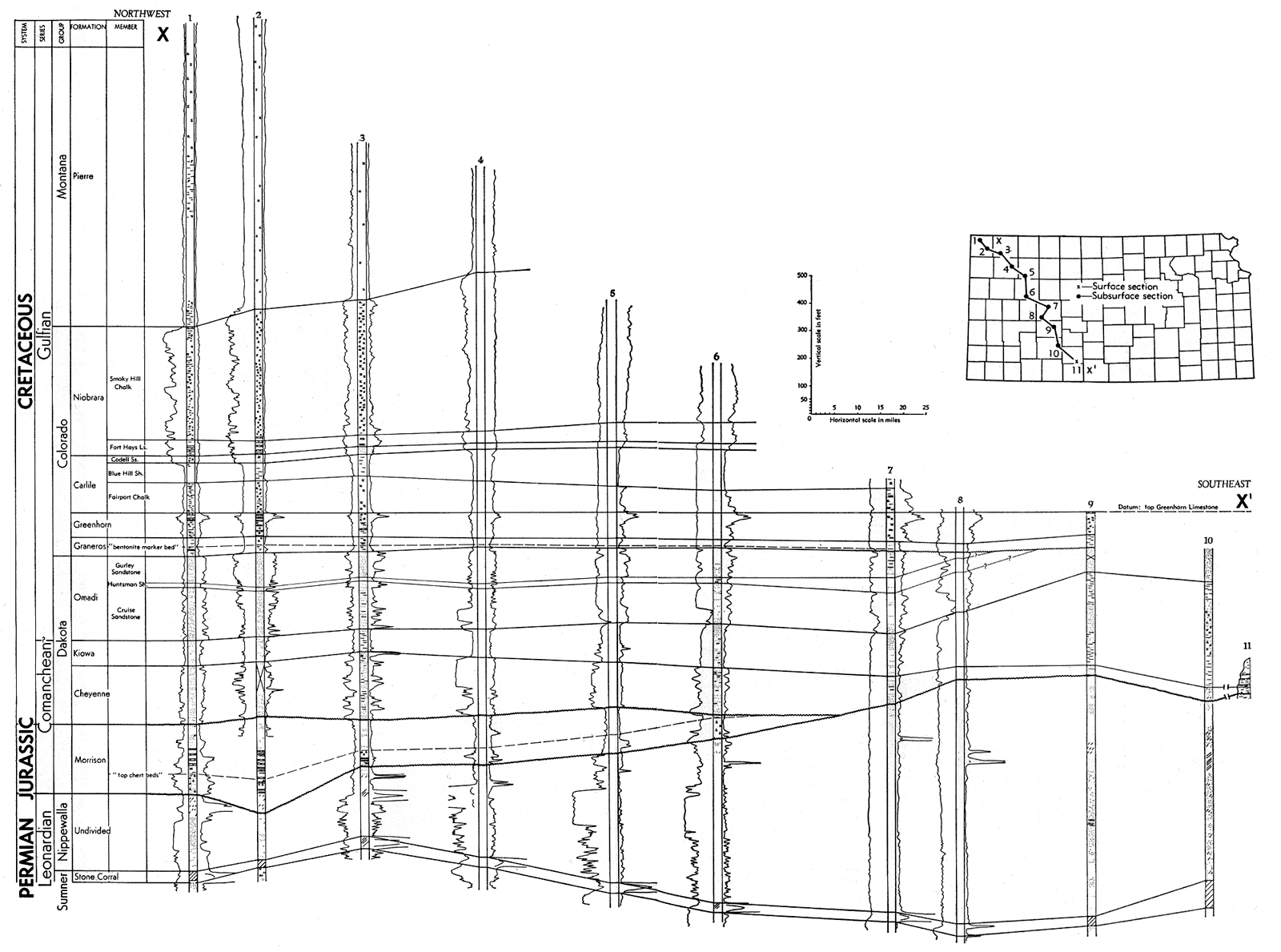

Figure 13--Cross section from Cheyenne County to Kiowa County showing correlation and stratigraphic relation of Mesozoic rocks (from Merriam, 1957b).

Cheyenne consistent until thinning in Ness; Omadi also thins in Ness; Nipewalla thickens from Gove to Ford; outcrops in Southern Kiowa.
