Figure 3

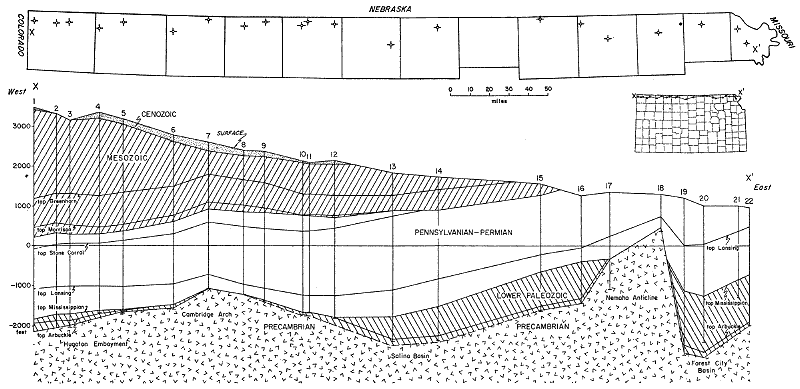

Figure 3--West-east cross section from Cheyenne County to Doniphan County showing stratigraphic relation of major units (from Merriam and Hambleton, 1956). Numbers refer to wells listed in Appendix F.

Cross section along northern-most counties shows Mesozoic pinching out in Washington, consistent Penn-Perm thickness; Precambrian high in Nemaha and low in Brown.
