Elk County Geohydrology

Back to Stratigraphy and Structure...


Figure 8

A higher resolution PDF version (124k) of this figure is available. You will need the Acrobat PDF Reader, available free from Adobe, to view the figure.

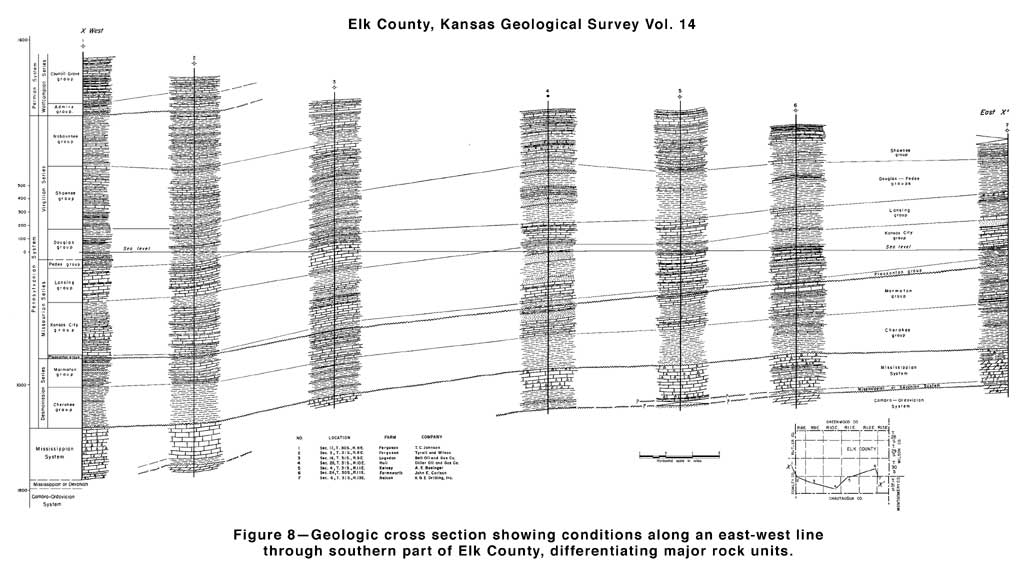

Figure 8--Geologic cross section showing conditions along an east-west line through southern part of Elk County, differentiating major rock units.

thickest section to west, thinner in east
