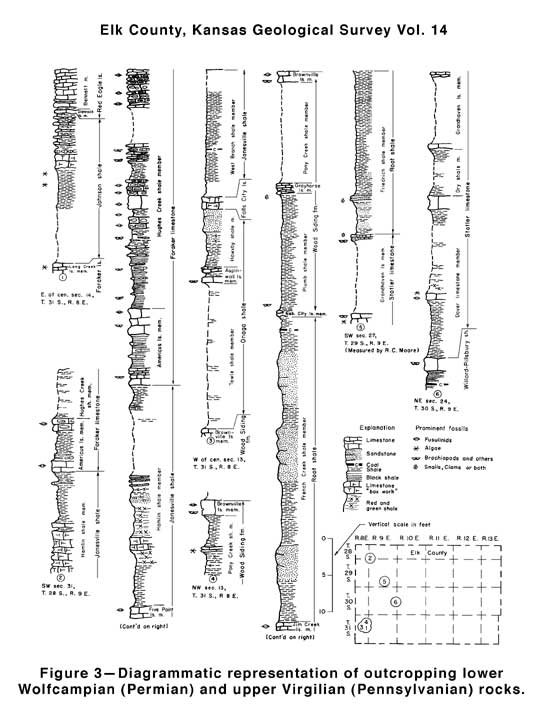

Figure 3--Diagrammatic representation of outcropping lower Wolfcampian (Permian) and upper Virgilian (Pennsylvanian) rocks.

outcrops represent sections in western Elk County, R9E and R8E
