Kansas Geological Survey, Bulletin 157, pt. 2, originally published in 1962
Originally published in 1962 as Kansas Geological Survey Bulletin 157, pt. 2. This is, in general, the original text as published. The information has not been updated. An Acrobat PDF version (2.4 MB) is also available.
The Kansas Basement Rocks Committee is actively collecting data pertaining to Precambrian rocks of Kansas. An additional 84 wells known to encounter the Precambrian bring the total number of known Precambrian tests in Kansas to about 2,200 as of December 31, 1961. A generalized configuration map of the surface of Precambrian rocks shows major post-Mississippian structural features in the state. Potassium-argon age dates for five samples range from 1165 to 1460 million years.
Since the first list of Precambrian wells drilled into Precambrian rock in Kansas was published (Cole and others, 1961), many additional wells have encountered basement rocks. Desirability of keeping the list up to date and available for interested workers, because of the considerable present interest in the Precambrian, warrants publication of this first supplement. Information is presented with the same format as that in the earlier publication.
Most of the wells listed in this supplement were drilled in 1961, but a few had been drilled previously. Any information concerning other omissions, additions, and corrections forwarded to Kansas Geological Survey, The University of Kansas, Lawrence, will be appreciated.
The Kansas Basement Rocks Committee, operating under the guidance of the Basement Rocks Project Committee of the American Association of Petroleum Geologists, P. T. Flawn, Chairman, consists of the following members: V. B. Cole, Chairman, L. H. Cornell, P. C. Franks, W. W. Hambleton, P. L. Hilpman, R. P. Lehman, and D. F. Merriam. Objectives of the committee include:
One of the most important functions of the committee is to gather available samples and cores and arrange for their permanent storage. This the committee is actively doing, and the material is kept on file in the offices of the Kansas Survey at Lawrence.
Reports on several projects by members of the committee have been published as:
It is hoped that these preliminary results will encourage others to undertake study of Precambrian problems, especially in Kansas.
We thank Miss Polly Peterson of Phillips Petroleum Company and Miss Polly Smith of the Kansas Geological Survey for help in compiling and checking the list of wells. The Oil and Gas Division of the Kansas Survey keeps current a list of Precambrian wells and this was most helpful. J. Laurence Kulp of Lamont Geological Observatory of Columbia University made the age determinations on five Precambrian core samples. Several members of the Basement Rocks Committee offered suggestions and help in matters concerning special problems and reviewed the manuscript.
A generalized map prepared by Cole (1962) of the configuration of the surface of Precambrian rocks has been generalized at reduced scale for inclusion here (Fig. 1). Major structures of the state are evident. The surface is highest in northeastern Kansas at about 500 feet above sea level and lowest in southwestern Kansas at about 6000 feet below sea level.

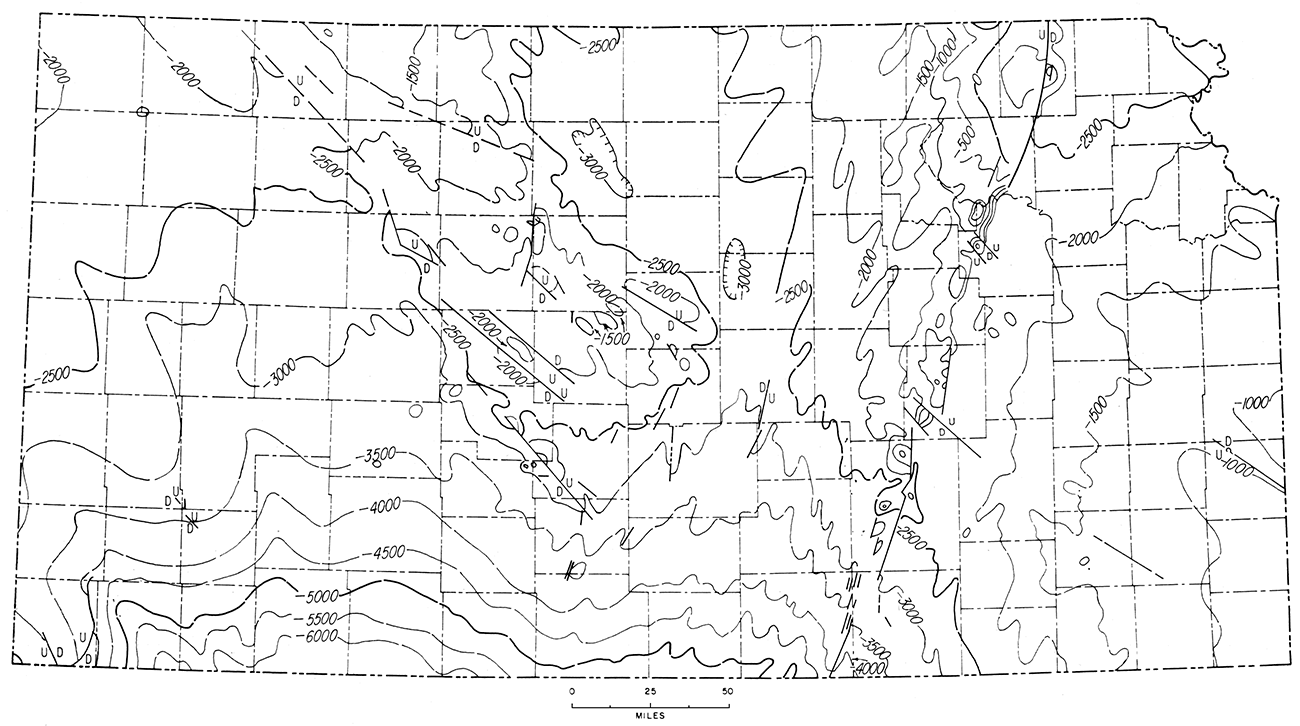

Figure 1—Configuration of surface of Precambrian rocks in Kansas (contour interval—500 feet). The map is generalized from one prepared by Cole (1962).
Techniques of presentation of the configuration map are being investigated; one such method, using inclined profiles and shading, is reproduced as Figure 2. The cartographic work is under the general supervision of George F. Jenks, Department of Geography, University of Kansas. In addition, a 3D model of the surface is being prepared for permanent display.

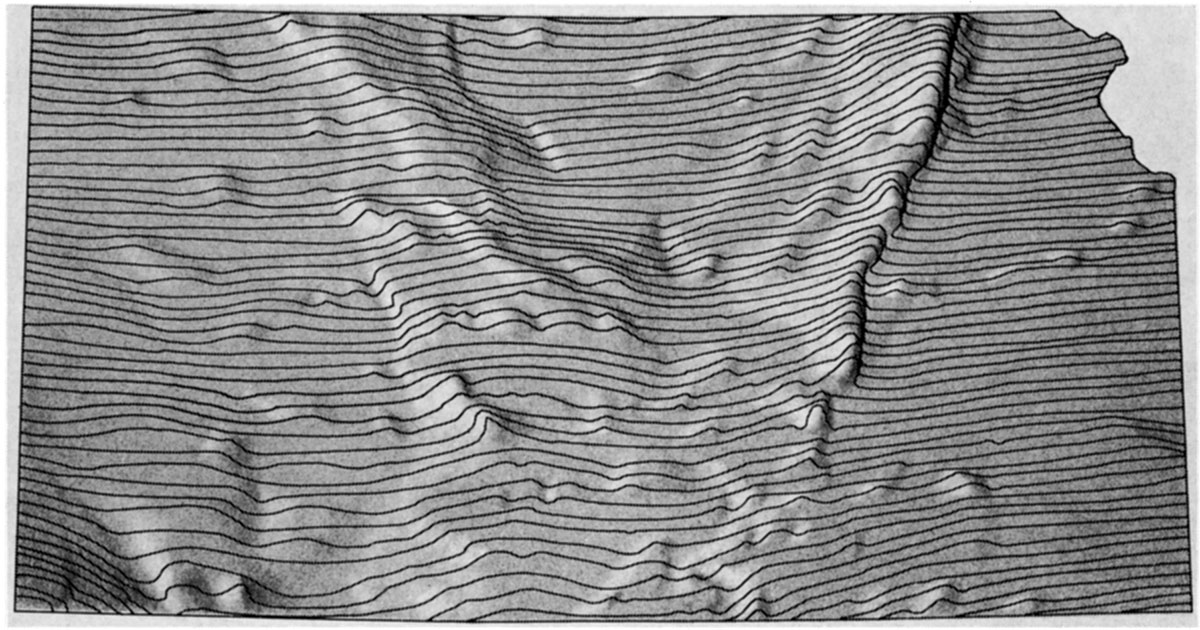

Figure 2—Configuration of surface of Precambrian rocks shown by inclined profiles and shading; map prepared by George F. Jenks. Inclined-plane profiles were developed by Professor Tanaka Kitiro; further adaption of the technique was developed by Professor Arthur H. Robinson of the Department of Geography, University of Washington.
Potassium-argon ages of five samples from Barton, Rush, and Morris Counties were determined by J. Laurence Kulp of Lamont Geological Observatory of Columbia University. Dates obtained range from 1165 to 1460 million years, comparable to ages elsewhere in the central United States (J. L. Kulp, personal communication to W. W. Hambleton, October 17, 1961). Source of the material dated is in Table 1 and Figure 3.
Table 1—Potassium-argon dates of samples of Kansas Precambrian rocks (determined by J. L. Kulp).
Well name | Location | County | Rock type | Age, million years |
---|---|---|---|---|
Atlantic No. 10A Patzner | E2 W2 SE sec. 36, T. 17 S., R 11 W. |
Barton | Altered chiastolite (?) schist | 1165 |
Skelly No. 1 Betz | NE SE SW sec. 5, T. 18 S., R16 W. |
Rush | Gneissic granite | 1260 |
Skelly No. 4 Dyer | NE SE NW sec. 21, T. 18 S., R 16 W. |
Rush | Quartz-sericite schist | 1200 |
Skelly No. 7 Schultz | NW NW NEsec. 5, T. 19 S., R15 W. |
Barton | Quartz-sericite schist | 1460 |
Leslie No. 1A McConnell | SE SE SE sec. 14, T. 16 S., R 9 E. |
Morris | Quartz-sericite schist | 1290 |

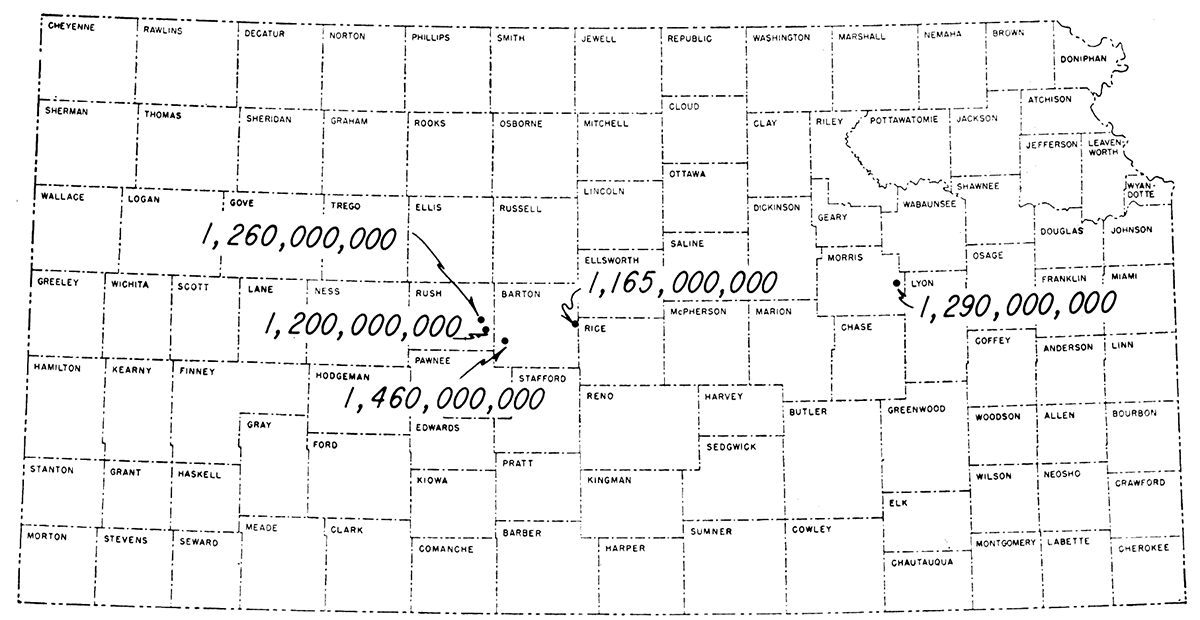

Figure 3—Location of wells from which samples were obtained for dating by potassium-argon method (determined by Dr. J. L. Kulp).
The list (Table 2), which is arranged by township in west and east ranges, includes name of the well, location, surface elevation, depth to Precambrian rock, datum of Precambrian surface, total depth, lithology of Precambrian rock penetrated, and sedimentary rock unit resting on Precambrian. These data have been compiled from electric and radioactivity logs, top cards, drillers logs, sample logs, and logs of the Kansas Sample Log Service.
All wells have been verified by information from at least two sources. Every effort has been made to cite correct information, but elevation, Precambrian rock type, and sedimentary rock unit overlying the Precambrian surface were difficult items to check. Subsequent additions to the list of wells drilled to Precambrian rock in Kansas will be published in the Kansas Geological Survey's oil and gas development reports, which are issued annually. In this way, it will be possible to keep the list up to date for those who are interested, but will not necessitate the issuance of a separate publication.Table 2—Additional boreholes drilled to Precambrian rocks in Kansas.
County | Company, well number, and farm |
Location | Surface elevation, feet |
Depth to Precambrian, feet |
Elevation of Precambrian, feet |
Precambrian rock type |
Rock unit on basement |
Total depth, feet |
---|---|---|---|---|---|---|---|---|
Norton | Sinclair No. 1 Rorabaugh |
20-1-22W C SE NE |
2417 | 3794 | -1377 | granite wash | Arbuckle | 3800 |
Norton | Empire & Shields No. 1 Browne |
34-1-24W SW SW SE |
2441 | 3675 | -1234 | 10 ft. granite wash on granite |
Pennsylvanian | 3688 |
Norton | British American No. 1 Ervin |
13-1-25W C NE NE |
2401 | 3544 | -1143 | 5 ft. granite wash on granite |
Reagan | 3556 |
Norton | British American No. 1 "C" Meyers |
24-1-25W C SE NE |
2417 | 3570 | -1153 | 39 ft. granite wash on granite |
Reagan | 3617 |
Norton | Woodman & Iannitti No. 1 Goss |
35-1-25W C NW NW |
2513 | 3700 | -1187 | 34 ft. granite wash on granite |
Pennsylvanian | 3751 |
Decatur | Imperial No. 1 Knutson |
11-1-26W C SE NW |
2477 | 3606 | -1129 | 19 ft. granite wash on granite |
Reagan | 3631 |
Decatur | Sauvage No. 1 Lawson |
11-1-26W C NE SW |
2476 | 3608 | -1132 | granite | Reagan | 3614 |
Decatur | Sauvage No. 2 Lawson |
11-1-26W C SE SW |
2449 | 3578 | -1129 | granite | Reagan | 3587 |
Decatur | Empire No. 1 Kelly |
21-1-26W C SW SW |
2506 | 3570 | -1064 | 8 ft. granite wash on granite |
Pennsylvanian | 3583 |
Decatur | Woodman & Iannitti No. 1 Van Gundy |
36-1-26W C SE SW |
2514 | 3763 | -1249 | 7 ft. granite wash on granite |
Pennsylvanian | 3773 |
Decatur | Gower No. 1 Osburn |
6-1-27W C SE SE |
2662 | 3734 | -1072 | 39 ft. granite wash on granite |
Pennsylvanian | 3778 |
Decatur | Sauvage No. 1 Kilzer |
16-1-27W SW SW SW |
2504 | 3589 | -1085 | 33 ft. granite wash on granite |
Reagan | 3640 |
Decatur | Empire No. 1 Katha |
7-1-28W C SE NE |
2687 | 4085 | -1398 | 7 ft. granite wash on granite |
Reagan | 4095 |
Decatur | Farmer & Appleman No. 1 Southwick |
17-1-28W SE SE SE |
2693 | 4119 | -1426 | 28 ft. granite wash on granite |
Reagan | 4152 |
Rawlins | Leben & Amerada No. 1 Peterson |
8-1-33W C NW NE |
3025 | 4662 | -1637 | quartzite | Arbuckle | 4680 |
Rawlins | Allan No. 1 Ohlson |
3-1-34W C SE NE |
3129 | 4669 | -1540 | quartzite | Pennsylvanian | 4674 |
Norton | Sinclair No. 1 Melroy |
3-2-23W NW SE SE |
2393 | 3680 | -1287 | 14 ft. granite wash on granite |
Pennsylvanian | 3773 |
Norton | Empire & Shields No. 1 "A" Meier |
1-2-24W SE SE SE |
2467 | 3741 | -1274 | granite | Reagan | 3747 |
Norton | Sinclair No. 1 Thiele |
20-2-24W NE NW NE |
2471 | 3724 | -1253 | 22 ft. granite wash on granite |
Reagan | 3775 |
Norton | Raymond and Murfin No. 1 Schulze |
24-2-24W C SW SE |
2431 | 3690 | -1259 | 23 ft. granite wash on granite |
Pennsylvanian | 3725 |
Decatur | Murfin No. 1 Carter |
21-2-26W C SW SW |
2614 | 3913 | -1299 | granite | Reagan | 3928 |
Decatur | Murfin No. 1 Miller |
12-2-28W C NE SW |
2490 | 3930 | -1440 | 32 ft. granite wash on granite |
Arbuckle | 4040 |
Decatur | Sauvage No. 1 Addelman |
1-2-29W C SE NW |
2748 | 4231 | -1483 | 14 ft. granite wash on granite |
Reagan | 4247 |
Norton | Empire No. 1 LeBeau |
27-3-23W C NE SW |
2423 | 3735 | -1312 | 41 ft. granite wash on granite |
Pennsylvanian | 3779 |
Norton | Gore No. 9 Lawson |
30-3S-23W E2 E2 NW |
2382 | 3706 | -1324 | granite wash | Reagan | 3710 |
Norton | Ferguson No. 1 Ankenman |
29-3-24W C NE NW |
2341 | 3679 | -1338 | 20 ft. granite wash on granite |
Reagan | 3725 |
Norton | Sinclair No. 1 Robbins |
14-3-25W SW NE NW |
2460 | 3737 | -1277 | 53 ft. granite wash on weathered granite |
Pennsylvanian | 3848 |
Norton | Union Texas No. 1 Wiltfong |
15-3-25W NW NW SW |
2448 | 3810 | -1362 | 10 ft. granite wash on granite |
Reagan | 3830 |
Decatur | Empire & Shields No. 1 Brooks |
24-3-26W NE NE NE |
2537 | 3954 | -1417 | granite | Reagan | 3956 |
Decatur | Farmer No. 1 Johnson |
27-3-27W C NE NW |
2624 | 4213 | -1589 | weathered granite? granite? |
Reagan | 4218 |
Norton | B&R No. 1 Archer |
8-5-21W NW NE NW |
2061 | 3575 | -1514 | granite wash | Reagan | 3583 |
Norton | Hansen No. 1 Hemphill |
4-5-22W NW NE NW |
2216 | 3712 | -1496 | granite | Reagan | 3729 |
Rooks | Sierra & Houston No. 1 Long |
5-7-19W SE SE SW |
1988 | 3556 | -1568 | 15 ft. granite wash on granite |
Reagan | 3572 |
Ellis | Alpine No. 2 "B" Leinmiller |
2-12-19W NE NW SW |
2151 | 4211 | -2060 | granite wash | Reagan | 4215 |
Ellis | Hinkle No. 2 "A" Brungardt |
25-13-16W NW SW SW |
1914 | 3512 | -1598 | granite wash | Arbuckle | 3525 |
Ellis | Bell Brothers No. 6 Von Lintel |
26-13-17W SW NE NW |
1964 | 3982 | -2018 | granite | Reagan | 3983 |
Russell | Keystone No. 2 Boxberger |
2-14-14W NE SW NW |
1826 | 3320 | -1494 | granite | Arbuckle | 3321 |
Russell | Leben No. 1 Williams |
9-14-14W SE SE SW |
1871 | 3254 | -1383 | 21 ft. granite wash on granite |
Pennsylvanian | 3291 |
Russell | Addis No. 4 "C" Boxberger |
16-14-14W E2 SW NE |
1877 | 3280 | -1403 | granite wash | Pennsylvanian | 3285 |
Russell | Addis No. 5 "C" Boxberger |
16-14-14W W2 NE NE |
1877 | 3281 | -1404 | granite wash | Pennsylvanian | 3286 |
Russell | Addis No. 6 "C" Boxberger |
16-14-14W NE NW NE |
1874 | 3279 | -1405 | granite wash | Pennsylvanian | 3316 |
Russell | Shumaker Estate No. 7 Coady |
16-14-14W NE SW SW |
1870 | 3284 | -1414 | granite wash | Pennsylvanian | 3290 |
Russell | Cities Service No. 23 "B" Ebel |
24-14-14W NE SE SE |
1737 | 3134 | -1397 | granite wash | Pennsylvanian | 3136 |
Russell | Addis No. 6 Mills |
4-14-15W NE SE NE |
1894 | 3288 | -1394 | granite wash | Pennsylvanian | 3318 |
Russell | Lario No. 2 Waudby |
26-14-15W NE NE SE |
1746 | 3247 | -1501 | 55 ft. granite wash on granite |
Reagan | 3325 |
Ellis | Brunson No. 1 Ward |
31-14S-19W SW SW NE |
2102 | 3826 | -1724 | quartzite | Reagan | 3828 |
Ellis | Bea No. 5 Befort |
11-14-20W NW SE NE |
2231 | 3940 | -1709 | granite wash | Reagan | 3941 |
Wallace | Texaco No. 1 Pierce |
18-14-38W C NE NE |
3559 | 6019 | -2460 | 8 ft. granite wash on granite |
Reagan | 6059 |
Russell | Birmingham-Bartlett No. 1 "A" Driscoll |
19-15-11W NW SE SW |
1848 | 3254 | -1406 | quartzite | Pennsylvanian | 3258 |
Russell | Birmingham-Bartlett No. 2 "A" Driscoll |
19-15-11W SE NW SW |
1859 | 3293 | -1434 | quartzite | Pennsylvanian | 3299 |
Russell | Birmingham -Bartlett No. 1 "A" Standinger |
26-15-12W NW NW NE |
1841 | 3330 | -1489 | quartzite | Arbuckle | 3332 |
Russell | Birmingham-Bartlett No. 1 "G" Standinger |
26-15-12W NW SE NW |
1815 | 3201 | -1386 | quartzite | Arbuckle | 3226 |
Ellis | Kaiser-Francis No. 3 Wassinger |
10-15-18W SW SE SE |
2003 | 3857 | -1854 | granite wash? | Reagan | 3862 |
Ellis | Woodman & Iannitti No. 1 Simmons |
1-15-23W NW NW SE |
2047 | 3722 | -1675 | granite | Reagan | 3723 |
Rush | Lario No. 1 Basgall |
5-16-17W NE SW SE |
1990 | 3700 | -1710 | granite wash | Reagan | 3758 |
Rush | Petroleum, Inc. No. 1 "D" Kuhn |
27-16-18W C SW NW |
2033 | 3578 | -1545 | granite wash | Pennsylvanian | 3652 |
Ellsworth | Gulf Interstate No. 2 Bushton |
31-17-9W SW SW NE |
1766 | 3698 | -1932 | granite | Reagan | 3714 |
Rush | Frontier No. 1 Schneider |
13-17-17W NE SW SW |
2069 | 3554 | -1485 | granite wash | Pennsylvanian | 3580 |
Rush | Frontier No. 1 Bieber |
15-17-17W SW NE NW |
2081 | 3567 | -1486 | granite wash | Pennsylvanian | 3603 |
Rush | Frontier No. 1 Reichel |
22-17-17W NE SW SE |
2060 | 3570 | -1510 | granite wash | Pennsylvanian | 3586 |
Rush | Frontier No. 1 Hanhardt |
24-17-17W NE SW SE |
2042 | 3530 | -1488 | granite wash | Pennsylvanian | 3551 |
Rush | Frontier No. 1 Kleweno |
25-17-17W NE SW NW |
2056 | 3557 | -1501 | granite wash | Pennsylvanian | 3616 |
Rush | Frontier No. 1 Thalheim |
26-17-17W NE SW NW |
2050 | 3558 | -1508 | granite wash | Pennsylvanian | 3570 |
Rush | Farmer No. 1 Strecker |
28-17-18W SW SW SE |
2079 | 4008 | -1929 | granite wash? | Reagan | 4014 |
Rice | Phil-Han, Adair, & Morton No. 1 Spotts |
23-18-10W W2 SE SE |
1743 | 3288 | -1545 | quartzite | Arbuckle | 3289 |
Rush | Hines No. 4 Roth |
20-18-16W NW SW NE |
1954 | 3581 | -1627 | quartz porphyry | Reagan | 3606 |
Rush | Farmer No. 1 Sueser |
5-18-17W NW NW NW |
2027 | 3691 | -1664 | granite wash | Reagan | 3711 |
Barton | Nixon No. 1 Schartz |
26-19-15W SE SW SW |
1922 | 3460 | -1538 | quartzite | Pennsylvanian | 3479 |
Barton | Bove et al. No. 3 Button |
35-19-15W E2 NW NW |
1922 | 3482 | -1560 | quartzite | Pennsylvanian | 3483 |
Barton | Bove et al. No. 4 Button |
35-19-15W NW NW NW |
1924 | 3573 | -1649 | quartzite | Arbuckle | 3575 |
Stafford | Virginia & Isern No. 4 "A" Mueller |
29-21-12W N2 NE SE |
1857 | 4230 | -2373 | granite wash | Reagan? | 4231 |
Stafford | G.M.R. (Stanolind) No. 1 Baier |
25-21-14W NE SE NE |
1920 | 4412 | -2492 | granite wash | Reagan? | 4413 |
Hodgeman | Sunray Mid-Continent No. 1 Hoagland |
10-21-22W C NE NE |
2189 | 4720 | -2531 | rhyolite | Arbuckle | 4730 |
Stafford | Stanolind No. 2 Mellies |
1-22-12W W2 SW NE |
1814 | 4277? | -2463? | granite wash? | Reagan? | 4278 |
Stafford | San Rogue No. 1 Kachelman |
36-25-14W SW NE SW |
1988 | 5145 | -3157 | diabase | Reagan | 5216 |
Nemaha | Kaufman & Heim No. 1 Smith |
22-1-11E S2 S2 SW |
1250? | 719 | +531? | 104 ft. granite wash on granite |
Pennsylvanian | 913 |
Marshall | Five Nations No. 1 Seemaster |
24-3-8E C NW NW |
1240 | 1470 | -230 | clastics | Simpson | 1627 |
Marshall | Five Nations No. 1 Sandman |
8-3-9E C SE SE |
1280 | 1391 | -111 | granite | Simpson | 1478 |
Pottawatomie | Five Nations No. 1 Orsborn |
28-7-10E C NE NE |
1317 | 1572 | -255 | granite | Simpson | 1601 |
Pottawatomie | K&E No. 1 Edwards |
15-8-10E SE SE SW |
1154 | 1076 | +78 | 24 ft. granite wash on weathered granite |
Pennsylvanian | 1157 |
Riley | White & Ellis No. 1 Kimbell |
5-11-9E NW NW SE |
1056 | 1026 | +30 | granite | Pennsylvanian | 1031 |
Greenwood | Cities Service No. 99-S Teeter |
16-23-9E SW NE SW |
1595 | 3634 | -2039 | granite | Arbuckle | 3663 |
Butler | Cities Service No. 289 Koogler |
20-26-5E N2 N2 NE |
1327 | 3276 | -1949 | 9 ft. granite wash on granite |
Reagan | 3286 |
Elk | Kenny & Cox No. 1 Bryant |
33-31-13E NW NE SE |
1000? | 2690 | -1690? | granite | Arbuckle | 2701 |
Kansas Geological Survey
Placed on web Dec. 10, 2018; originally published April 15, 1962.
Comments to webadmin@kgs.ku.edu
The URL for this page is http://www.kgs.ku.edu/Publications/Bulletins/157_2/index.html
