Kansas Geological Survey, Open File Report 98-48
GEMS Site Borehole GPR, continued


Figure 3

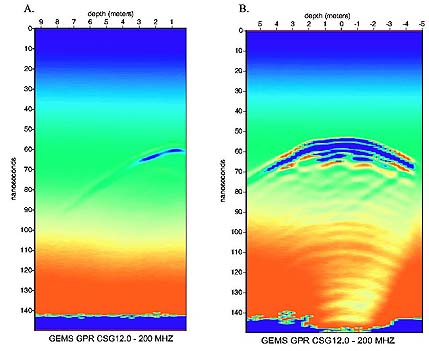

Survey 1 GPR common-source gathers using a 200 MHz borehole antenna. The vertical axis is one-way travel-time in nanoseconds, and the horizontal axis is vertical distance between source and receiver antennas. Source depth locations were (a) 12.0 m, and (b) 16.0 m. The antennas were 5.39 apart at zero-offset. A large version of this figure is available and is 64k in size.
