Kansas Geological Survey, Open File Report 98-48
GEMS Site Borehole GPR, continued

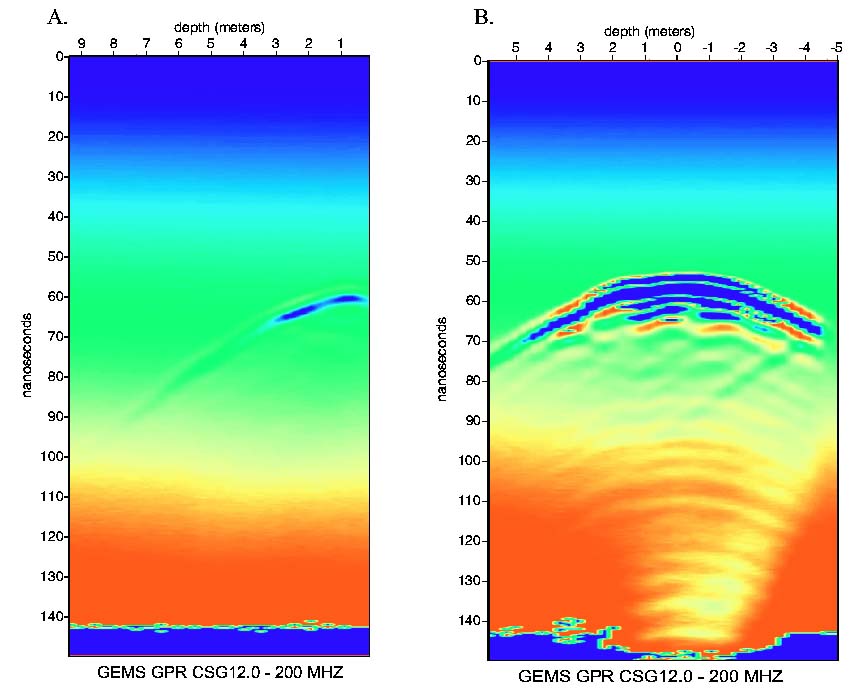

Figure 3

Survey 1 GPR common-source gathers using a 200 MHz borehole antenna. The vertical axis is one-way travel-time in nanoseconds, and the horizontal axis is vertical distance between source and receiver antennas. Source depth locations were (a) 12.0 m, and (b) 16.0 m. The antennas were 5.39 apart at zero-offset. A small version of this figure is available.
