Collaborative Geo-Engineering Reservoir
Characterization and Modeling on the Web

Kansas Geological Survey

Open File 2004-36



Cross Section Module

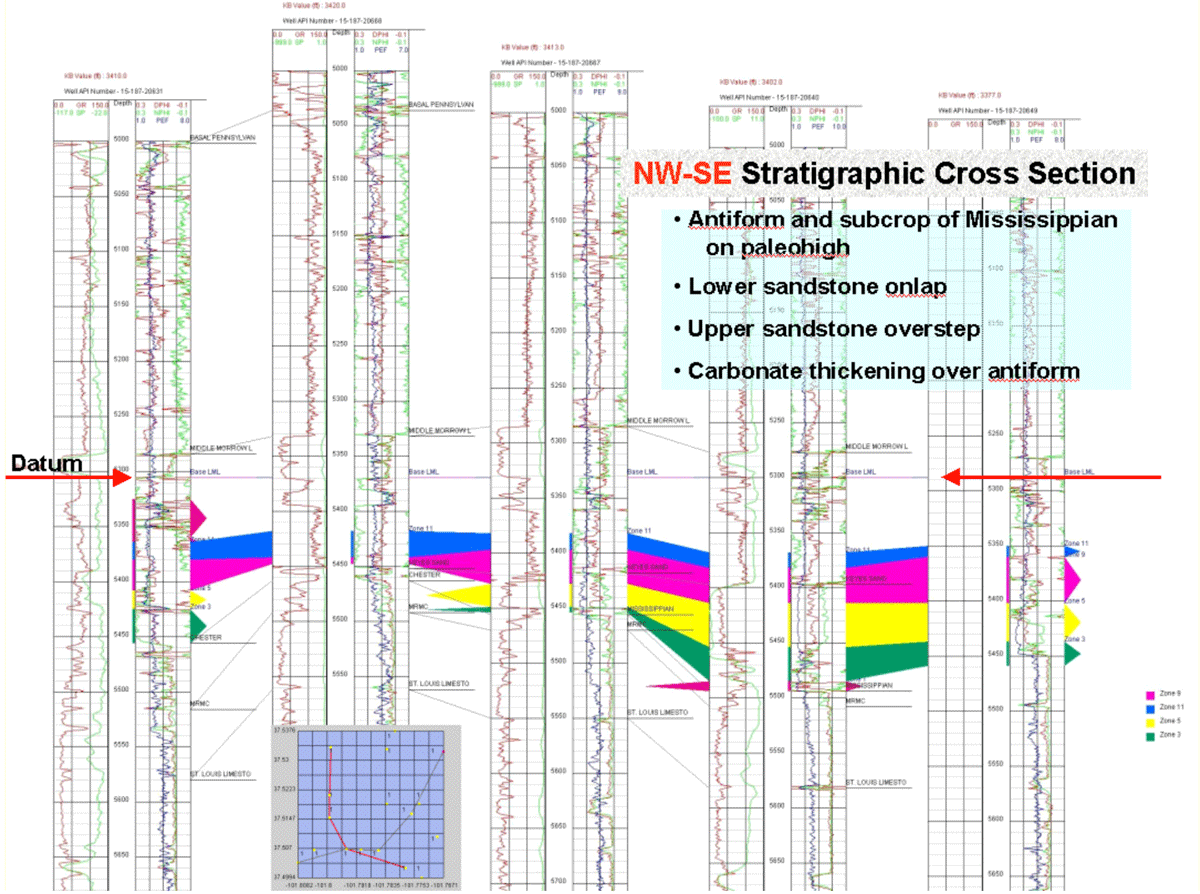

Cross section module builds cross sections on-the-fly. Software reads tops and allows the user to add stratigraphic horizons. User selects structure or stratigraphic datums for display.



Drill-Stem Test Module





Synthetic Seismogram

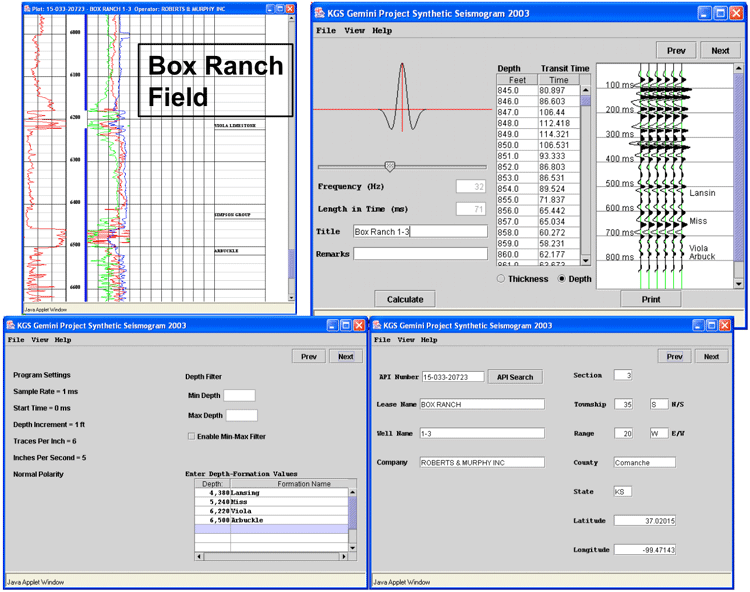

Series of Java applets showing the well profile in upper left, identifying the Viola Limestone and potential pay interval highlighted by the red arrow. The synthetic seismogram is in the upper right. Subsequent dialogs are shown to annotate depths and stratigraphic datums on the time plot.
