Rock Catalog

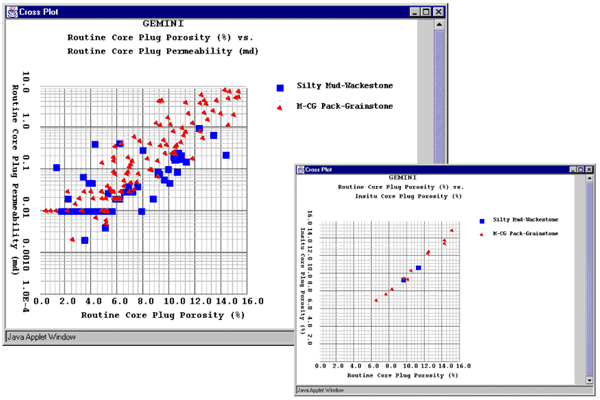

Crossplots for Rock Catalog Page

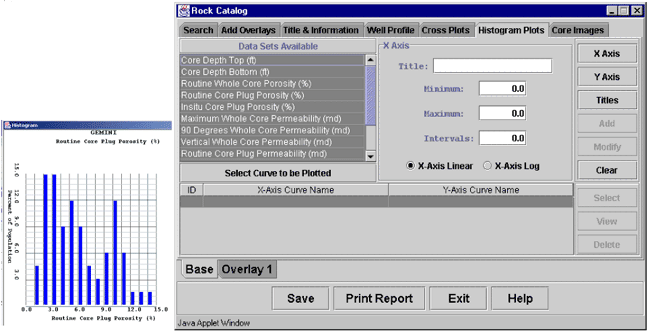

Histograms for any variable


Histogram tabbed area of Rock Catalog is used to generate simple histograms to examine the families of information in an attempt to delineate coherent petrofacies.

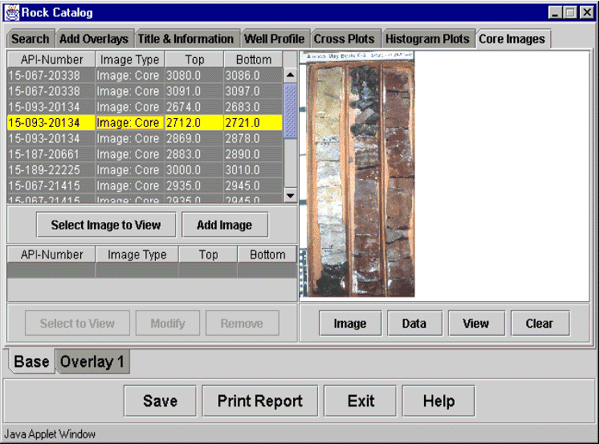

View and Select Available Images


Core images can also be accessed through the Rock Catalog or through the Well Profile alongside the depth.

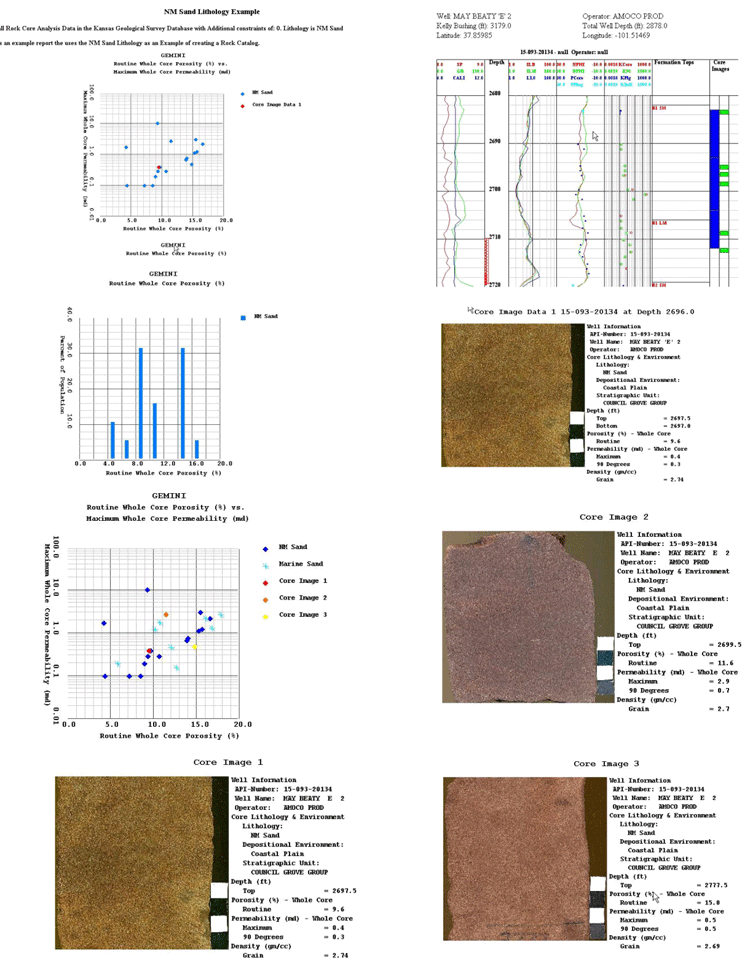

Rock Catalog has a Print Report button that when activated generates web page of charts and images corresponding to what is analyzed. This output is analogous to earlier versions of rock catalogs, but in this case, the user generates the page on-the-fly tailored to the user’s needs.
