Figure 4b

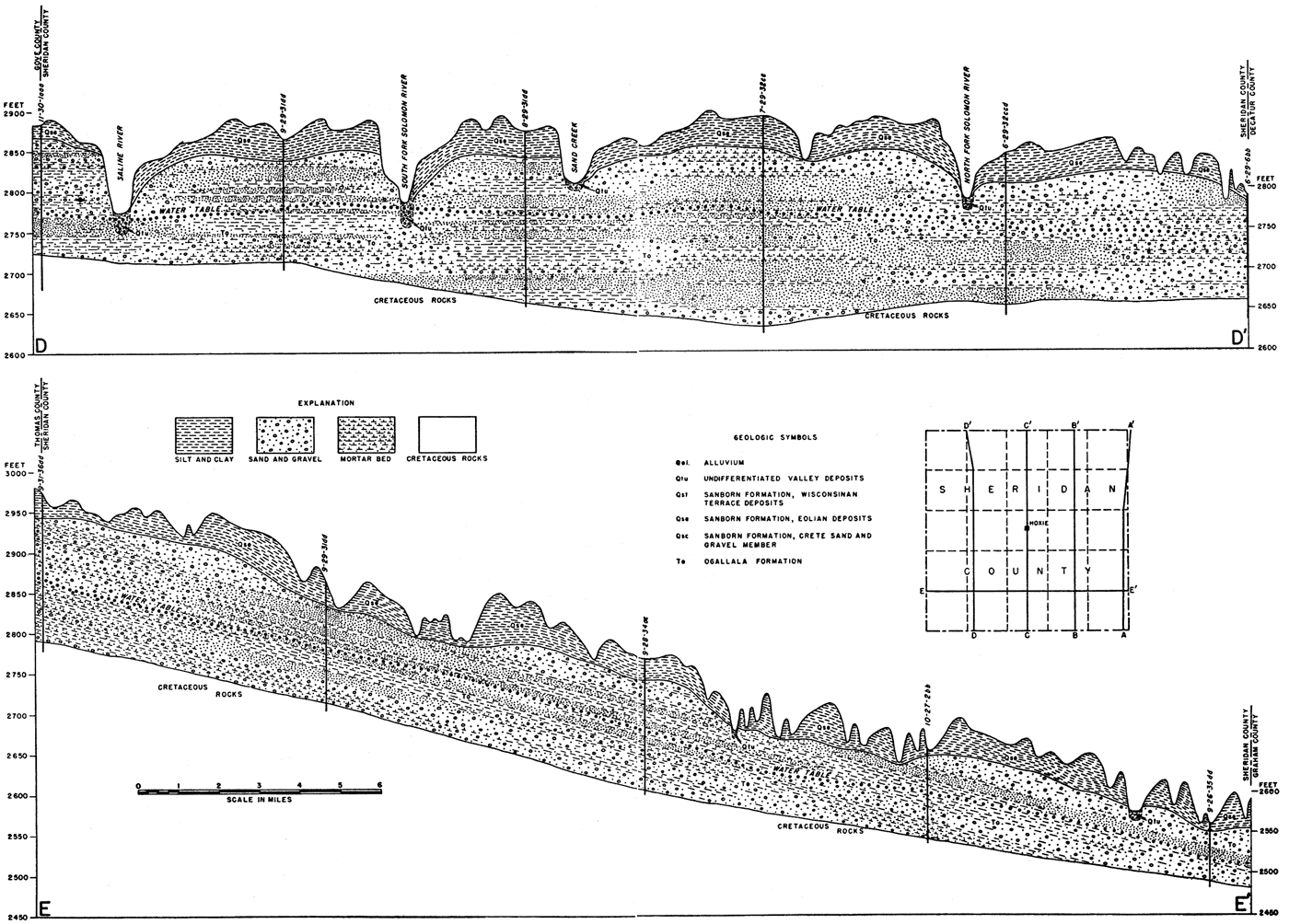

Figure 4B--Geologic cross sections through Sheridan County.
Back to Summary of Stratigraphy...
Kansas Geological Survey, Geology
Placed on web Feb. 10, 2009; originally published May 1956.
