Well Data DB Tables Well Header Information

Well Header Information Search

Applets	Profile http://www.kgs.ku.edu/stratigraphic/PROFILE/ LAS File Viewer http://www.kgs.ku.edu/stratigraphic/LAS/ Synthetic Seismic Profile Plot http://www.kgs.ku.edu/software/SS/ LAS File Viewer with Wavelet Analysis http://www.kgs.ku.edu/stratigraphic/WAVELET/ KIMELEON is an interactive colorlith plot applet http://www.kgs.ku.edu/stratigraphic/KIMELEON/ 2D Cross Plot http://www.kgs.ku.edu/stratigraphic/XPLOT/ 3D Cross Plot http://www.kgs.ku.edu/stratigraphic/3DPLOT/ PfEFFER-java http://www.kgs.ku.edu/software/PfEFFER-java/ Pickett and Hingle Plots http://www.kgs.ku.edu/software/Pf/ Zone Kluster ("ZeKe") - A Depth Constrained Cluster Analysis http://www.kgs.ku.edu/stratigraphic/ZONATION/ Cross Section http://www.kgs.ku.edu/stratigraphic/CROSS_SECTION/ Gamma Ray Cross Section http://www.kgs.ku.edu/stratigraphic/GR_CROSS_SECTION/

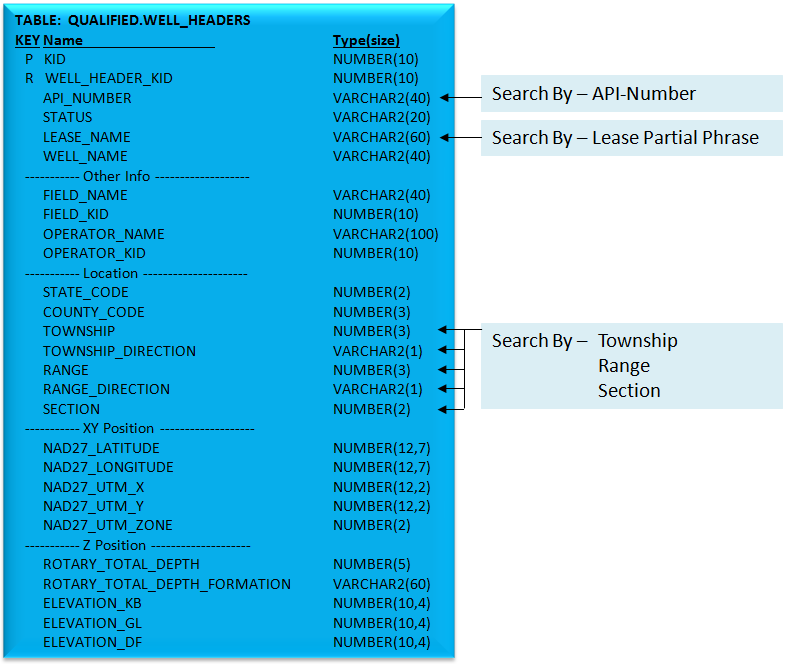

ORACLE PL/SQL	Methods for returning a list of Wells Search by API-Number - 15-189-22225 [Newby 2-28R] http://chasm.kgs.ku.edu/ords/iqstrat.kgs_well_headers_pkg.getXML?sAPI=15-189-22225 Search by Lease Partial Phrase - Newby http://chasm.kgs.ku.edu/ords/iqstrat.kgs_well_headers_pkg.getXML?sLease=Newby Search by Township-Range-Section - T31S-R37W-Sec 28 http://chasm.kgs.ku.edu/ords/iqstrat.kgs_well_headers_pkg.getXML?iTownship=31&sTownship=S&iRange=37&sRange=W&iSection=28 Search by Township-Range - T31S-R37W http://chasm.kgs.ku.edu/ords/iqstrat.kgs_well_headers_pkg.getXML?iTownship=31&sTownship=S&iRange=37&sRange=W
	LAS Files: Log ASCII Standard (LAS) version 2.0 Files Database Table PL/SQL Stored Procedures for access to the LAS File Locations & Log Curve Information.
	TOPS DATA: Well Tops Database Table PL/SQL Stored Procedures for access to the Well Tops.
	CORE DATA: Measured Core Database Table PL/SQL Stored Procedures for access to the Measured Core Data.
	CORE Image Files: Core Images Database Table PL/SQL Stored Procedures for access to the Core Image File Location.
NOTE:	http://chasm.kgs.ku.edu/ords/ KGS ORACLE Database iqstrat the ORACLE User IQSTRAT kgs_well_headers_pkg the KGS Well Information PL/SQL Package getXML the Method for retrieving the XML data

Author: John R. Victorine jvictor@kgs.ku.edu The URL for this page is http://www.kgs.ku.edu/stratigraphic/JAVA_SRC/ORACLE-PLSQL/Well_Data/index.html
