HELP: GeoReport (Comments/Remarks/Notes) Data Entry Dialog

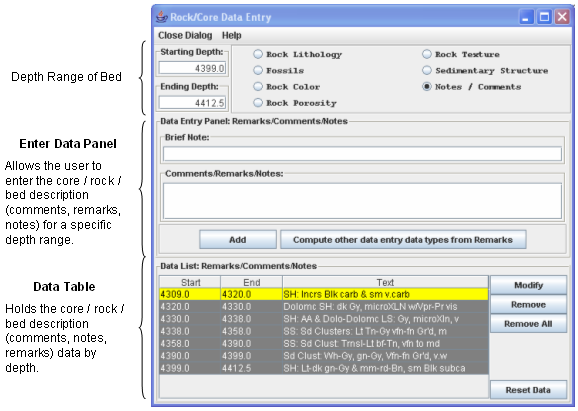

This dialog allows the user to enter core / rock / bed descriptions by depth. The Comments/Remarks/Notes text field allows the user to enter any description in a free format. The user can then select the "Compute other data entry data types from Remarks" button to parse each bed description into other rock image plot tracks (lithology, texture, fossils, sedimentary structures, and rock color). A series of rock description (lexicons) xml (Extensible Markup Language) files were created to parse the description text into each plot track. A series of "standard" abbreviation lists were created for each lexicon to convert the geologist reports into the individual rock image plot types.

Select a button from the following list to view Help pages.
		Add Core / Rock / Bed Description ( Comments / Remarks / Notes).
		Modify Core / Rock / Bed Description ( Comments / Remarks / Notes).
		Remove Core / Rock / Bed Description ( Comments / Remarks / Notes).
		Compute other image tracks from the Core / Rock / Bed Description List.

	Parse Rock Image Tracks from Remarks Text
			Parse Lithology Composition from Text
			Parse Texture/Lithology from Text
			Parse Fossils from Text
			Parse Sedimentary Structures from Text
			Parse Rock Color from Text

Author: John R. Victorine jvictor@kgs.ku.edu
