HELP: GeoReport (Comments/Remarks/Notes) Data Entry Dialog Compute Other Rock Images Tracks

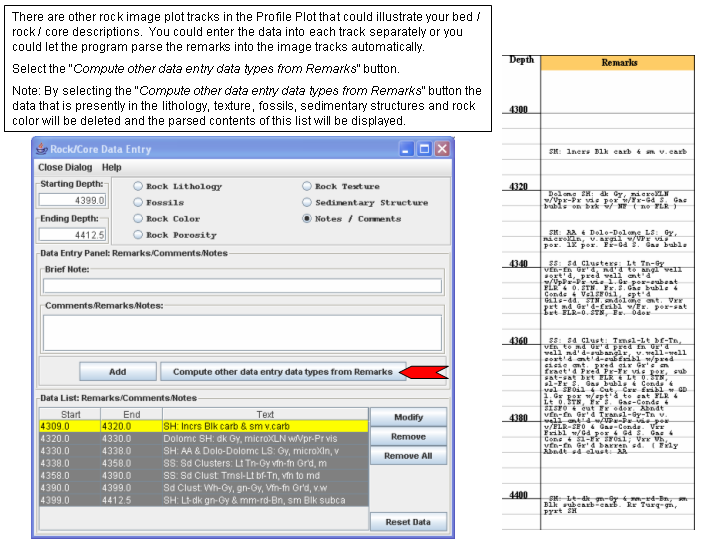

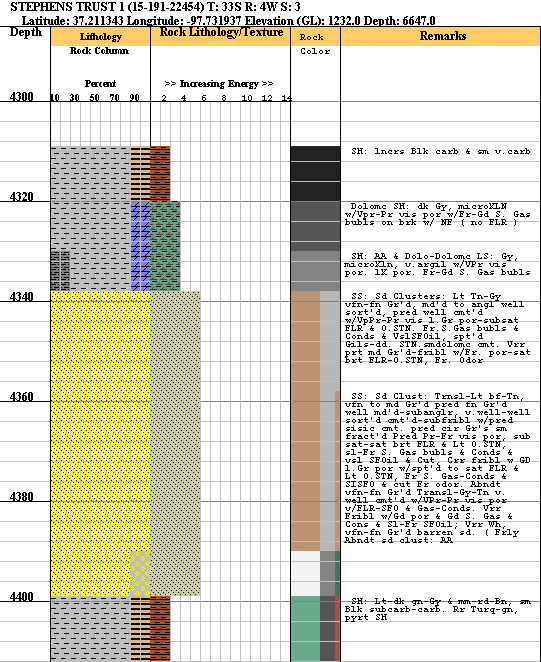

Notice that only the Lithology, Texture and Rock Color Image Tracks are filled. That is because the Remarks List did not contain any fossil or sedimentary structures descriptions. The parse Java class will search for any entries in the Remarks List and parse data into the Lithology, Texture, Fossils, Sedimentary Structures and Rock Color Image Tracks. The parse Java class uses a series of rock description xml (Extensible Markup Language) files to build the other image tracks.

Author: John R. Victorine jvictor@kgs.ku.edu
