CO2 II Tools
Database Scripts
Injection Plot


Injection Plot

Applet
Injection Plot Applet - Example: Wellington KGS 2-32 (15-191-22770)
http://www.kgs.ku.edu/PRS/Ozark/Software/production/Production.html?sType=INJECTION&sKID=1044998939

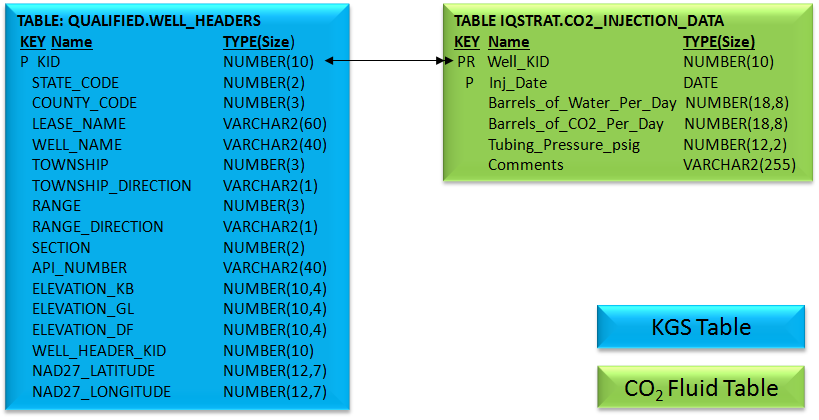

ORACLE PL/SQL Query for Brine & CO2 Injection data for the Wellington KGS 2-32 (15-191-22770)
http://chasm.kgs.ku.edu/ords/iqstrat.co2_injection_pkg.getXML?sINJ=1044998939
Returns XML (Extensible Markup Language), which is parsed and plotted.

NOTE:
http://chasm.kgs.ku.edu/ords/ KGS ORACLE Database
iqstrat the ORACLE User IQSTRAT
co2_injection_pkg Brine & CO2 Injection Data PL/SQL Package
getXML the Method for retrieving the XML data
?sINJ=1044998939KID for the Wellington KGS 2-32 (15-191-22770)


Author: John R. Victorine jvictor@kgs.ku.edu

The URL for this page is http://www.kgs.ku.edu/PRS/Ozark/JAVA_SRC/ORACLE-II-PLSQL/Fluid/injection.html
