Stratigraphic Architecture of Lower to Middle Pennsylvanian Coal-beds in the Forest City Basin of Northeastern Kansas

Kansas Geological Survey

Image at: 750 pixels, 1500 pixels	Image at: 750 pixels, 1500 pixels

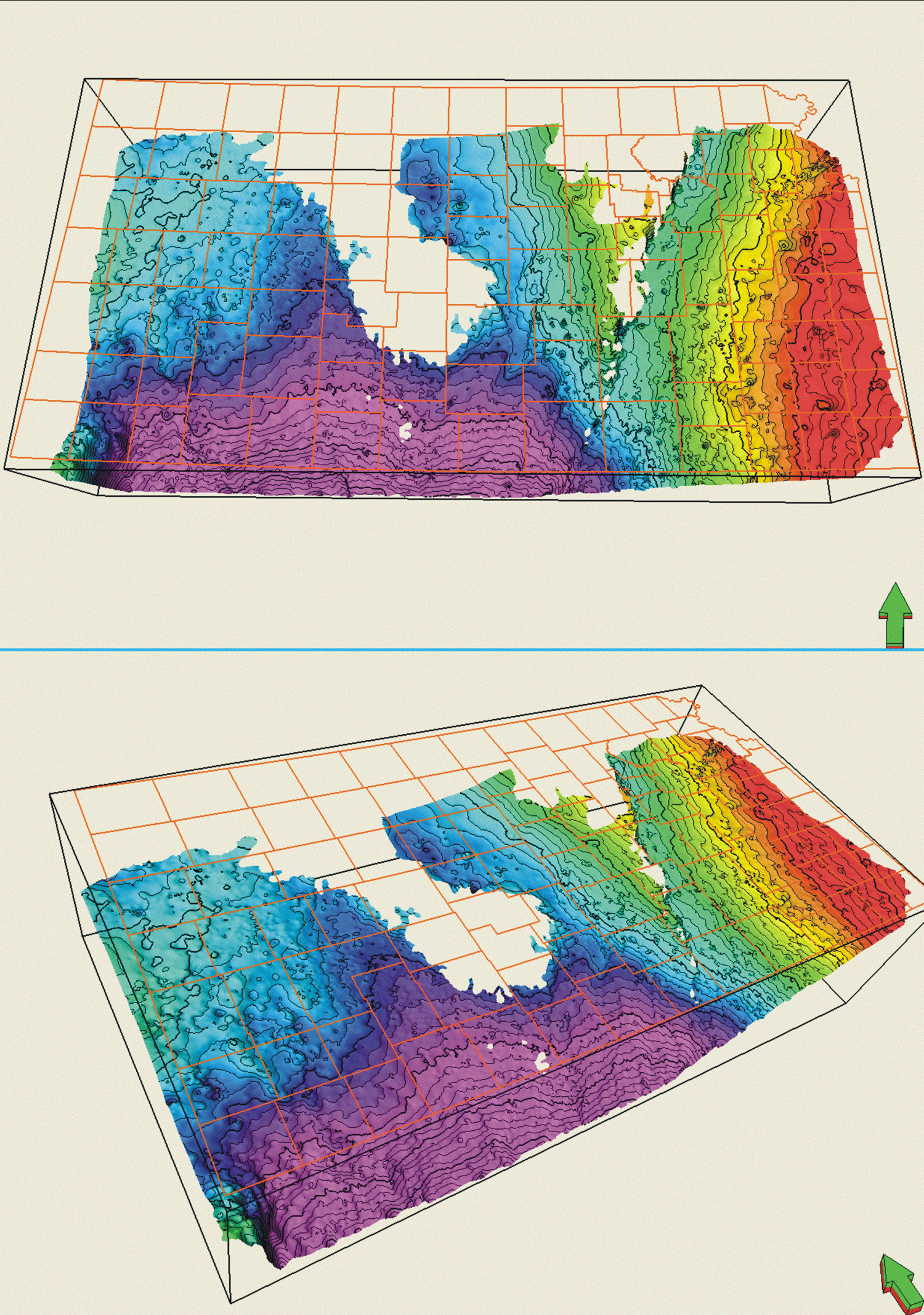

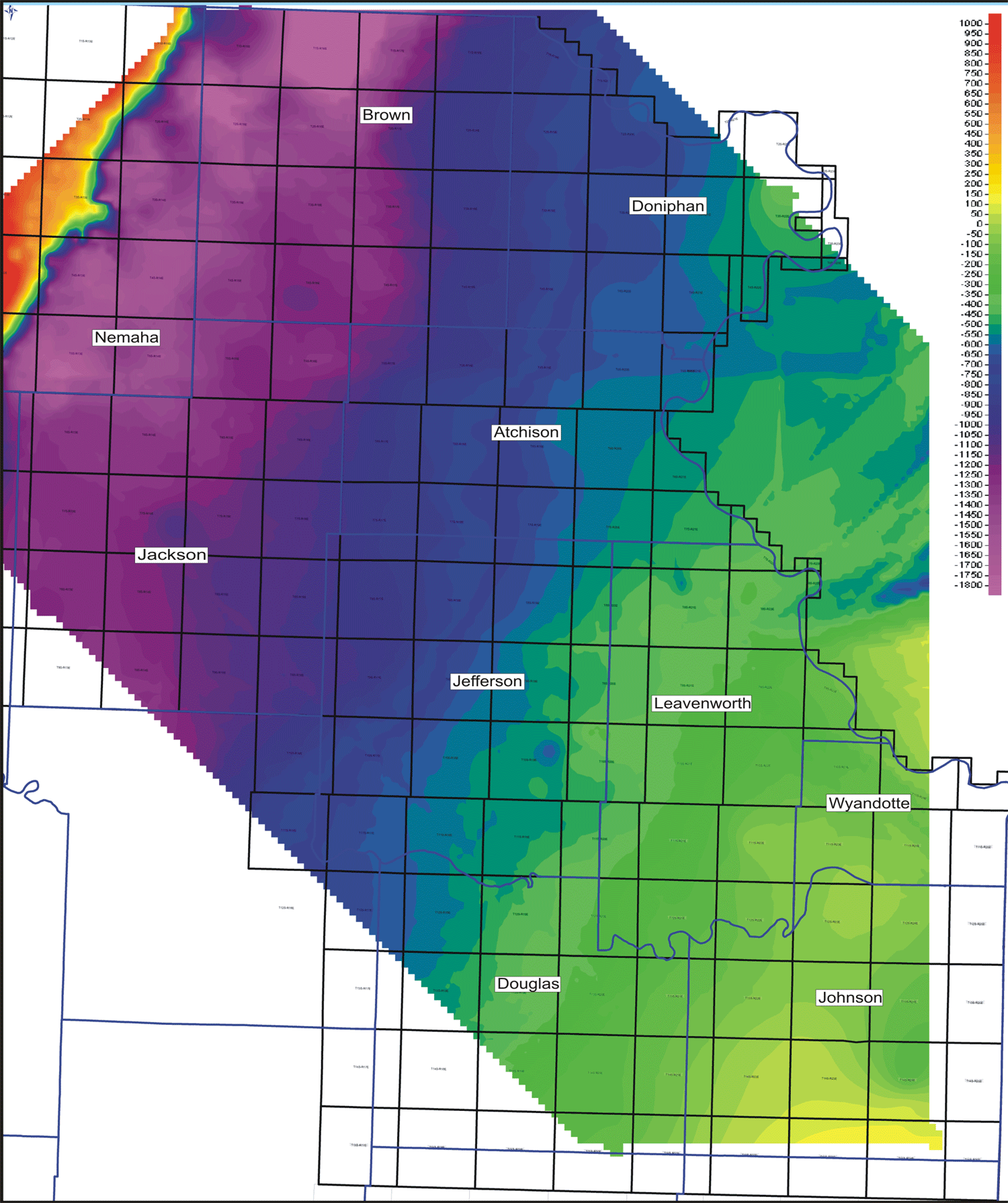

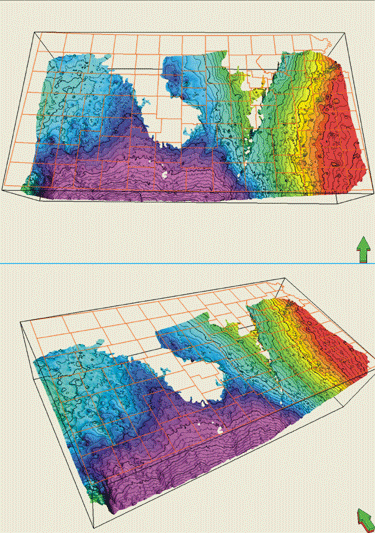

Mississippian structure map of northeastern Kansas (left) and 3-D views of the same surface on the right.

Note a general dip to the WNW-NW and removal of Mississippian strata on the Nemaha uplift.







---
