Appendix B

Generalized Sections at the Drill Locations

Constructed on the basis of descriptions of the cuttings. The sections also show the oxidation state of the rock and the intervals that contain copper mineralization.

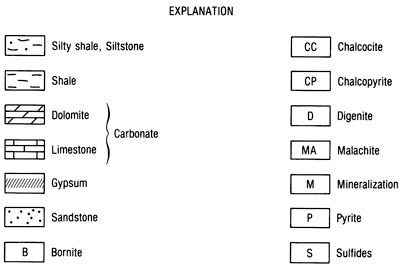

meaning of symbols used to describe rock types and mineralization

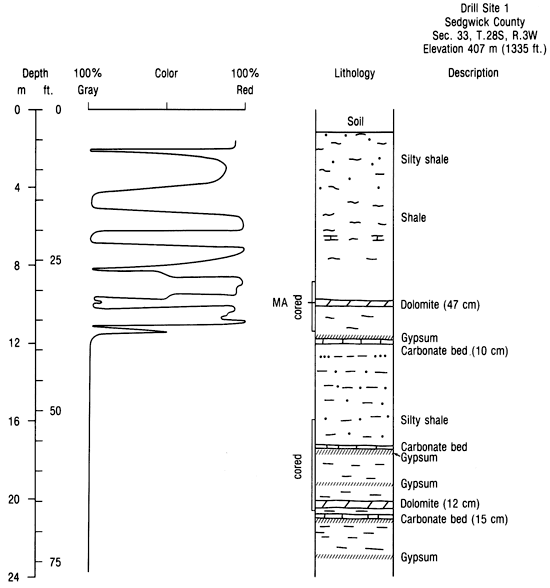

Drill Site 1

Drill Site 2

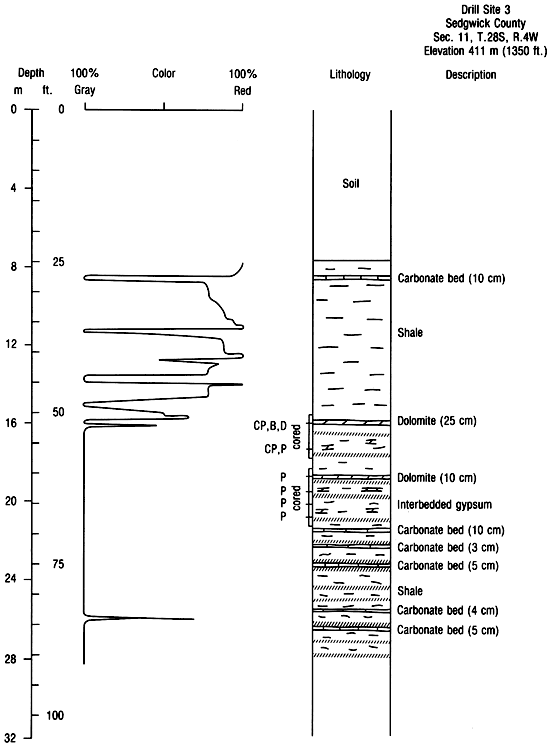

Drill Site 3

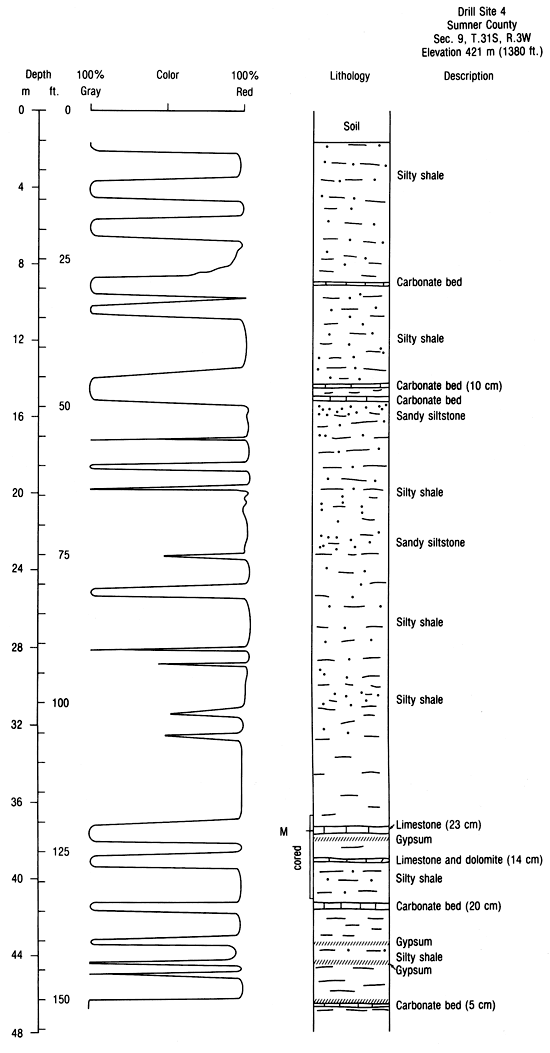

Drill Site 4

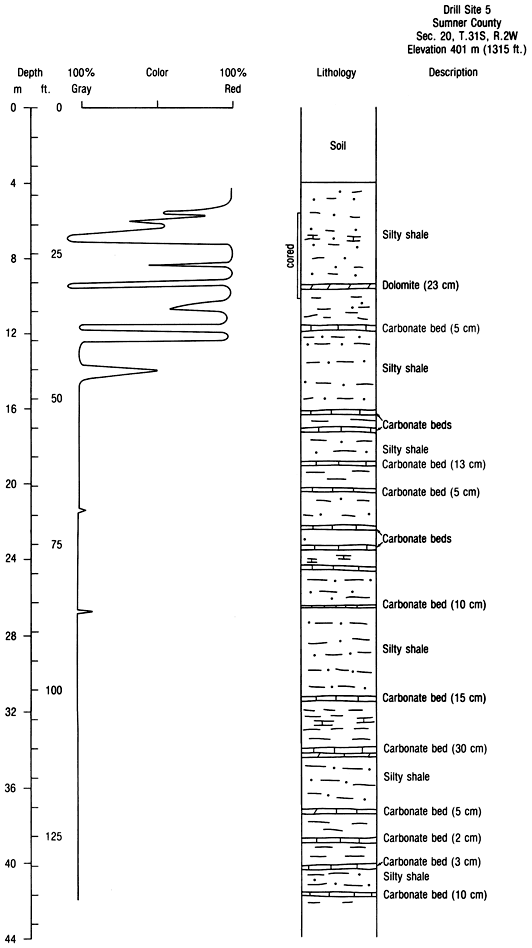

Drill Site 5

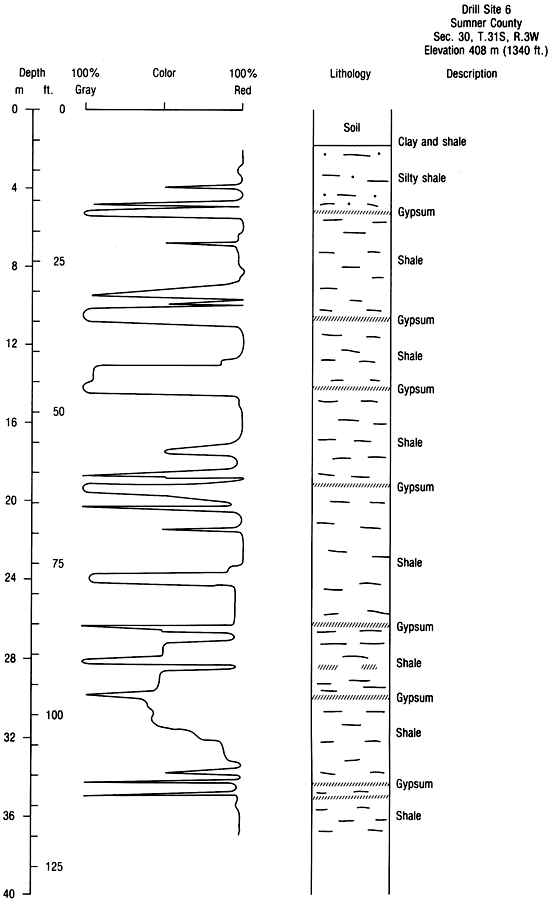

Drill Site 6

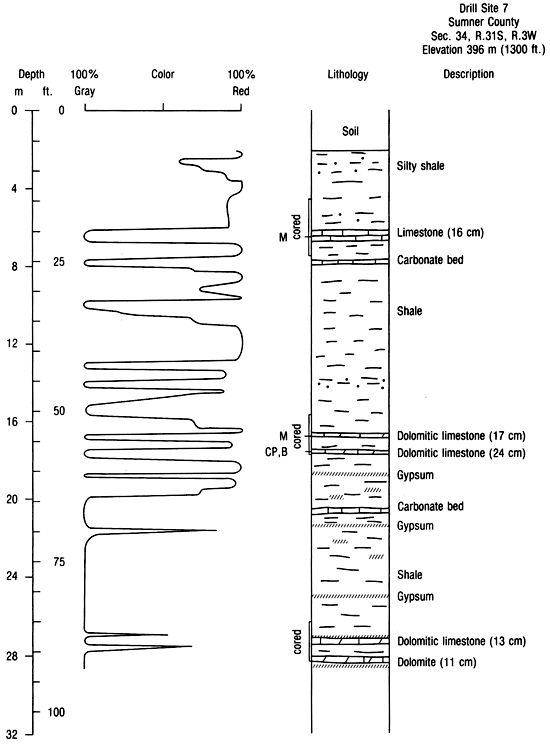

Drill Site 7

Drill Site 8

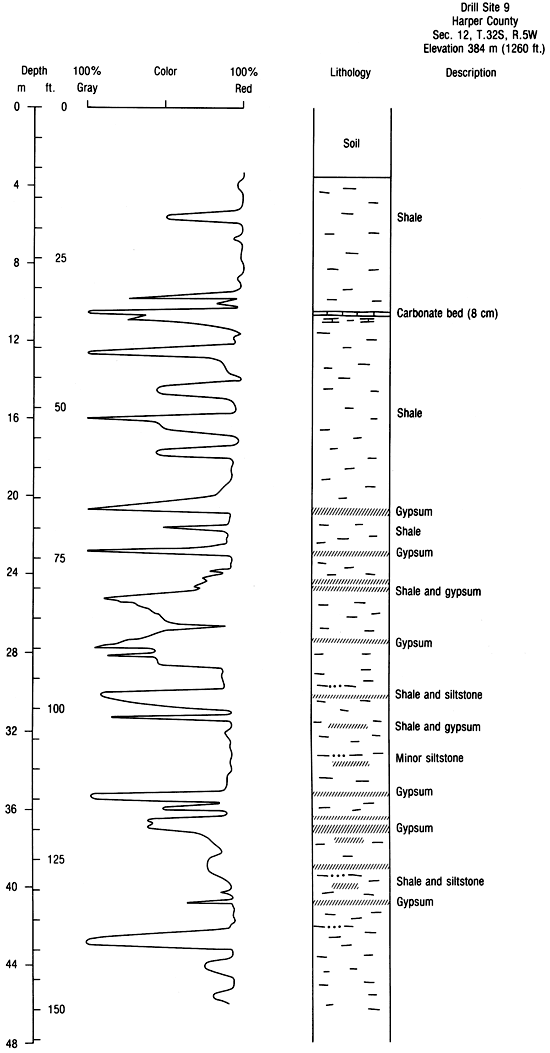

Drill Site 9

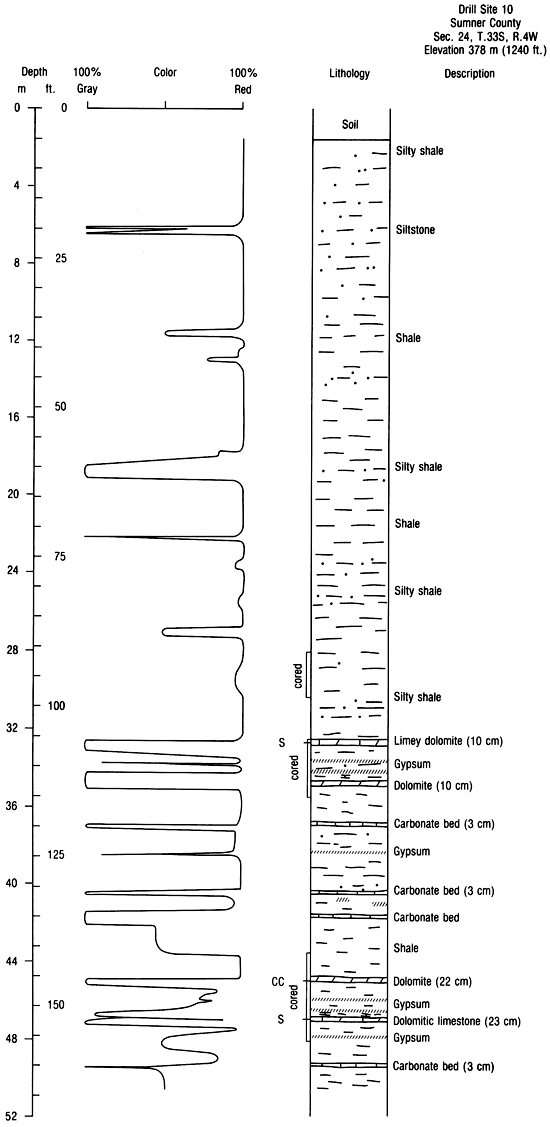

Drill Site 10

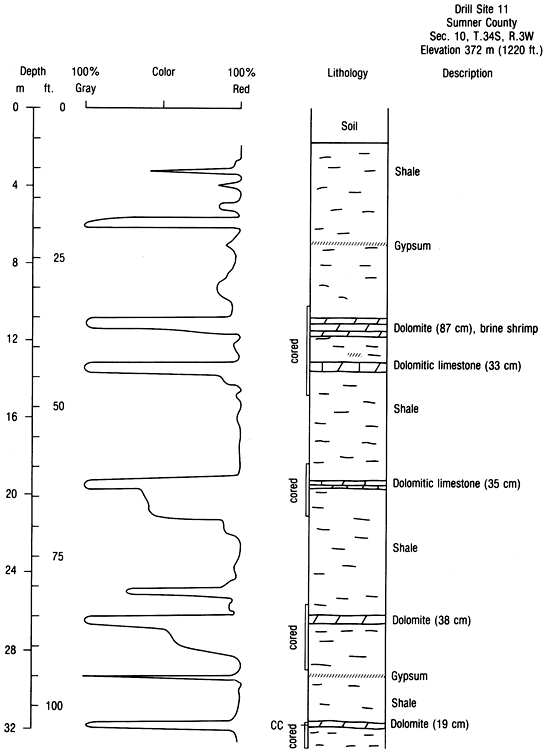

Drill Site 11

Drill Site 12

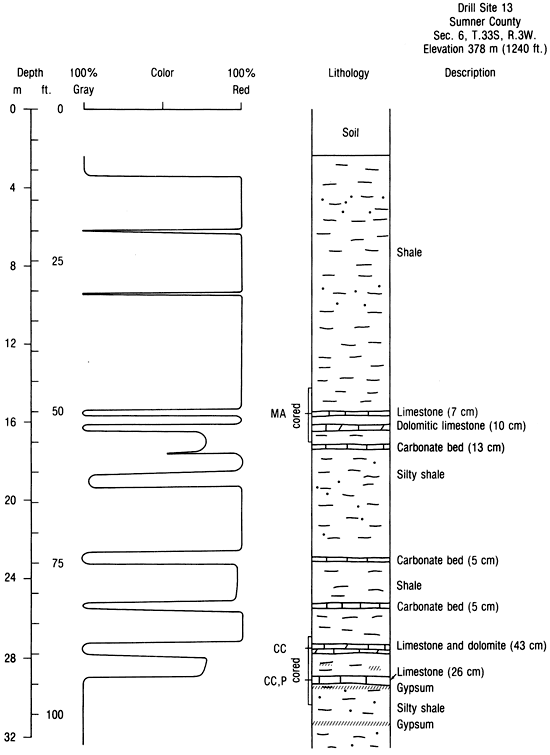

Drill Site 13

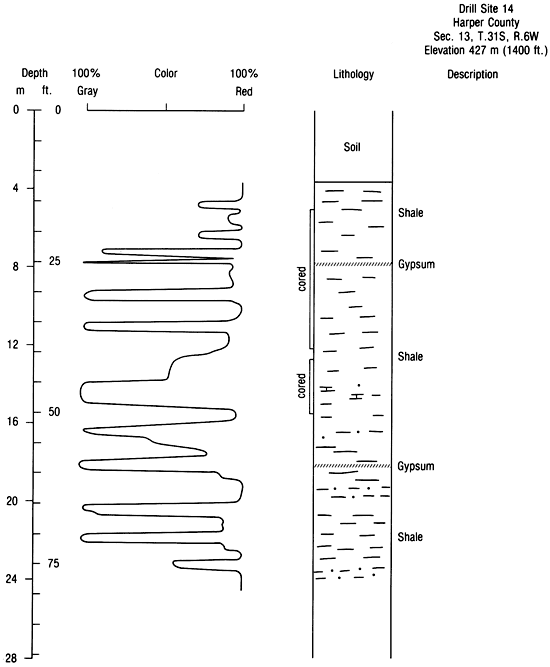

Drill Site 14

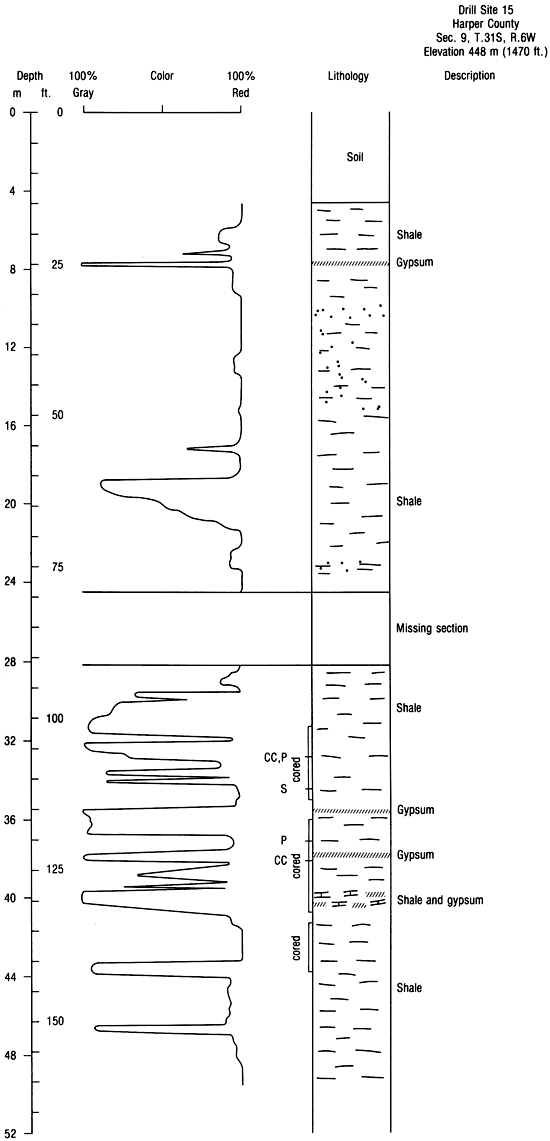

Drill Site 15

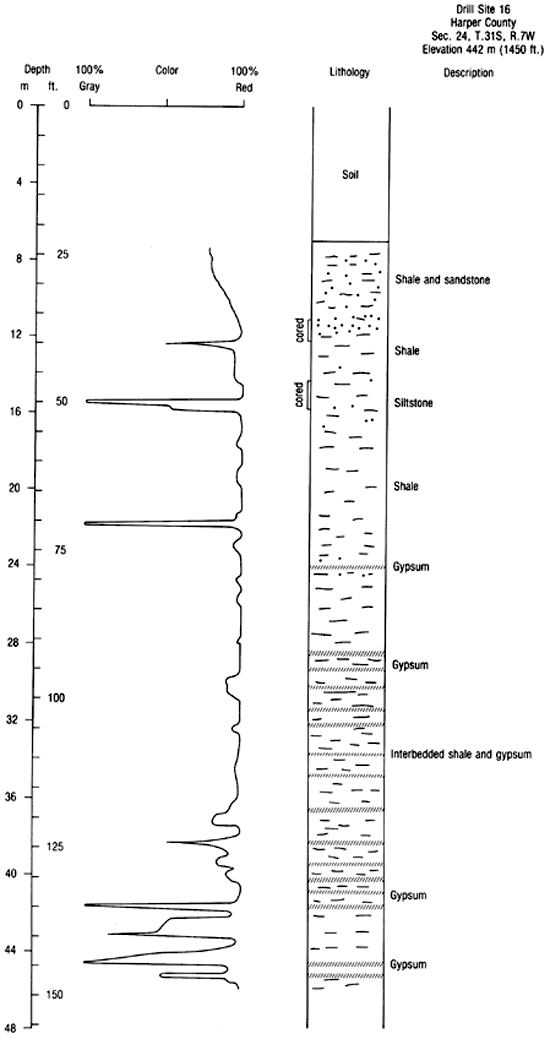

Drill Site 16
