Figure 4

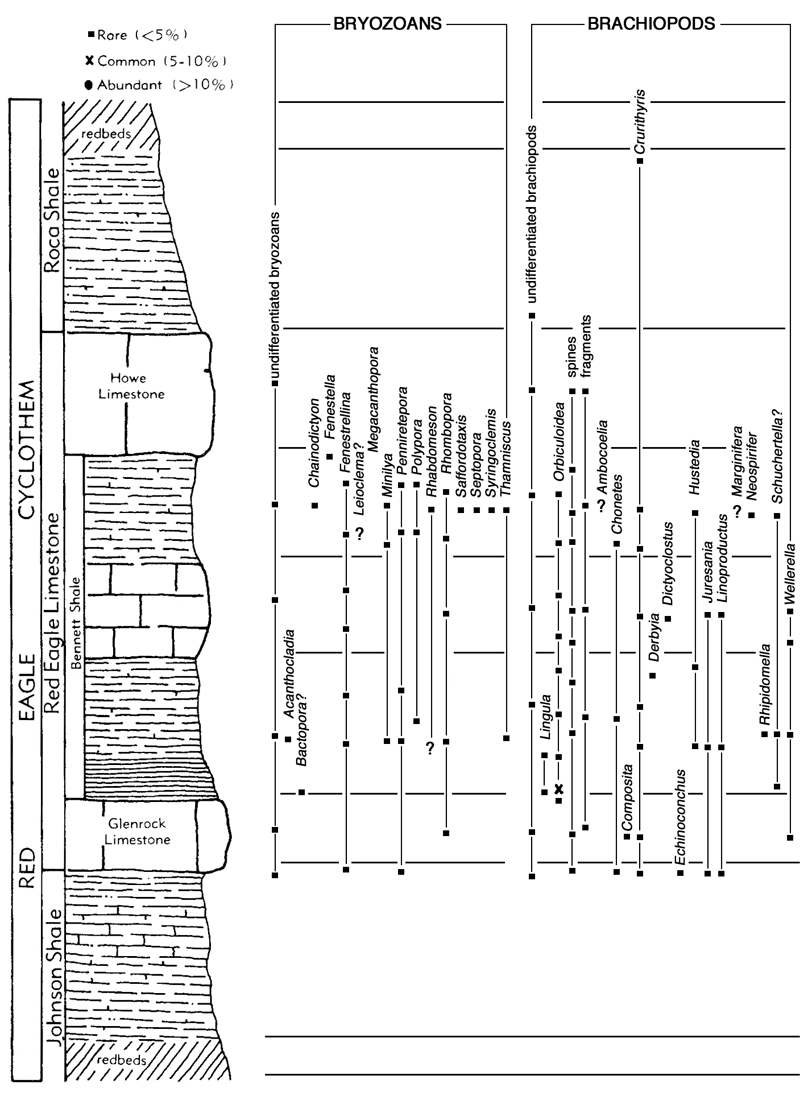

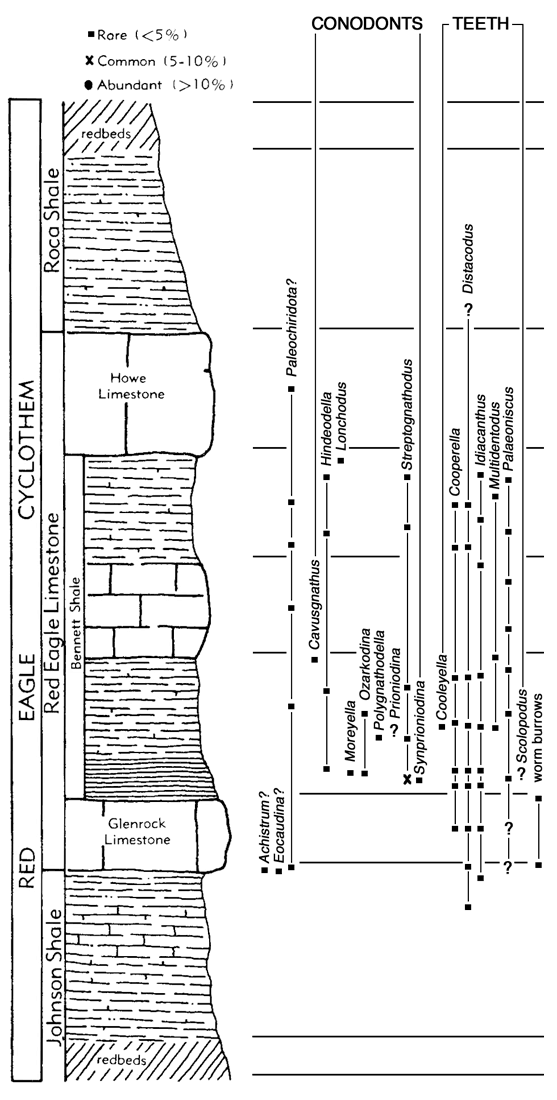

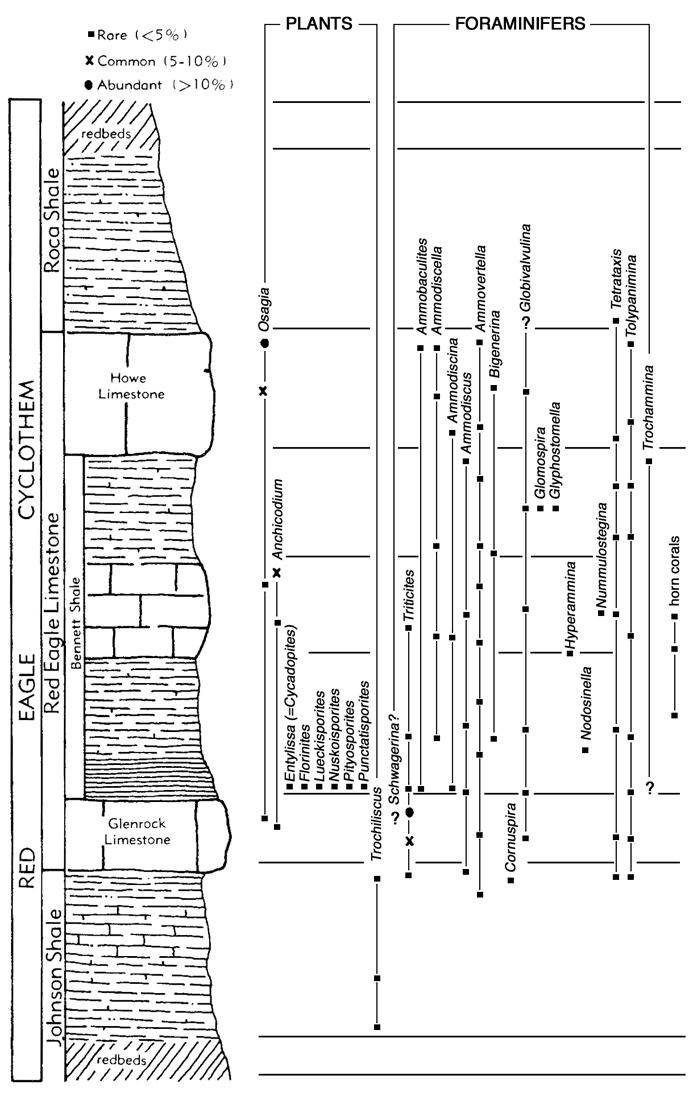

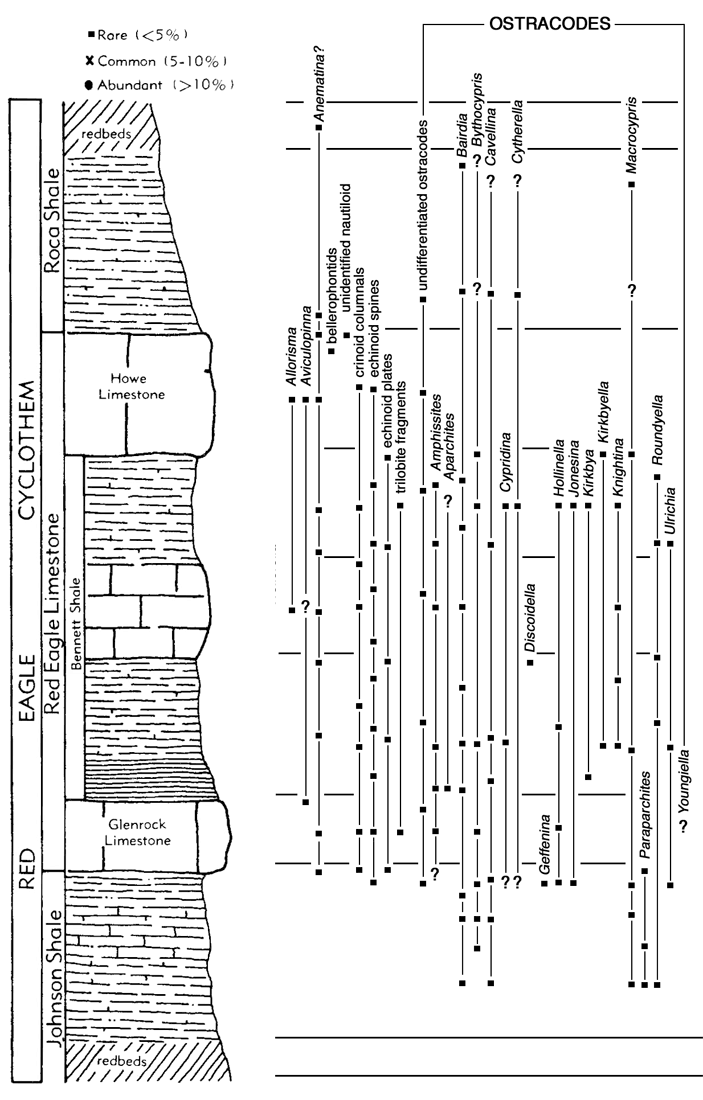

Figure 4.--Chart of stratigraphic position of Red Eagle cyclothem fossils. Abundance is estimate of percentage of rock bulk.
A large Acrobat PDF version of this figure is available (688 kB), formated as one complete chart.
