Kansas Geological Survey, Bulletin 119, Part 2, originally published in 1956
Back to main article...

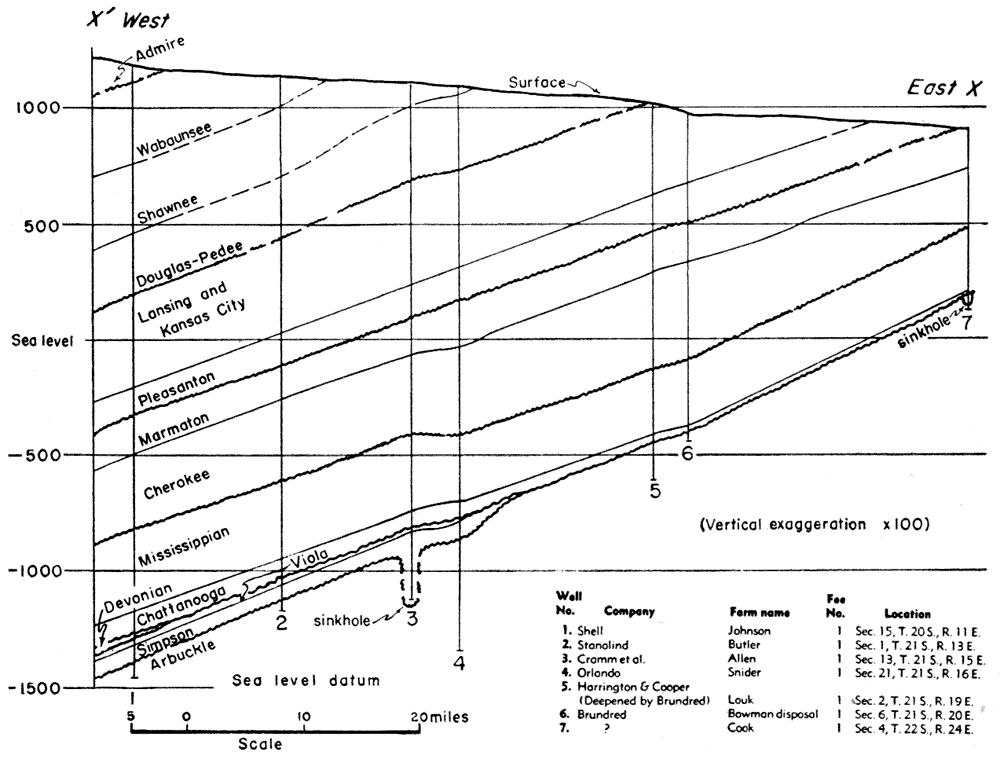

Figure 6--East-west cross section from Linn County to Lyon County, Kansas, showing two Simpson filled sinkholes (adapted from Lee and Merriam, 1954).

Cross section; thicknesses are consistant from West to East; sinkhole at location 3; Simpson pinches out between 4 and 5.


Back to main article...

Kansas Geological Survey, Geology
Placed on web Aug. 9, 2006; originally published in 1956.
