Kansas Geological Survey, Open File Report 98-48
GEMS Site Borehole GPR, continued

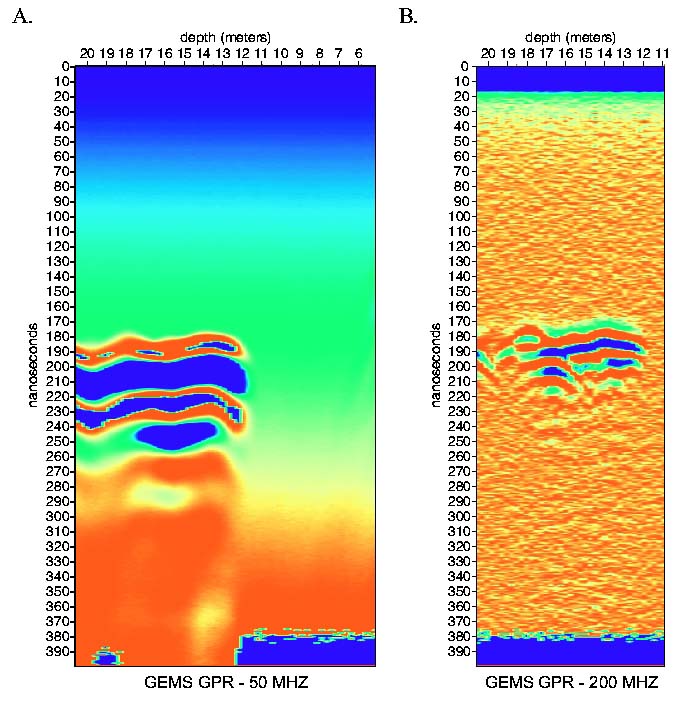

Figure 6

Survey 2 GPR zero-offset profiles using (a) 50 MHz, and (b) 200 MHz, borehole GPR antennas. The vertical axis is one-way travel-time in nanoseconds, and the horizontal axis is depth from the well-top. The antennas were 9.66 m apart. A small version of this figure is available.
