Kansas Geological Survey, Open File Report 98-48
GEMS Site Borehole GPR, continued

Figure 1

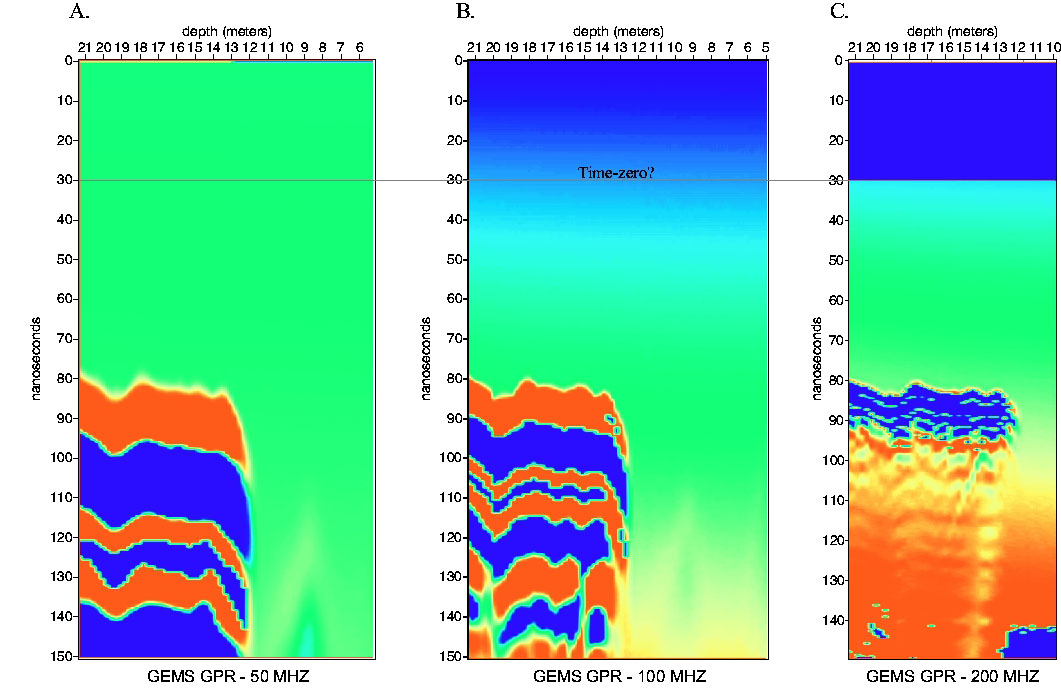

Survey 1 GPR zero-offset profiles using (a) 50 MHz, (b) 100 MHz, and (c) 200 MHz borehole GPR antennas. The vertical axis is one-way travel-time in nanoseconds, and the horizontal axis is depth from the well-top. The antennas were 5.39 apart. A small version of this figure is available.
