Kansas Geological Survey, Open-File Report 96-11

Distribution and thickness of the Cimarron Salt (Lower Permian) in southern Stafford and northern Pratt Counties, Kansas

by Alex Martinez, Neil L. Anderson, and Tim Carr

Introduction

The Cimarron Salt (Lower Permian) is a relatively thin rock salt stratigraphically situated within the upper part of the Ninnescah Shale (Fig. 1). The Cimarron Salt is present only in the south-central and southwestern regions of Kansas. However it extends southward into Oklahoma where it is much thicker and more expansive (Jordan and Vosburg, 1963). In Kansas, the salt attains maximum thicknesses of approximately 76 m (250 ft) in Clark and Comanche Counties (Fig. 2). Locally, the Cimarron salt has been extensively leached and is believed to be a possible source for ground water contamination in portions of Kansas (Cobb, 1980; Cobb, 1983; Gillespie and Hargadine, 1992).

Figure 1. Generalized columnar section of geologic units in study area (Gillespie, 1992)

System Series Geologic Unit Maximum
thickness,
in feet Physical Characteristics

Quaternary Pleistocene Undifferentiated
Pleistocene deposits 300 Unconsolidated deposits of sand
and gravel with interbedded
lenses of clay, silt, and caliche.
Windblown silt (loess) and dune
sand occur at the surface over
most of the area. Stream-laid
deposits (alluvium) of late
Quaternary age range from clay to
gravel and occur along the South
Fork Ninnescah River valley

Permian Lower Permian Salt Plain Formation 300 Reddish-brown sandy siltstone
nad fine-grained sandstone

Harper Sandstone 250 Brownish-red siltstone with a few
thin beds of silty sandstone

Stone Corral Sandstone 20 White and light-gray anhydrite
and dolomite

Ninnescah Shale 400 Red and grayish-green shale,
siltstone, and very fine-grined
silty sandstone. A 20 to 50 foot
thick salt member, when present,
is about 50 feet below the top
of the formation

Wellington Formation 500 Calcareous gray and blue shale,
containing thin beds of anhydrite,
gypsum, and limestone. The
Hutchinson Salt Member, when
present, is near the middle of
the formation

Figure 2. Broad-scale map of the Cimarron Salt with the location of Stafford and Pratt Counties highlighted (modified from Bayne, 1972).

The study discussed here, centered on southern Stafford and northern Pratt Counties, was undertaken in order to improve our understanding of the north-eastern edge of the salt body (Figures 2 and 3). The project involves using more than 500 well logs to map the extent and thickness of the Cimarron Salt.

Figure 3. Location of the study area.

Well log criteria and mapping

Maps of the salt body were constructed using approximately 500 geophysical well logs. Several factors influenced the selection of well logs. The logs had to include both the overlying Stone Corral Formation and the underlying Wellington Formation (Fig. 1). Also, gamma ray, guard and neutron logs were used whenever possible (instead of older electric logs). A well density of one well per square mile was deemed adequate for most areas. In areas where residual salt is very thin, well density was increased to better determine its extent. Figure 4 shows a sample log and the geological horizons associated with it.

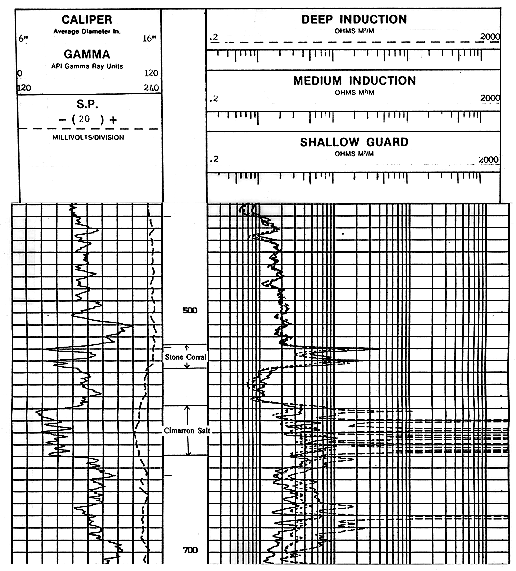

Figure 4. Gamma and induction logs from Deutsch Oil Co. #2-27 Scholes (27-27S-11W).

The horizon information from the well data were entered into a spreadsheet and then were contoured using the program Surface III on a workstation.

Results

The location and thickness of the Cimarron Salt as mapped in southern Stafford and northern Pratt counties are shown in Figure 5. In the study area, the Cimarron Salt varies in thickness over short distances and has an irregular edge. Remaining salt bodies have weak NW-SE to NE-SW trends. A thin residual of salt is preserved in the extreme southwestern portion of Stafford County. Earlier studies (Bayne, 1972; Fig. 2) had the zero edge of the salt further to the west on the eastern edge of Stafford County (Fig. 5).

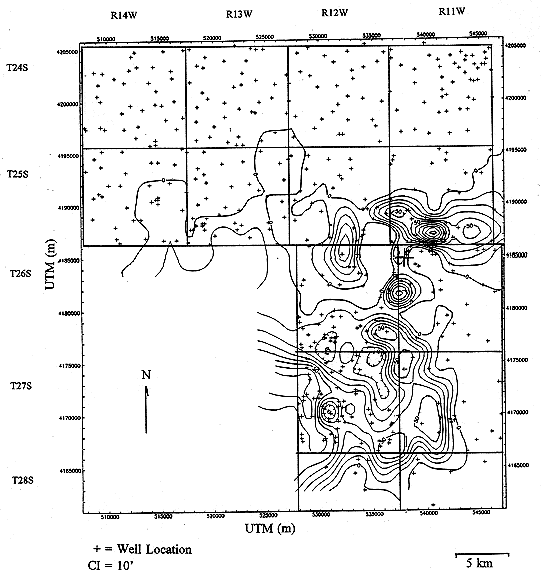

Figure 5. Isopach map of the Lopwer Cimarron Salt.

The top of the overlying Stone Corral Formation was also mapped (Fig. 6). A linear trend analysis was performed on these data. The results of the removal of the linear trend are shown in Figure 7. The areas of residual highs correspond closely to the overall shape of the underlying salt body, making trend analysis a possible tool for discernment of underlying salt bodies.

Figure 6. Contour map of the top of the Stone Corral Formation (relative to sea level).

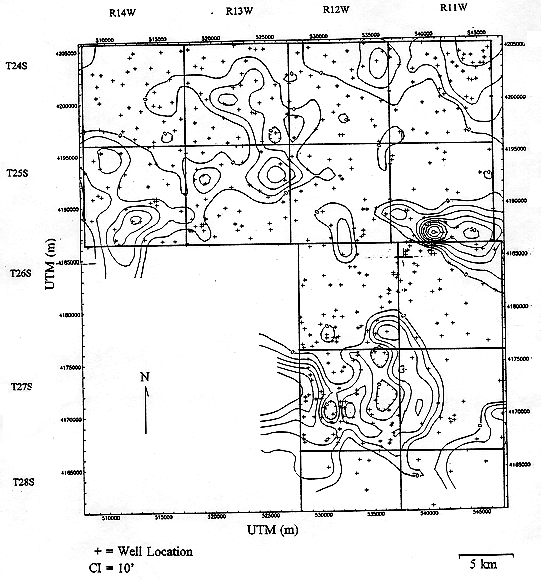

Figure 7. Positive residuals of linear trend analysis of the top of the Stone Corral Formation.

Conclusions

The distribution of the Cimarron Salt in Kansas is important because the salt is a possible source for ground water contamination due to leaching. The results of the study indicate that the salt extends further to the east than previously thought, has an irregular edge, and that remaining salt bodies have weak NW-SE to NE-SW trends. The overlying Stone Corral may be used as an indicator of the presence or absence of the Cimarron Salt, at least along its perimeter.

Acknowledgements

The authors wish to thank J. Gillespie of the USGS for the use of well log information from an earlier study USGS in the area.

Online data

The data used in theis project is available for downloading. Two ASCII versions are available--one comma-delimited and one tab-delimited. In each of these files, missing values are indicated by -999.

References

Bayne, C. K. (1972). Supplemental areas for storage of radioactive wastes in Kansas: KGS Special Distribution Publication, No. 60, p. 1-20.

Cobb, P. M. (1980). The distribution and mechanisms of salt water intrusion in the fresh water aquifer and in Rattle Snake Creek, Stafford Co., KS: KGS Open File Report 80-17, pp. 1-176.

Cobb, P. M. (1983). Current and possible future hazards to irrigation in Kansas: an overview of salt water intrusion from Permian formations: KGS Open File Report 83-3, pp. 1-12.

Gillespie, J. B., and G. D. Hargadine (1992). Geohydrology and saline ground water discharge to the south fork Ninnescah River in Pratt and Kingman Counties, south=central Kansas: Unpublished USGS Water Resources Investigations Report, pp. 1-93.

Jordan, L. and D. L. Vosburg (1963). Permian salt in the Anadarko Basin, Oklahoma and Texas: Oklahoma Geological Survey Bulletin No. 102, pp. 1-76.
