Reservoir Characterization of Mississippian St. Louis Carbonate Reservoir Systems in Kansas, Stratigraphic and Facies Architecture Modeling

Kansas Geological Survey
Open-file Report 2003-27

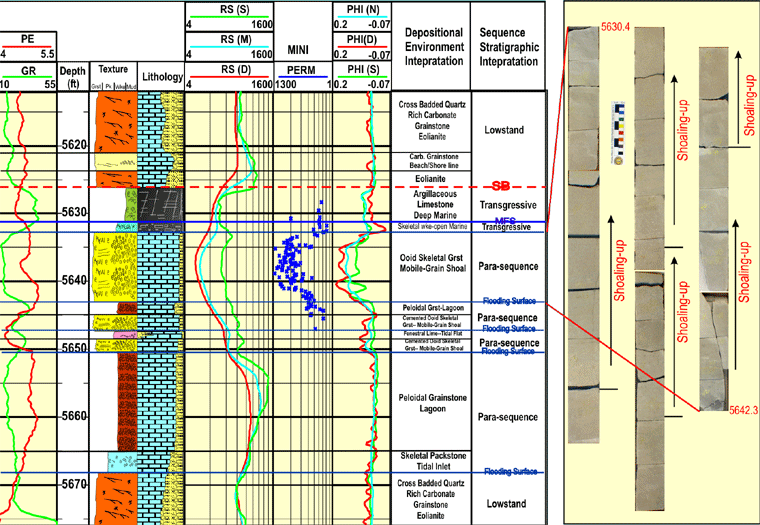

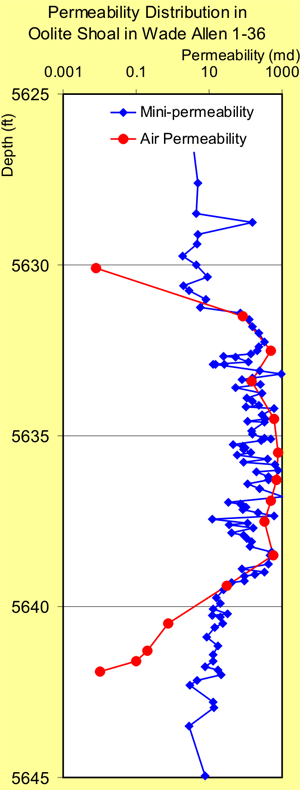

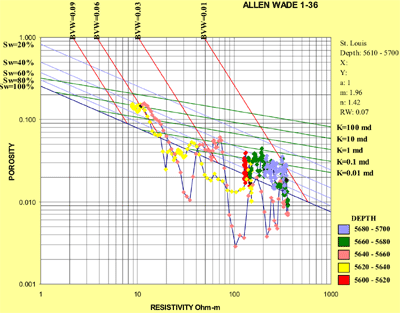

The pay zone, oolitic shoal interval, has a log response with the lowest RT value and highest porosity on log. Porosity shows an exponential relationship with permeability based on available data. Porosity distribution the ranges from 0.02 to 0.15. However, the distribution of permeability displays high heterogeneity, from less than 0.01 to more than 1,000md.
