Oomoldic Reservoirs of Central Kansas, Controls on Porosity, Permeability, Capillary Pressure and Architecture


Kansas Geological Survey
Open-file Report 2002-48

Oolite Reservoirs - Victory Field

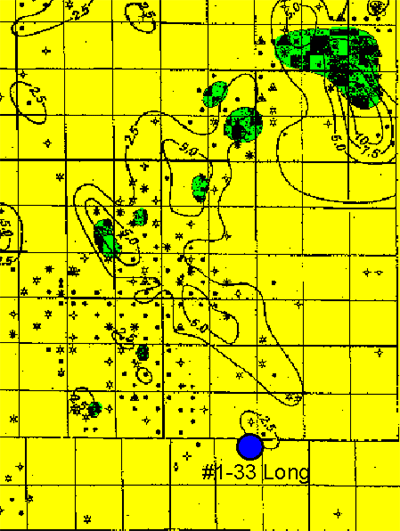

Sniabar Limestone Isopach and Production

Sniabar Limestone in Victory Field is an oolitic grainstone reservoir consisting of a succession of porous oolite beds separated by tighter non-oolitic lithologies. Location of the productive Long 1-33 well (drilled after creation of this map) is shown. Note pod of reservoir map has now been slightly enlarged and the Long 1-33 is located in a downdip position.

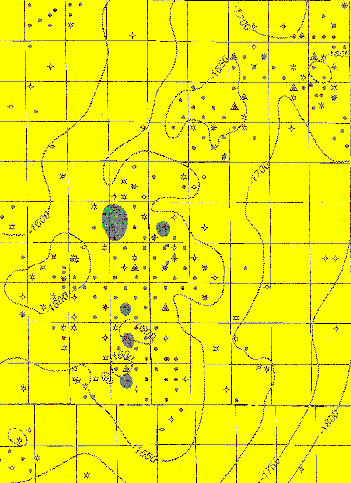

Canville Limestone Structure

Structure map on top of the Canville Limestone in the Victory Field area in Haskell County, Kansas annotated of existing oil production in green.
