Oomoldic Reservoirs of Central Kansas, Controls on Porosity, Permeability, Capillary Pressure and Architecture
Kansas Geological Survey
Open-file Report 2002-48


Wireline Log Analysis

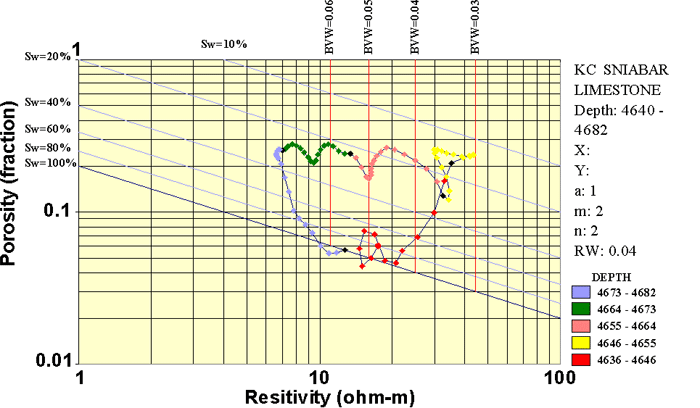

Super Pickett cross plot shows undulating pattern down through the Sniabar Limestone as porosity dips between the beds of oolite.
