CO2 I Tools Well Data DB Tables Log ASCII Standard (LAS) File Information

Log ASCII Standard (LAS) File Information

Applet	CO2 Profile Applet: http://www.kgs.ku.edu/PRS/Ozark/TYPE_LOG/Profile_CO2.html

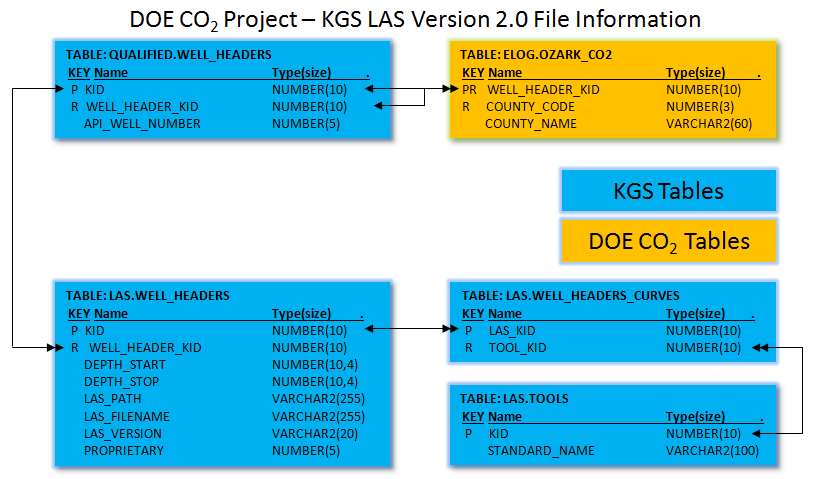

ORACLE PL/SQL	Query for a list of all LAS version 2.0 files assigned to selected well - Newby 2-28R http://chasm.kgs.ku.edu/ords/iqstrat.kgs_las_files_pkg.getXML?sAPI=15-189-22225 Returns XML (Extensible Markup Language), which is parsed and presented in a table for the user to select. Query for a list of all log curves in the LAS file selected - Newby 2-28R - Full log suite http://chasm.kgs.ku.edu/ords/iqstrat.kgs_las_curves_pkg.getXML?sLASKID=1022012442 Returns XML (Extensible Markup Language), which is parsed and presented in a table for the user to select. NOTE: This LAS - Well Headers Curves table was created in support of the GEMINI Project and was filled for the LAS files that happen to be in the KGS collection as of October 2003 and has not been maintained by computer services. So all LAS files received after October 2003 will not have any records in the LAS - Well Headers Curves Table.
NOTE:	http://chasm.kgs.ku.edu/ords/ KGS ORACLE Database iqstrat the ORACLE User IQSTRAT kgs_las_files_pkg the KGS LAS Files Information PL/SQL Package kgs_las_curves_pkg the KGS LAS Curves Information PL/SQL Package getXML the Method for retrieving the XML data

Author: John R. Victorine jvictor@kgs.ku.edu The URL for this page is http://www.kgs.ku.edu/stratigraphic/JAVA_SRC/ORACLE-PLSQL/Well_Data/log.html
