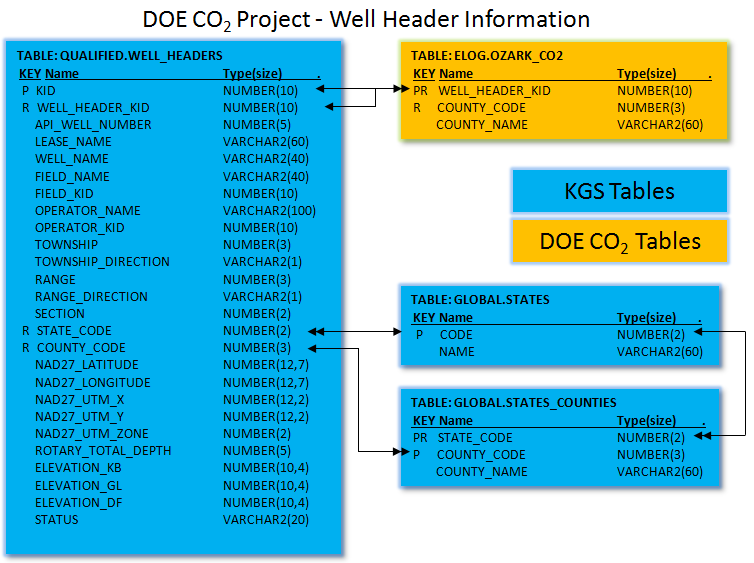

CO2 I Tools Well Data DB Tables Well Header Information

Well Header Information Search

Applet	CO2 Profile Applet http://www.kgs.ku.edu/PRS/Ozark/TYPE_LOG/Profile_CO2.html
ORACLE PL/SQL	Query for a list of CO2 Wells in Sumner County http://chasm.kgs.ku.edu/ords/iqstrat.iqstrat_doe_co2_wells_pkg.getWellXML?sCounty=sumner Returns XML (Extensible Markup Language), which is parsed and well symbols are plotted to a County Map.
	LAS Files: Log ASCII Standard (LAS) version 2.0 Files Database Table PL/SQL Stored Procedures for access to the LAS File Locations & Log Curve Information.
	TOPS DATA: DOE CO2 Well Tops Database Table PL/SQL Stored Procedures for access to the Well Tops.
	Geologist Report: DOE CO2 Geologist Report File Database Table.
	Pseudo Core Data: DOE CO2 Pseudo Core Data File Database Table.
NOTE:	http://chasm.kgs.ku.edu/ords/ KGS ORACLE Database iqstrat the ORACLE User IQSTRAT iqstrat_doe_co2_wells_pkg DOE CO2 Well Information PL/SQL Package getWellXML the Method for retrieving the Well XML data

Author: John R. Victorine jvictor@kgs.ku.edu The URL for this page is http://www.kgs.ku.edu/PRS/Ozark/JAVA_SRC/ORACLE-I-Files/Well_Data/index.html
