Kansas Geological Survey, Open File Report 98-20
Please use your browser's "Back" command to return to the page you were viewing.


Figure 11

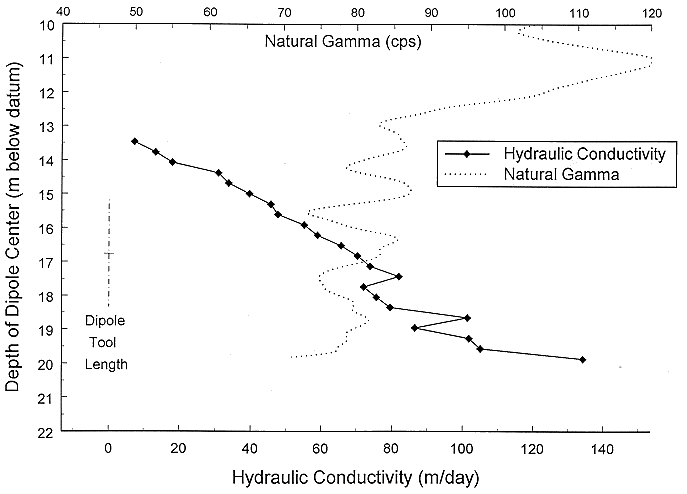

Figure 11. Hydraulic conductivity and natural gamma profiles--Gem4N.
