Water Quality and Hydraulic Fracturing

Developed originally in response to a question from Southwest Groundwater Management District No. 3

by
Donald O. Whittemore (with input from other KGS staff)

KGS Note
November 3, 2011

The challenge in trying to "sufficiently" establish baseline ground-water quality relative to hydraulic fracturing is that, because a variety of chemicals are used in the industry, a complete analysis would be very expensive. The chemicals used depend on such factors as whether the fracturing was for oil or gas, the particular formation, and the company conducting the fracturing. For example, differences could exist between the types of chemicals used in hydraulic fracturing for oil and gas in sandstones and carbonate rocks versus gas in shale. The web site www.energyfromshale.org has a fracking fluids page with a summary of some of the different types of fluids used. The summary diagram available on that page in October 2011 is shown below.

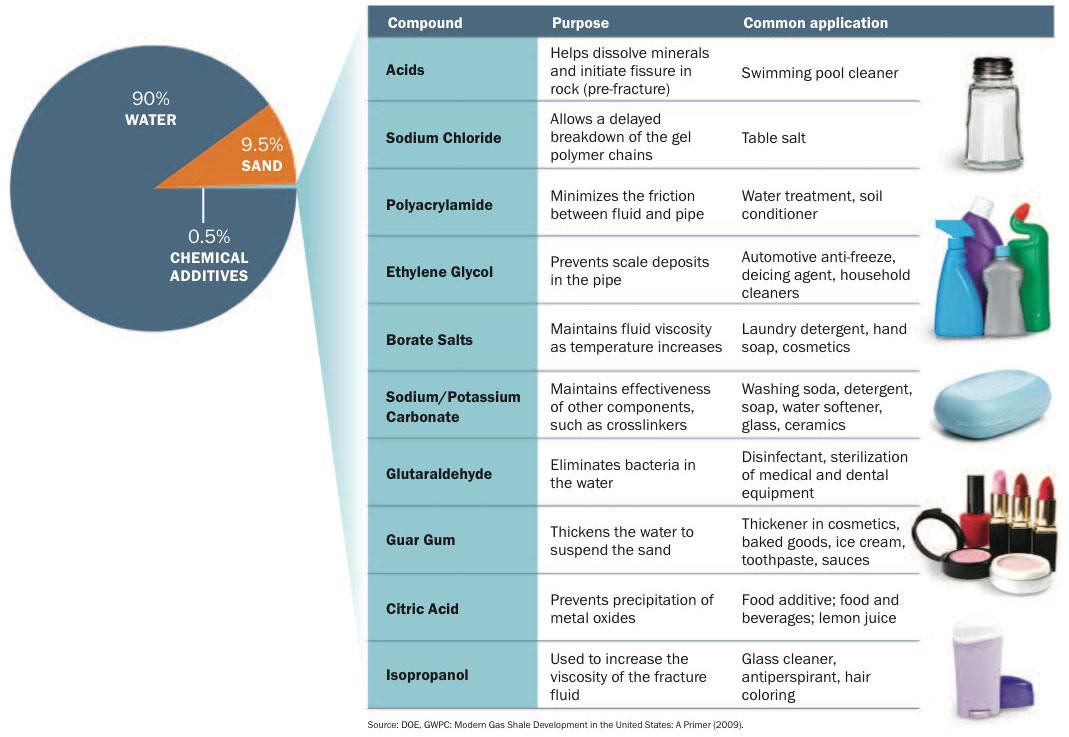

Pie chart shows fluid used in fracturing is 90% water, 9.5% sand, and smaller amounts of acids, salt, polyacrylamide, ethylene glycol, borate salts, sodium/potassium carbonate, glutaraldehyde, guar gum, citiric acid, and isopropanol

From http://www.energyfromshale.org/hydraulic-fracturing-fluid accessed October 2011. Sources: DOE (U.S. Department of Energy); GWPC (Ground Water Protection Council); Modern Gas Shale Development in the United States: A Primer (Acrobat PDF from DOE, 2009, 5.1 MB)

A more complete list of chemicals used in hydraulic fracturing, including the order in which they most appear, is available in a report by the United States House of Representatives, Committee on Energy and Commerce, Minority Staff, April 2011, entitled "Chemicals Used In Hydraulic Fracturing" available at http://democrats.energycommerce.house.gov/sites/default/files/documents/Hydraulic%20Fracturing%20Report%204.18.11.pdf (website no longer active).

Table 1 in the report lists the most commonly used compounds in hydraulic fracturing fluids.

Table 1. Chemical Components Appearing Most Often in
Hydraulic Fracturing Products Used Between 2005 and 2009
Chemical Component No. of
Products
Containing
Chemical
Methanol (Methyl alcohol) 342
Isopropanol (Isopropyl alcohol, Propan-2-ol) 274
Crystalline silica-quartz (SiO2) 207
Ethylene glycol monobutyl ether (2-butoxyethanol) 126
Ethylene glycol (1,2-ethanediol) 119
Hydrotreated light petroleum distillates 89
Sodium hydroxide (Caustic soda) 80

The report states "The oil and gas service companies used hydraulic fracturing products containing 29 chemicals that are (1) known or possible human carcinogens, (2) regulated under the Safe Drinking Water Act for their risks to human health, or (3) listed as hazardous air pollutants under the Clean Air Act. These 29 chemicals were components of 652 different products used in hydraulic fracturing." Table 3 lists these chemicals and their frequency of use.

Table 3. Chemicals Components of Concern: Carcinogens, SDWA-Regulated
Chemicals, and Hazardous Air Pollutants
Chemical Component Chemical Category No. of Products
Methanol (Methyl alcohol) HAP 342
Ethylene glycol (1,2-ethanediol) HAP 119
Diesel19 Carcinogen, SDWA, HAP 51
Naphthalene Carcinogen, HAP 44
Xylene SDWA, HAP 44
Hydrogen chloride (Hydrochloric acid) HAP 42
Toluene SDWA, HAP 29
Ethylbenzene SDWA, HAP 28
Diethanolamine (2,2-iminodiethanol) HAP 14
Formaldehyde Carcinogen, HAP 12
Sulfuric acid Carcinogen 9
Thiourea Carcinogen 9
Benzyl chloride Carcinogen, HAP 8
Cumene HAP 6
Nitrilotriacetic acid Carcinogen 6
Dimethyl formamide HAP 5
Phenol HAP 5
Benzene Carcinogen, SDWA, HAP 3
Di (2-ethylhexyl) phthalate Carcinogen, SDWA, HAP 3
Acrylamide Carcinogen, SDWA, HAP 2
Hydrogen fluoride (Hydrofluoric acid) HAP 2
Phthalic anhydride HAP 2
Acetaldehyde Carcinogen, HAP 1
Acetophenone HAP 1
Copper SDWA 1
Ethylene oxide Carcinogen, HAP 1
Lead Carcinogen, SDWA, HAP 1
Propylene oxide Carcinogen, HAP 1
p-Xylene HAP 1
Number of Products Containing a Component of Concern 652

The Groundwater Protection Council (http://www.gwpc.org/home/GWPC_Home.dwt) has been involved in examining hydraulic fracturing practices and impact on ground water. They published a letter related to the film Gasland in 2010 and gave testimony to the House Committee on Natural Resources, Subcommittee on Energy and Mineral Resources on June 4, 2009. The text of the testimony is available in the link http://www.gwpc.org/e-library/documents/general/KellHouseTestimony6-4-2009.pdf (Acrobat PDF, 20 kB)

The Groundwater Protection Council has also recently (August 2011) published a report "State Oil and Gas Agency Groundwater Investigations" available at the link State Oil & Gas Agency Groundwater Investigations.pdf (Acrobat PDF, 13 MB)

If an individual wishes to have some basic, affordable, inorganic analysis made of ground water, they could contact a company certified by the Kansas Department of Health and Environment, for example, Servi-Tech Laboratories in Dodge City; see the following web links for a more complete Kansas list.

The basic inorganic analysis (pH, specific conductance, and calcium, magnesium, sodium, alkalinity or bicarbonate, chloride, sulfate, nitrate, and fluoride concentrations) would at least establish the general chemistry of the water. This would allow later determination if any oil or gas brine from waste at the surface or through a poorly plugged old oil or gas well nearby that was affected by the fracking process allowed brine to enter the ground water.

The other fracking chemicals are organic and much more expensive to determine. In general, the organic chemicals are not ones that a landowner would use, but some are, such as ethylene glycol (used in antifreeze), methanol (in some types of antifreeze and windshield washer fluid, and in denatured ethanol), isopropanol (in some glass cleaners and fuel additives). If the landowner wanted to expend extra funds on some organic analysis, then an analysis of the water for methanol, isopropanol, and ethylene glycol would probably be appropriate because a higher probability exists that some of these might be in the fracking fluid. This would establish whether their water had concentrations below detection limits or, if some were detected, then perhaps their well has been impacted by their own septic wastewater or by leaks from vehicles or wastes disposed around their home (such as antifreeze).

Other chemicals that can be associated with oil and gas operations include BTEX compounds (benzene, toluene, ethylbenzene and xylenes, and sometimes napthalene). These are some of the volatile organic compounds commonly cited in contamination from petroleum drilling and storage sites.

If a land owner is being approached to lease their land, a baseline laboratory analysis paid by the oil/gas company could be negotiated as part of the leasing agreement. This is not costly compared to the total leasing agreement and drilling, and it could protect both the property owner and the company. In this case, a third party could collect and submit a water sample to an independent certified laboratory and both the oil/gas company and landowner should receive the results.
