Kansas Geological Survey, Open-file Report 2004-4
Return to main report...

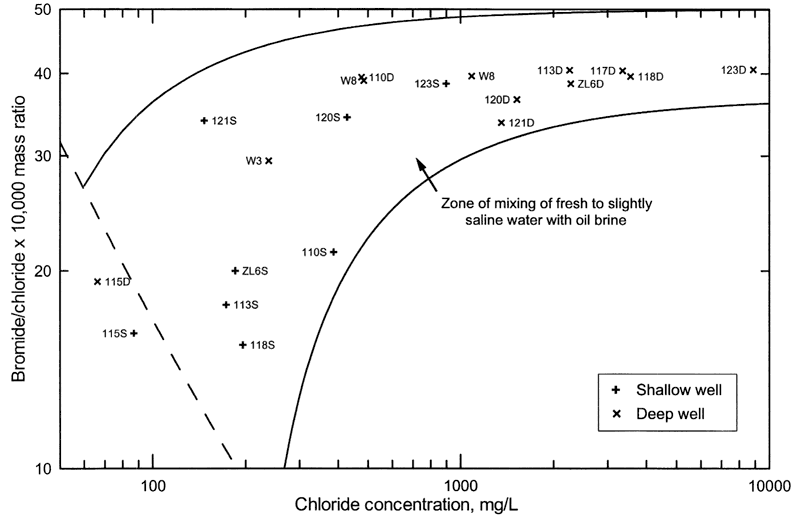

Figure 3. An enlarged portion of Figure 2 with only points for the ground-water samples (including well identification labels).

Wells 123D, 118D, 117D, 113D, and ZL6d are closest to oil brines; 115D, 115S, 118S, 113S, and XL6S are farthest away..
