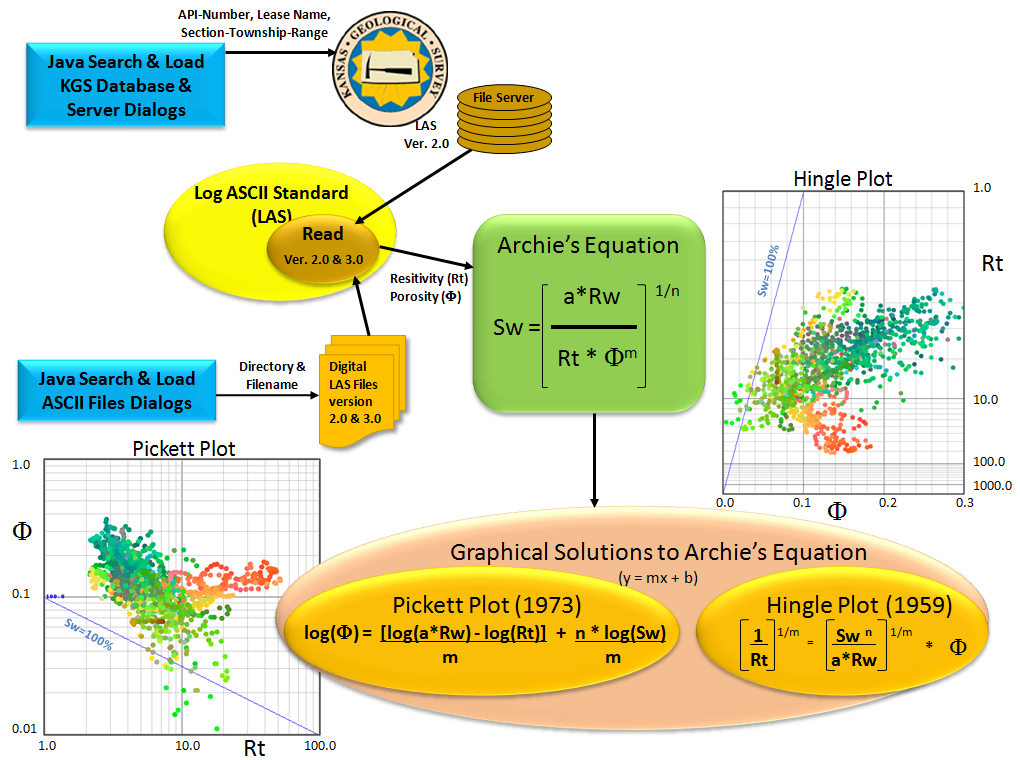

This web application was created to allow the user the ability to determine the Archie parameters though graphical means. The Hingle (1959) & Pickett (1973) Plots developed graphical solutions to Archie's equation, i.e., Water Saturation (Sw), Formation Water Resistivity (Rw), Archie Cementation factor (M), Archie Saturation Exponent (N) from the log data without numerical calculations.

Pickett & Hingle Plots allows the user to add Water Saturation (Sw) Lines to the plot. Pickett Plot also allows the user to include Bulk Volume Water (Bvw) and Permeability (K) Lines.

The web application was designed to help the user to create a best fit for the 100% Water Saturation Line by varying the product of Archie constant, Formation Water Resistivity (a*Rw) and varying the Archie Cementation factor (M).

Hingle Plot:

The y-axis is built from (1/Rt) 1/m but scaled in resistivity or conductivity. This allowed the user to plot data directly to the plot. As m varies so does the grid lines and plotted log data. In the past Hingle Plots were plotted with a fixed grid lines as 1/M = 1/2, but with computers the axis can easily be changed to fit the data more clearly. The porosity (Φ) is plotted as a linear scale on the x-axis.

Pickett Plot:

A graphical solution to Archie's equation by plotting logarithmic scales of resistivity (Rt) versus porosity (Φ), which will allow linear representation of the data as y = m*x + b.

      log(Φ) = (-1/M)*log(Rt) + log(a*Rw)/M - N*log(Sw)/M
         where log(Φ) is the y-axis and log(Rt) is the x-axis. log(a*Rw) is the y-intercept and (N*log(Sw)/M) is a family of lines.

This web application will take advantage of over 16 years of Java development experience at the Kansas Geological Survey (KGS) in developing web applications that plot oil & gas data and allows the geologist to perform analysis with that data, i.e. GEMINI Project & Tools on the KGS Web Site.

GEMINI (Geo-Engineering Modeling through INternet Informatics) Project was developed to allow the geologist to seamlessly integrate databases and geological analytical tools across the web. Analytical tools were designed for the independent oil and gas operators, consultants, and widely separated team members within and outside companies.

The Log ASCII Standard (LAS) version 3.0 developed by the Canadian Well Logging Society is being used as the default Input and Output for this web app. This version provides a means to collect all the geological data in one file. Although the LAS 3.0 Format has default data types, the user can add their own data types to the file provided they use the primary section types, i.e., Parameter, Definition and Data whenever possible, which are briefly paraphrased below, 1

  • ~NewSection_Parameter contains a one dimensional data item consisting of (usually but not restricted to) one or two elements. Each line also contains a full description of that data.
  • ~NewSection_Definition although structurally identical to a Parameter Data lines (see above), each Column Definition line is used to describe each matching (by order) channel contained in the matching Column Data section. The name, unit, log code, description and format (if used) contained in each Column Definition line fully describe the channel it refers to.
  • ~NewSection_Data | NewSection_Definition
    • Each line contains a series of delimited data values. The delimiting character is defined by the value of the DLM parameter in the ~Version section. Descriptions of each data are contained in the matching Column Definition section.
