Figure 2

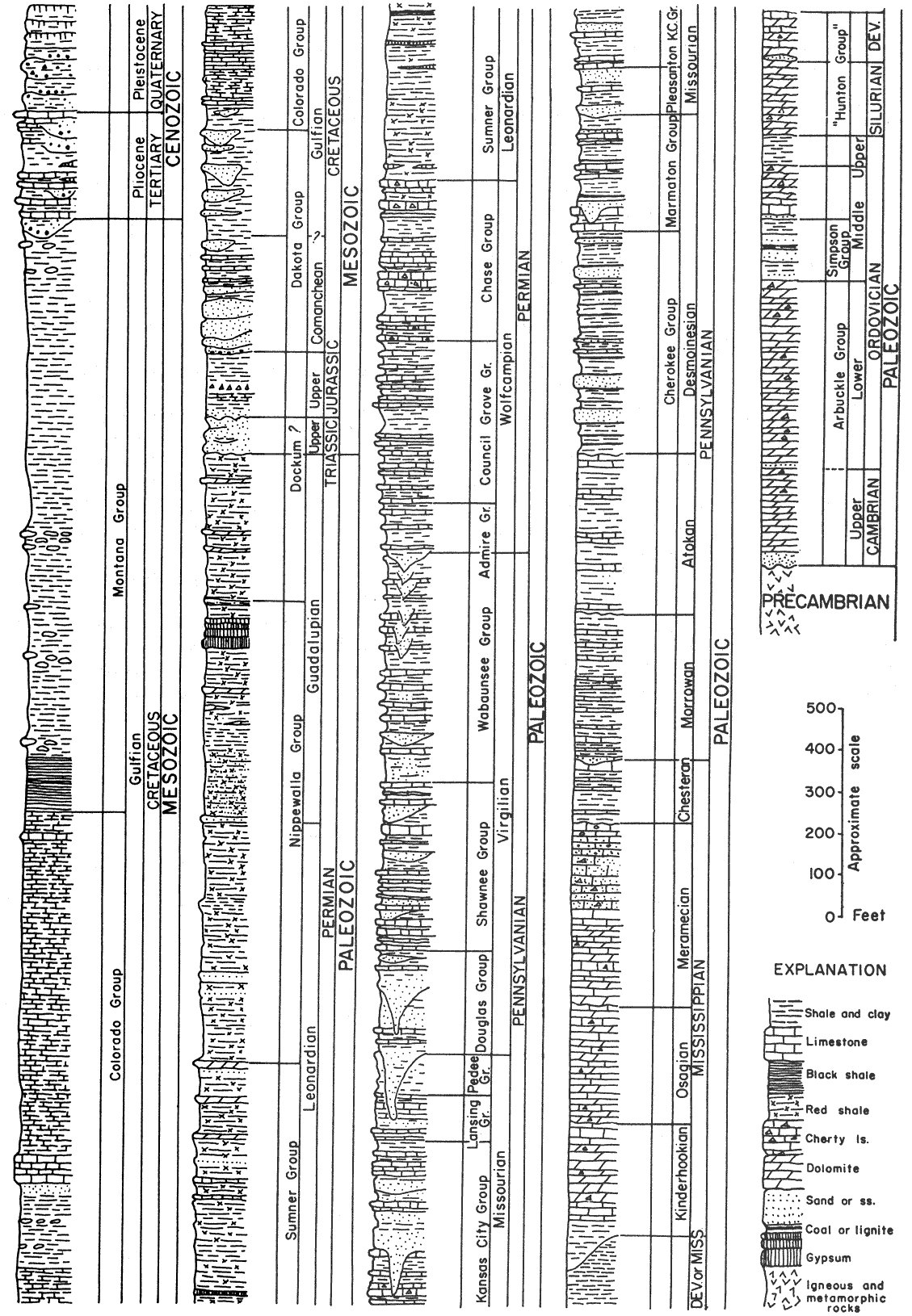

Figure 2--Composite stratigraphic section of rocks present in kansas, Beds older than Mississippian are known only in subsurface (modified from Moore and others, 1952).
Kansas Geological Survey, Geologic History of Kansas
Comments to webadmin@kgs.ku.edu
Web version April 2006. Original publication date Dec. 1963.
