Kansas Geological Survey, Open-file Report 2005-53
by
Benjamin J. Rocke
Kansas Geological Survey
KGS Open File Report 2005-53
Dec. 2005
The Kaufman #2 well (Russell County, Kansas) is located in the North Trapp field, on the eastern flank of the Central Kansas uplift (Fig. 1, Table 1). The existing type log from the collection assembled by the Kansas Geological Society (1966) ends at the base of the Pennsylvanian, which precludes identification of deeper strata on other well logs in Russell County. Strata such as the Pennsylvanian Hushpuckney Shale Member, which gives a distinctive gamma ray signal useful in correlation, and the Ordovician Arbuckle Group, a productive horizon in Russell County, are left out of the current type log.

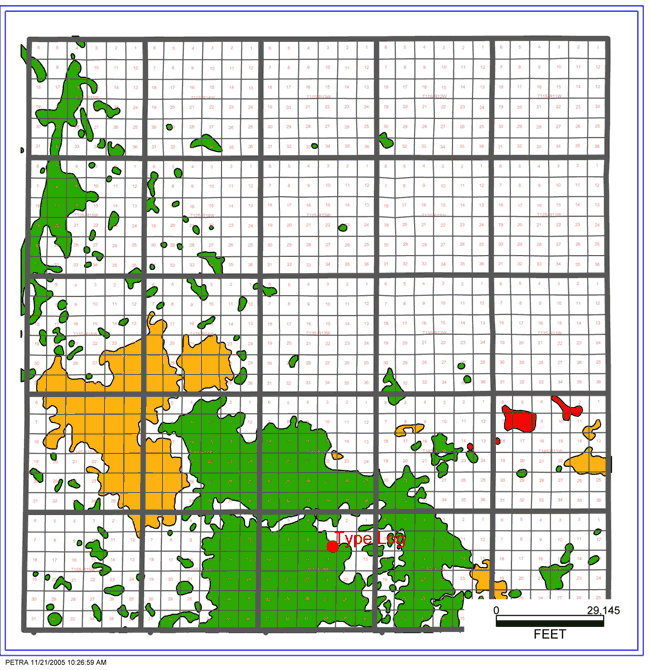

Figure 1--Map of Russell County, Kansas, with oil and gas fields shown (green is oil, red is gas, orange is oil and gas). Large oil field at south-central part of county is North Trapp field, type log location indicated by red dot.
Stratigraphic horizons on the type log are based on data from the older Russell County type log and deeper type logs in surrounding counties and include strata down to the top of the Arbuckle Group (Lower Ordovician). Furthermore, the stratigraphic horizons reflect modifications made to the nomenclature and classification of the stratigraphy of the lower Upper Pennsylvanian in Kansas from the conventions set in 1968 (Heckel and Watney, 2002).
The type log uses gamma ray and neutron tracks recorded from 0 to 3,500 feet and gamma ray and neutron density tracks recorded from 2,100 to 3,500 feet.
Type Log
Table 1--Well information and tops picked.
| Well Name: Kaufman #2 | ||
| API Number: 15-167-22181 | ||
| Company: Hupfer Oil and Gas | ||
| Field: North Trapp | ||
| County : Russell | ||
| Location: NW-SE-SE Sec 10 T15S R13W | ||
| Top | MD | Log Section |
|---|---|---|
| Graneros Shale | 50 | Two |
| Dakota Formation | 80 | Two |
| Blaine Formation | 485 | Two |
| Stone Corral Formation | 780 | Three |
| Ninnescah Shale | 815 | Three |
| Wellington Formation | 960 | Three |
| Hutchinson Salt Member | 1190 | Four |
| Geuda Springs Shale Member | 1420 | Four |
| Chase Group | 1600 | Five |
| Odell Shale | 1632 | Five |
| Winfield Limestone | 1650 | Five |
| Gage Shale Member | 1680 | Five |
| Towanda Limestone Member | 1728 | Five |
| Holmesville Shale Member | 1750 | Five |
| Fort Riley Limestone Member | 1760 | Five |
| Oketo Shale Member | 1800 | Five |
| Florence Limestone Member | 1810 | Five |
| Blue Springs Shale Member | 1850 | Five |
| Wreford Limestone | 1900 | Five |
| Council Grove Group | 1935 | Six |
| Funston Limestone | 1948 | Six |
| Blue Rapids Shale | 1952 | Six |
| Crouse Limestone | 1955 | Six |
| Easly Creek Shale | 2000 | Six |
| Bader Limestone | 2030 | Six |
| Stearns Shale | 2060 | Six |
| Beattie Limestone | 2073 | Six |
| Eskridge Shale | 2080 | Six |
| Admire Group | 2090 | Six |
| Roca Shale | 2130 | Six |
| Red Eagle Limestone | 2142 | Six |
| Johnson Shale | 2165 | Six |
| Foraker Limestone | 2185 | Six |
| Janesville Shale | 2223 | Six |
| Falls City Limestone | 2275 | Seven |
| Onaga Shale | 2284 | Seven |
| Wabaunsee Group | 2308 | Seven |
| Root Shale | 2378 | Seven |
| Stotler Limestone | 2424 | Seven |
| Pillsbury Shale | 2444 | Seven |
| Tarkio Limestone Member | 2489 | Eight |
| Auburn Shale | 2552 | Eight |
| Bern Limestone | 2562 | Eight |
| Scranton Shale | 2579 | Eight |
| Howard Limestone | 2629 | Eight |
| Severy Shale | 2686 | Nine |
| Topeka Limestone | 2704 | Nine |
| Larsh-Burroak Shale Member | 2786 | Nine |
| Deer Creek Limestone | 2791 | Nine |
| Tecumseh Shale | 2793 | Nine |
| Lecompton Limestone | 2798 | Nine |
| Kankawa Shale | 2851 | Ten |
| Oread Limestone | 2858 | Ten |
| Heebner Shale Member | 2933 | Ten |
| Toronto Limestone Member | 2953 | Ten |
| Douglas Group | 2973 | Ten |
| Lansing Group/Missourian Series | 3026 | Ten |
| Hickory Creek Shale Member | 3067 | Eleven |
| Merriam Limestone Member | 3070 | Eleven |
| Kansas City Group | 3078 | Eleven |
| Wyandotte Limestone | 3082 | Eleven |
| Iola Limestone | 3098 | Eleven |
| Muncie Creek Shale Member | 3148 | Eleven |
| Paola Limestone Member | 3153 | Eleven |
| Dewey Limestone | 3157 | Eleven |
| Nellie Bly Formation | 3170 | Eleven |
| Westerville Limestone Member | 3177 | Eleven |
| Winterset Limestone Member | 3198 | Eleven |
| Stark Shale Member | 3212 | Eleven |
| Galesburg Shale | 3218 | Eleven |
| Swope Limestone | 3233 | Eleven |
| Hushpuckney Shale Member | 3252 | Eleven |
| Sniabar Limestone Member | 3259 | Twelve |
| Marmaton Group | 3278 | Twelve |
| Arbuckle Group | 3300 | Twelve |
Heckel, P.H., and Watney, W.L., 2002, Revision of Stratigraphic Nomenclature and Classification of the Pleasanton, Kansas City, Lansing, and Lower Part of the Douglas Groups (Lower Upper Pennsylvanian, Missourian) in Kansas: Kansas Geological Survey, Bulletin 246, 68 p. [available online]
Kansas Geological Society, 1966, Type Logs of Kansas, vols. 1 and 2, Barton and Russell Counties.
