Reservoir Characterization to Inexpensively Evaluate the Exploitation Potential of a Small Morrow Incised Valley-fill Field


Kansas Geological Survey
Open-file Report 2002-9

Morrow Sandstone Production in Kansas

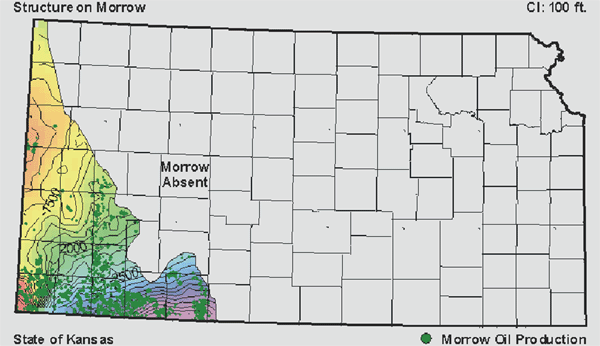

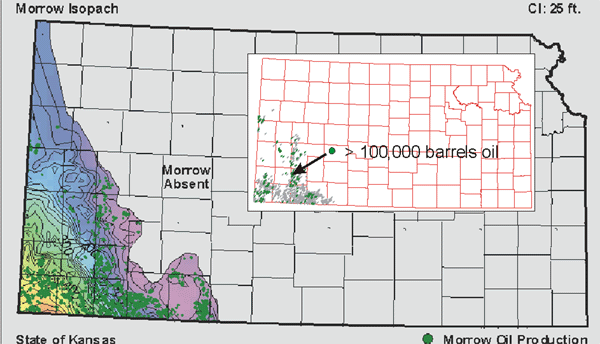

Morrow reservoirs and production are limited to the Hugoton Embayment in the southwest corner of the state. Reservoir thickness ranges from < 10 ft up to 140ft depending primarily on the number of stacked channel deposits. Reservoir depths range from 4,200 ft in the northwest to 5,700 ft in the southeast.

(Gerlach, 1998; www.kgs.ku.edu/DPA/Plays/ProdMaps/morrow_oil.html)
