Geostatistical analysis and mapping for the year 2002 water levels in the High Plains aquifer of Kansas

by
Ricardo A. Olea and John C. Davis

logo of Kansas Geological Survey Kansas Geological Survey


Report to the Director of the
Kansas Geological Survey
University of Kansas
Open-file Report No. 2002-14
Released April 2002, Electronic version created June 2002


Summary

The Kansas Geological Survey measured water levels in 446 observation wells in the High Plains aquifer of Kansas in January 2002 and the Division of Water Resources measured an additional 737 wells during December 2001-February 2002. These measurements and other relevant information are stored in the WIZARD database maintained by the Kansas Geological Survey. The Kansas Geological Survey takes extensive precautions to ensure that the archived data are reliable and that the extracted measurements are free of extraneous effects that might mask variations in water-table elevation.

Sixty-six wells placed into the network of observation wells in the last 3 years have had a beneficial effect either by replacing old observation wells that had mechanical problems or by increasing the sensitivity of the network to fluctuations in water depth. We have now provided an update to the network configuration that requires reactivation of 21 observation wells that were not measured this season and the addition of wells at 13 other key sites in the network.

The network detected an average water-table decline of 2.6 ft during the last 5 years, with some wells showing declines in excess of 30 ft, and a reduction in the number of areas where the water table is rising. In 2001, the 5-year decline was 1.7 ft. The decline is most severe in Groundwater Management District 3 in the southwest corner of the state, where depletion has changed the nature of the variation in the water table. During the period 1997-2002, the groundwater level in GMD3 has declined an average of 4.1 ft.

Table of Contents

List of Figures

List of Tables

List of Plates The 2002 maps are presented as Adobe Acrobat PDF files. You will need the Acrobat PDF Reader, available free from Adobe, to read the maps.

  1. Measured observation wells in the High Plains aquifer, Dec. 2001-Feb. 2002 (243 k)
  2. High Plains aquifer observation wells not measured, Dec. 2001-Feb. 2002 (112 k)
  3. Water-table elevation of the High Plains aquifer, Dec. 2001-Feb. 2002 (231 k)
  4. Kriging standard deviation, Dec. 2001-Feb. 2002 (583 k)
  5. Change in depth to water over the last 5 years (517 k)
  6. Kriging standard deviation for 5-year fluctuations (788 k)
  7. Change in depth to water over the last year (328 k)
  8. Kriging standard deviation for last year fluctuations (832 k)
  9. Kriging standard deviation employing all observation wells (563 k)
  10. Kriging standard deviation after proposed network enhancement (543 k)
  11. Kriging standard deviation for GMD1 (144 k)
  12. Kriging standard deviation for GMD2 (148 k)
  13. Kriging standard deviation for GMD3 (183 k)
  14. Kriging standard deviation for GMD4 (206 k)
  15. Kriging standard deviation for GMD5 (161 k)
  16. Water-table elevation of the High Plains aquifer in GMD4 (138 k)
  17. Water-table elevation of the High Plains aquifer in GMD3 (141 k)

1. Introduction

The Kansas Geological Survey (KGS) and the Division of Water Resources (DWR) measure groundwater wells for the purpose of monitoring the elevation of the water tables in central and western Kansas. The High Plains aquifer is the largest and economically most important aquifer in the state. The High Plains aquifer is also the only aquifer in Kansas whose observation-well network is dense enough for spatial statistical analysis.

The objective of this report is to analyze and map fluctuations in depth to water in the High Plains aquifer for the purpose of:

2. Year 2002 Observation Network

The extraction of data from the WIZARD database was prepared at the KGS by Kurt Look of Computer Services, with assistance from Brownie Wilson of the Geohydrology Section. The extract contains 1361 observation wells.

For year 2002, the extraction includes wells measured during the period December 1, 2001, through February 28, 2002. For convenience we refer to this period as the "2002 season." The same 3-month span was used to extract measurements made in 1996-1997 and in 2000-2001. For wells having more than one measurement during a 3-month interval, the shallowest reading was used.

There are 122 observation wells that monitor aquifers other than the High Plains aquifer, leaving for this study the 1239 wells listed in Appendix A. Two wells, no. 762 (22S 15W 03AAA 01) and no. 763 (22S 15W 03AAA 02), are so close together that they have the same state plane coordinates, which results in identical UTM coordinates if these are calculated from the legal description rather than measured in the field with a GPS device. Thus well no. 763 was not included in this analysis because the geostatistical techniques employed do not allow multiple measurements at the same location. Consequently, the number of wells used in this study is 1238, an increase of four wells over the number used a year ago (Olea and Davis, 2001).

The observation wells used in the study are summarized in Table 1 and posted on Plates 1 and 2. "Provisional wells" are those which have been measured only since 1999. These wells become official observation wells if they can be measured consistently for 3 years and yield systematic readings. Note that the wells are labeled on the maps with arbitrary sequential numbers rather than the longer U.S. Geological Survey (USGS) or KGS official well designations. The water-table elevations measured in 1173 wells are summarized in graphic form in Figure 1.

Table 1. Classification of year 2002 observation wells.

  Network Provisional Total
  MeasuredNot measured MeasuredNot measured
KGS41010363459
DWR70547225779
Total1115575881238

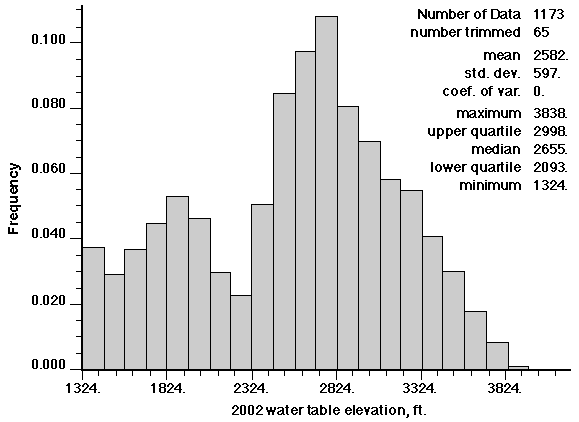

Figure 1. Histogram of water-table elevations in the High Plains aquifer of Kansas, December 2001-February 2002.

max=3838, min=1324, median=2655

3. Water-table Semivariogram Modeling

Plates 3 through 17 were prepared using geostatistical techniques which are adaptations of classical statistical methods that consider the autocorrelation inherent in spatial data such as water-table elevations (Olea, 1999). A central element of any geostatistical analysis is modeling spatial continuity by a semivariogram or equivalent function. Figure 2 shows a semivariogram for 2002 water-table elevations from the Kansas portion of the High Plains aquifer.

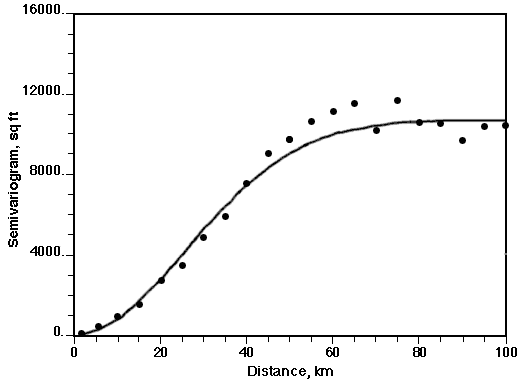

Figure 2. Semivariogram of the 2002 water-table elevation along N10E, the trend-free direction of the Kansas High Plains aquifer. Dots indicate estimated values. The solid line is the best-fitting permissible model, which is Gaussian with a nugget value of 68 ft2, a value of 10645 ft2 for the sill minus the nugget, and a range of 63.5 km.

Gaussian model best fits points

4. Crossvalidation of Year 2002 Measurements

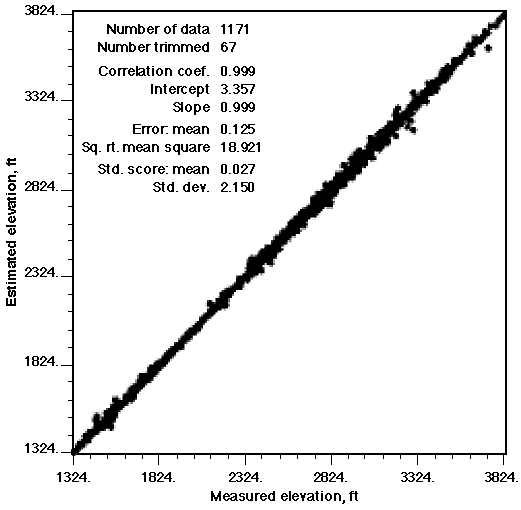

Crossvalidation is a geostatistical verification procedure that takes advantage of the spatial stochastic continuity of surfaces such as water-table elevation (Olea, 1999, Chapter 7). The method consists of removing one well from the data set and using the measurements of the remaining wells to estimate the elevation of the water table at the location of the deleted well. Then, the observation at the well is compared to the estimate, yielding a "crossvalidation error." The well is replaced and the process repeated for every observation of the water-table elevation--1173 times for the 2002 data set. The results can be summarized in a scattergram such as Figure 3 and can be used to analyze outliers in the data, the quality of the sampling procedure, and the power of the estimation method to predict water-table elevations at locations where no measurements have been made. Figure 3. Crossvalidation estimates for water-table elevation in the High Plains aquifer of Kansas, December 2001-February 2002.

correl coef=.9999, error mean=.125, sq rt mean square=18.921

The most anomalous wells are no. 254 (28S 42W 20BCC 01) and no. 905 (17S 42W 28DAB 01). Inspection of the measurements and the locations of these wells does not suggest anything improper in the data collection or recording.

5. Water-table Elevation in the High Plains Aquifer

Plate 3 shows the estimated water-table elevation of the High Plains aquifer for the year 2002. The grid of values used for contouring was generated using universal kriging and the semivariogram shown in Figure 2.

The water-table surface does not appear to differ much from the surfaces observed in previous years (Miller, Davis, and Olea, 1998; Olea and Davis, 1999a; Olea and Davis, 2000a; Olea and Davis, 2001). This year-to-year similarity is partly the reason for mapping annual differences in water level, as the difference maps reveal more subtle variations than do the maps of elevation themselves.

6. Kriging Standard Deviation for Water Table

Plate 4 shows the kriging standard deviation in water-table elevation associated with the water-table elevation map in Plate 3.

The distribution of the differences between observations and estimations seen in crossvalidation indicates that it is reasonable in this instance to assume that the kriging estimation errors are normally distributed. With this assumption, Figure 4 can be used to estimate confidence intervals about the kriged surface.

For example, if at a specific location the kriging estimate is 3000 ft and the kriging standard deviation is 10 ft, then the probability is 90% that the true water level elevation lies between 2983.5 and 3016.5 ft and the probability is 99% that the true elevation is between 2974.2 and 3025.8 ft.

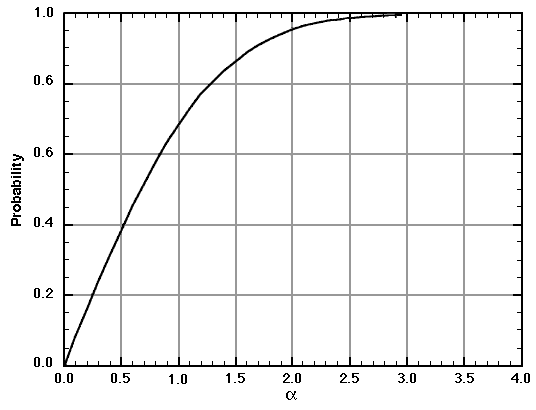

Figure 4. Standard normal score versus probability. Given any kriging estimate and a value of the standard normal score a, the ordinate gives the probability that the true value is within an interval given by (the estimated value minus a times the kriging standard deviation) and (the estimated value plus a times the kriging standard deviation).

standard normal score vs. probability

7. Changes in Water-table Elevation Over the Last 5 Years

Figure 5 shows a cumulative distribution of 1085 values of the difference in depth to water between 1997 and 2002. On average, the depth to water in the observation wells increased by 2.6 ft in 5 years. The wells having the most extreme changes in depth are no. 21 (34S 35W 26ACC 01), in which the water level dropped almost 40 ft., and no. 965 (15S 42W 32BDA 01), in which the water level rose by about 28 ft.

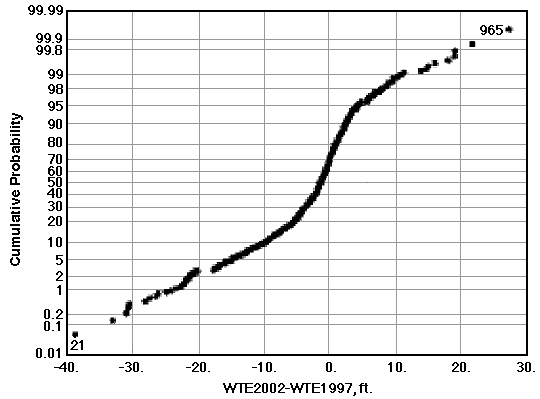

Figure 5. Cumulative probability distribution of differences in depth to water during the last 5 years in the High Plains aquifer.

on average, depth to water increased by 2.6 ft in 5 years

Figure 6 shows values of an experimental semivariogram and the best-fit model for the 1085 observation wells having measurements in both 1997 and 2002. This graph represents the nature of the spatial continuity of the 5-year change in water level throughout the High Plains aquifer. The model is exponential with a small nugget effect.

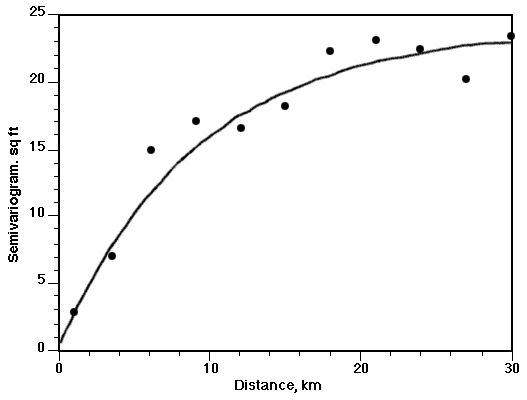

Figure 6. Experimental semivariogram of differences in depth to water over the 5-year period 2002-1997 in 1085 observation wells in the High Plains aquifer. Line is the best-fit model, which is exponential with a nugget of 0.3 ft2, range of 27.7 km, and a value of 23.5 ft2 for the sill minus the nugget.

nugget of .3 sq ft, range of 27 km, sill-nugget=23.5 sq ft

Figure 7 summarizes the results of crossvalidation for changes in water-table elevation over the 5-year period 1997-2002. Because the 5-year change does not exhibit a trend, the crossvalidation has greater dispersion than does the crossvalidation of the water-table elevation itself (Fig. 3). Note, however, that the square root of the mean squared error is smaller, implying that the estimation errors are smaller in spite of their lower spatial correlation. The wells with the largest crossvalidation errors are no. 159 (30S 40W 12BBB 01), no. 760 (22S 17W 05BBC 02), no. 875 (18S 38W 23BAB 01), and no. 965 (15S 42W 32BDA 01).

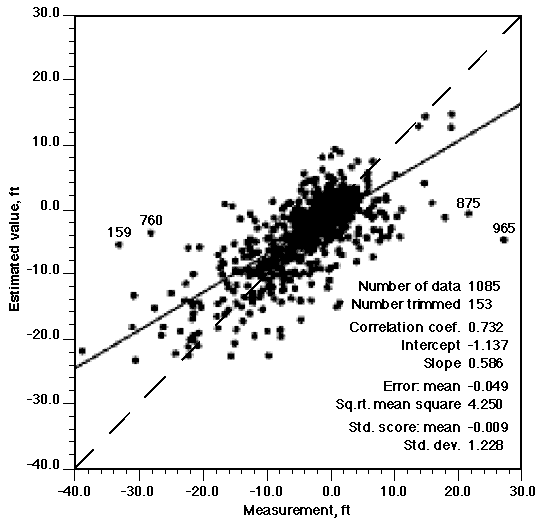

Figure 7. Crossvalidation estimates for changes in water-table elevation over the 5-year period from 1997 to 2002.

correl coef .732, error mean -0.049, std dev=1.228

Plate 5 is a map of changes in water-table elevation during the 5-year period 1997-2002. Contour lines represent depth to water in 1997 minus the depth to water measured in 2002. Negative values, shown in shades of blue, represent areas where the water table is lower because the aquifer has been depleted. The map was prepared using ordinary kriging and the semivariogram shown in Figure 6. The map is based on 1085 observations. Wells no. 760 (22S 17W 05BBC 02), no. 875 (18S 38W 23BAB 01), and no. 965 (15S 42W 32BDA 01) are each at the center of suspicious-looking features that are based on a single well.

General trends in the mapped surface are similar to those observed on previously computed maps of changes in water level over 5-year periods (Miller, Davis, and Olea, 1998; Olea and Davis, 1999a; Olea and Davis, 2000a; Olea and Davis, 2001). However, the rate of depletion seems to be worsening at an accelerated pace. The average increase in depth to the water table in an observation well is 2.6 ft over the period 1997-2002, which is greater than the 1.7 ft average increase in depth seen during the previous 5-year period (1996-2001) or the 1.1 ft average increase in depth for 1995-2000.

Plate 6 shows the kriging standard deviation of the estimated 5-year change shown in Plate 5. Use of these maps in combination with Figure 4 indicates that all areas where depletion is greater than 5 ft (i.e., all areas below the -5 ft contour line) are real and cannot be dismissed as artifacts of the contouring procedure. This also is true for the much smaller areas of recharge where the increase in water level is greater than 5 ft.

8. Changes in the Water Table Over the Past Year

Figure 8 is a cumulative probability distribution of the 12-month change in depth to water. The curve is based on 1143 observations whose mean is -0.95 ft, denoting an average lowering in the water level of almost 1 foot during 2001.

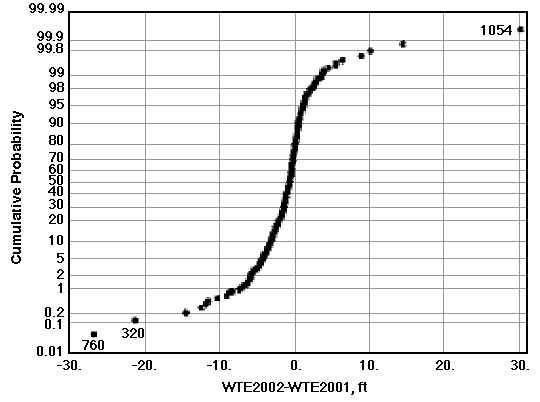

Figure 8. Cumulative probability distribution of the change in depth to water during the last year, 2001-2002.

more narrow range of probabilities over one year than over 5

Wells no. 320(27S 23W 28AAA 01), no. 760 (22S 17W 05BBC 02), and no. 1054 (10S 35W 09ABB 01) are outliers both in the cumulative distribution (Fig. 8) and in the scattergram of cross validation errors (Fig. 10) based on the semivariogram model in Figure 9. Well no. 320 (27S 23W 28AAA 01) is a provisional observation well. As shown in Figure 7, well no. 760 (22S 17W 05BBC 02) also has one of the largest crossvalidation errors for 5-year changes. If these three wells were removed from the analysis, the correlation coefficient between measurements and crossvalidation estimates would increase to 0.56.

Figure 9. Experimental semivariogram of differences in depth to water in 1143 observation wells in the High Plains aquifer for the period 2001-2002. Line is the best-fit model, which is exponential with a nugget of 0.3 ft2, range of 20.4 km, and value of 4.4 ft2for the sill minus the nugget.

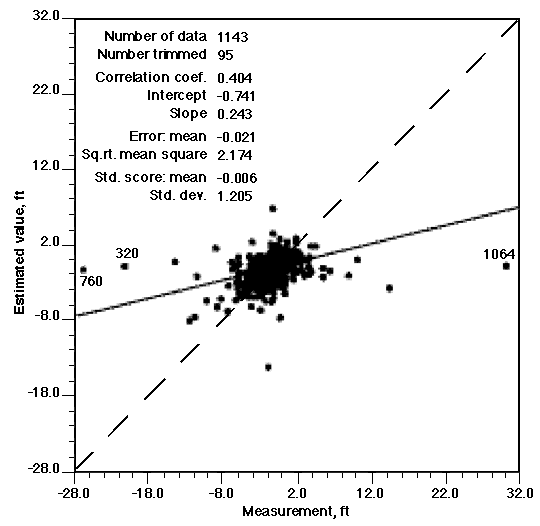

Figure 10. Crossvalidation results for changes in water-level elevation during 2001.

correl coef .404, error mean -0.021, std dev=1.205

Well no. 1054 (10S 35W 09ABB 01) forms the largest anomaly on Plate 7, the map of the change in depth to water in 2001. However, an examination of the kriging standard errors shown in Plate 8, combined with the probability limits graphed in Figure 4, show that in many areas the mapped changes in water level are less than the 95% confidence limits. Therefore, Plate 7 is not a reliable guide to the short-term behavior of the aquifer.

9. Network Analysis

As discussed in Section 6, kriging standard deviations can be used to assess the reliability of estimates. The kriging standard deviation depends only on the form of the semivariogram and the locations of wells--not on the individual measurement values. This circumstance is ideal for network analysis because experiments can be performed using hypothetical well locations even though there are no measurements for these imaginary wells. Plate 9 shows the kriging standard deviation that would result if data were available for the 65 observation wells that were not measured during the 2002 season.

The Kansas Geological Survey and the Division of Water Resources have agreed that the observation-well network should be arranged in such a way that the kriging standard deviation is less than 10 ft everywhere within the High Plains aquifer except near the aquifer boundaries. This section updates recommendations made in past years whose intent was to completely eliminate areas within the network where the kriging standard deviation exceeds the agreed-upon limits (Olea, 1997a; Olea, 1997b; Olea and Davis, 1999b; Olea and Davis, 2000a; Olea and Davis, 2000b; Olea and Davis, 2001). Table 2 lists 17 of the 65 wells that were not measured this season; if these wells had been measured, all areas where uncertainty in the network exceeds acceptable limits would have been eliminated or significantly reduced.

Table 2. Observation wells that should be measured next year.

Seq. no.USGS IDKGS IDAgency
9137180110136310132S 39W 06BBB 01DWR
11037212810106500131S 35W 15BAA 01KGS
13137240510051560130S 32W 31BAB 01KGS
23337341210118010128S 36W 31BDD 01KGS
34737420610119120127S 37W 13BD 01DWR
38837441710028040126S 29W 35CCC 01KGS
45437492609907160125S 16W 31DCC 01DWR
46837500809914150125S 17W 31BBD 01DWR
54737552110036380124S 30W 33ADD 01KGS
55437555710051580124S 32W 30DDD 01KGS
64438010610043440223S 31W 28CDD 02KGS
66938021709807140123S 07W 20BCA 01DWR
73638080110055480122S 33W 22BAA 01KGS
76938112009843480221S 13W 27DDD 02DWR
79538150409846510121S 13W 05CBD 01DWR
96938432310137210115S 39W 26ACC 01DWR
97638464410142080115S 39W 06CBC 01DWR

Table 3 lists four observation wells that did not appear in the 2002 data extraction, apparently because these wells are no longer included in the network. These wells should be reactivated or replaced by nearby wells.

Table 3. Wells not included in the 2002 data extraction that should be reactivated.

Seq. no.USGS IDKGS IDAgency
200137294410047490229S 32W 26CBB 02KGS
200237285510033580129S 30W 35ACD 01KGS
200337281610044190130S 31W 05BBB 01KGS
261537581109737300124S 03W 14BBB 01DWR

Finally, it is necessary to add 13 new observation wells at or near the locations listed in Table 4; this will completely eliminate areas inside the High Plains aquifer that have kriging standard deviations greater than 10 ft. These locations have been determined by placing hypothetical observation wells at the centers of the hexagons shown in Figure 11. The most efficient way of sampling a two-dimensional continuous variable is to take measurements at the centers of regular hexagons that form a tessellation of the area of interest. Based on past experience, there is some leeway in locating wells and they do not have to be at the center of a perfectly hexagonal network. Usually, if a replacement well is in the same section as the well it replaces, or in any of the contiguous sections, the replacement well will be almost as effective in reducing the kriging standard deviation. Plate 10 confirms that, under the proposed enhancements, the kriging standard deviation is less than 10 ft at all locations except adjacent to the boundaries of the aquifer.

Table 4. Ideal locations for new observation wells.

Seq. no.UTM X
(meters)
UTM Y
(meters)
Legal location
300130500044800004S 35W 5CCA
30023125004397000 4S 35W 13DAA
30033520004378000 6S 31W 12DDC
30043350004355000 8S 32W 29ACD
3005351000419300025S 31W 14CDD
30063500004183000 26S 31W 15CCA
3007318000413900031S 34W 6ACD
30083190004130000 31S 34W 32CDD
3009312000416000034S 35W 3BDC
3010343000413000031S 32W 35CAD
3011572000420700023S 8W 34ADA
301234800043470009S 31W 22AAC
3013300000411900033S 36W 8ABA

Figure 11. Hexagonal pattern used graphically to locate sites where new wells are needed.

10. Subdivision of the Aquifer into Homogeneous Portions

The cumulative distribution shown in Figure 1 is bimodal, suggesting the existence of two populations within the aquifer. This tends to substantiate the view expressed by some hydrologists that confidence intervals based on a single semivariogram are too narrow in the eastern part of the aquifer and too wide in the western part. In addition, there is the administrative consideration that the High Plains aquifer is managed through five groundwater districts. For these reasons, the aquifer has been subdivided into more homogeneous units this year, each unit consisting of a single groundwater management district plus wells from neighboring areas that are within the High Plains aquifer but outside the district boundaries.

Figure 12 and Table 5 show five semivariograms, one for each groundwater management district. Also shown for comparison is the aquifer-wide average semivariogram from Figure 2.

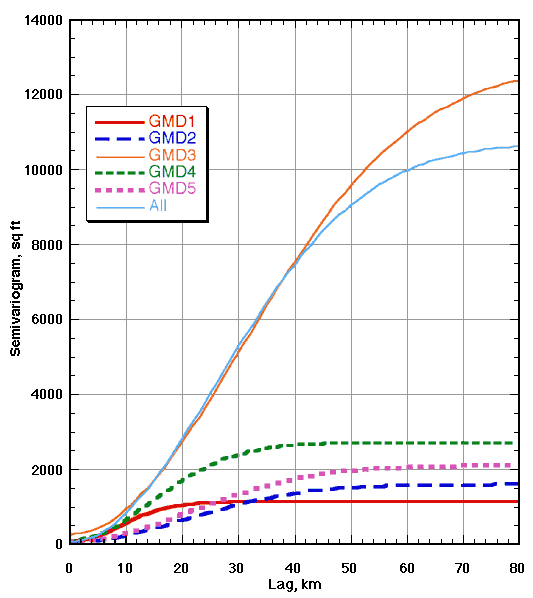

Figure 12. Semivariogram models along the trend-free direction for each groundwater management district and for the entire aquifer. Table 5 lists values of the critical parameters.

comparison of semivariograms

Plates 11-15 show maps of the kriging standard deviations that result from using these semivariograms. It is curious to observe that GMD3, which has a semivariogram that appears most similar to the semivariogram for the entire aquifer, has a map of kriging standard deviation that seems most different from that in Plate 4. The main reason for the difference in appearance of the two maps may be that the semivariogram for GMD3 has the largest difference in the nugget, which seems to be the most important parameter. This selective analysis shows that the kriging standard deviation in GMD3 is approximately twice as large as the average standard deviation that results from using a single semivariogram for the entire aquifer. GMD3 also is the district where the aquifer has suffered the most severe depletion (Plate 5). Irregular depletion may be the cause of the more uneven and erratic surface of the water table in the aquifer. Depth to water increased by 4.1 ft on average over the period 1997-2002.

Table 5. Parameters for the semivariogram models in Figure 11. All models are Gaussian.

AreaMeasurementsNo trend
(degree)
Nugget
(sq ft)
Sill
(sq ft)
Range
(km)
AIC
GMD1126N8E60111821.894-33.9
GMD2103N2W43158750.916-30.8
GMD3378NS2721277474.290-100.0
GMD4339N22W77269535.766-26.8
GMD5227N10W69210552.592-73.5
Entire aquifer1173N10E6810713 63.528-109.2

Although the semivariograms of the other districts have sills that are significantly different than that of the semivariogram for the entire aquifer, the kriging standard deviation maps of the districts show minimal differences, especially that of GMD5. The kriging standard deviations for GMD2 are approximately 20% lower than standard deviations calculated across the entire aquifer; those for GMD1 and GMD4 are about 20% higher.

Because the spatial continuity of the water-level elevation differs from district to district, the network density should also differ in order to maintain uniform reliability. However, the High Plains aquifer observation-well network is designed as a constant-density network. Reducing the average kriging standard deviation by half within an area would require that the number of wells be increased 16 fold (Olea, 1984). The obvious impracticality of such a step means we will have to live with varying network reliability, which may even become more severe if groundwater depletion continues to worsen.

Except in GMD3, using semivariogram models by district rather than statewide does not significantly change the contour maps of water-table elevation, as can be seen by comparing Plates 3 and 16. Increase in the nugget has the effect of increasing the smoothing in the kriging estimates, observable in Plate 17.

11. Conclusions and Recommendations

Based on geostatistical analyses of 1173 measurements of water-table elevations in the High Plains aquifer taken during December 2001 to February 2002, 1143 measurements of the difference in depth to water during the last year, and 1085 measurements of the difference in depth to water over a 5-year period, we may note that:

References

Miller, R.D., J.C. Davis, and R.A. Olea, 1998, Annual water level raw data report for Kansas: Kansas Geological Survey Open-File Report No. 98-7, 275 p., 6 plates, 1 compact disk. [Available Online]

Olea, R.A., 1984, Sampling design optimization for spatial functions: Mathematical Geology, vol. 16, no. 4, p. 369-392.

Olea, R.A., 1997a, Sampling analysis of the annual observation water-level wells in Kansas: Kansas Geological Survey Open-File Report No. 97-73, 44 p.

Olea, R.A, 1997b, Modification to the High Plains aquifer observation network expansion in Open-File Report No. 97-73: Open-file Report 97-84, Kansas Geological Survey, Lawrence, Kansas, 3 p.

Olea, R.A., 1999, Geostatistics for Engineers and Earth Scientists: Kluwer Academic Publishers, Norwell, Massachusetts, 303 p.

Olea, R.A., and J.C. Davis, 1999a, Sampling analysis and mapping of water levels in the High Plains aquifer of Kansas: Kansas Geological Survey Open-File Report No. 99-11, 35 p., 9 plates.

Olea, R.A., and J.C. Davis, 1999b, Optimization of the High Plains aquifer water-level observation network: Kansas Geological Survey Open-File Report No. 99-15, 8 p., 3 plates.

Olea, R.A., and J.C. Davis, 2000a, Year 2000 sampling analysis and mapping of water levels in the High Plains aquifer of Kansas: Kansas Geological Survey Open-File Report No. 2000-13, 33 p., 5 plates.

Olea, R.A., and J.C. Davis, 2000b, Year 2000 proposed additions to the High Plains aquifer water-level observation network: Kansas Geological Survey Open-File Report No. 2000-17, 7 p., 1 plate.

Olea, R.A., and J.C. Davis, 2001, Year 2001 mapping of water levels in the High Plains aquifer of Kansas and analysis of the monitoring network: Kansas Geological Survey Open-File Report No. 2001-6, 49 p., 8 plates. [Maps Available Online]
