Figure 8

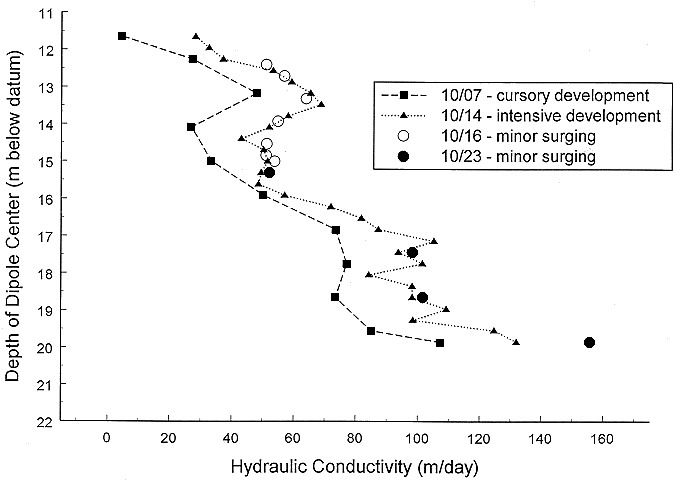

Figure 8. Dependence on well development. Hydraulic conductivity versus depth--Gems4S 10/97 test.
