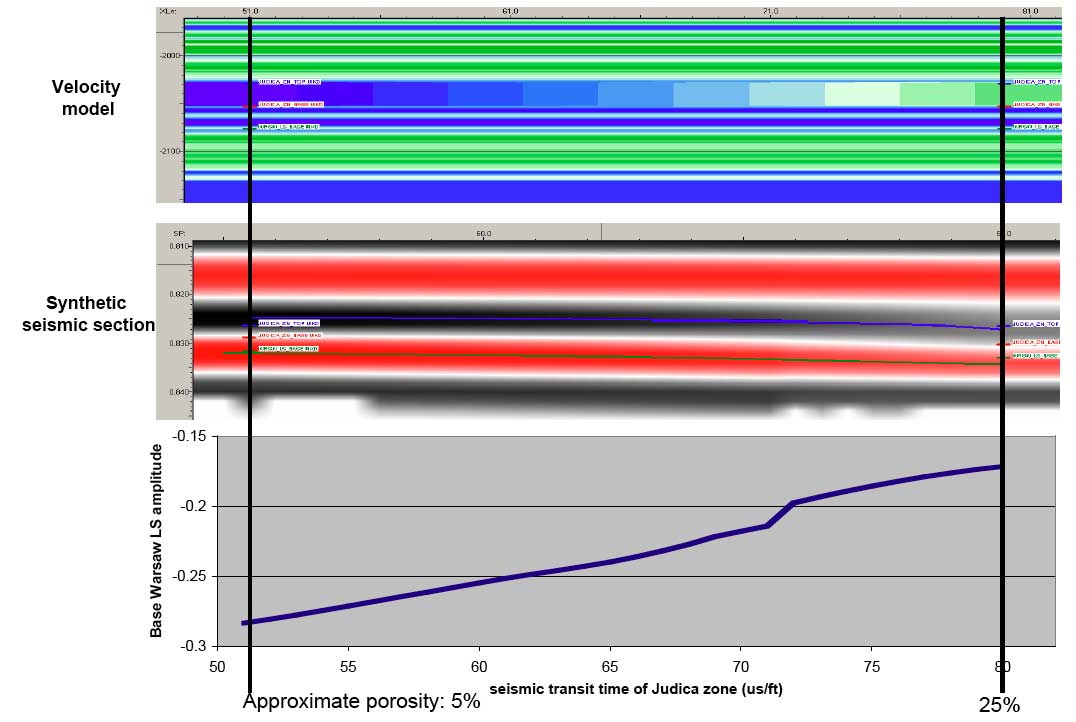

Figure 9. Modeled variation in amplitude of the base of the Warsaw Limestone horizon due to increase in porosity of Judica zone.

Velocity model has layers of alternating porosity values above and below Judica zone;
synthetic seismic section changes as porosity drops from 25% to 5%.
