Bourbon Arch--NE-SW Cross Section

Index of Images || Small Web Image || Large Web Image || Acrobat PDF (947K)

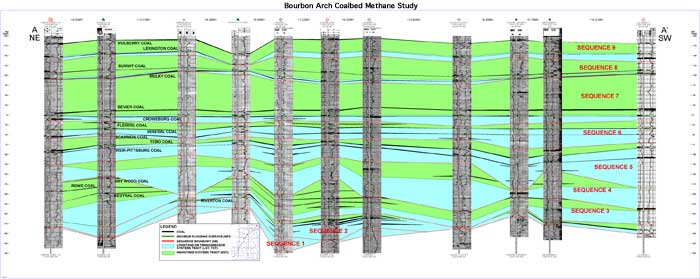

A northeast-southwest-trending sequence stratigraphic cross section of the Bourbon arch study area includes wells in Johnson, Miami, Franklin, Anderson, Allen, and Woodson counties. Refer to Johnson (2004) for sequence stratigraphic explanation and interpretation.

Cross section from northeast to southwest showing coals, wireline logs, and sequences
