Geostatistical 3D Reservoir Modeling of Mississippian St. Louis Carbonate Reservoir Systems, Kansas

Kansas Geological Survey

Open File 2004-26

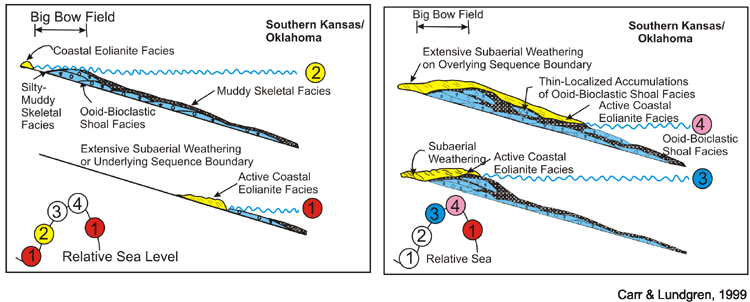

Stratigraphic Model

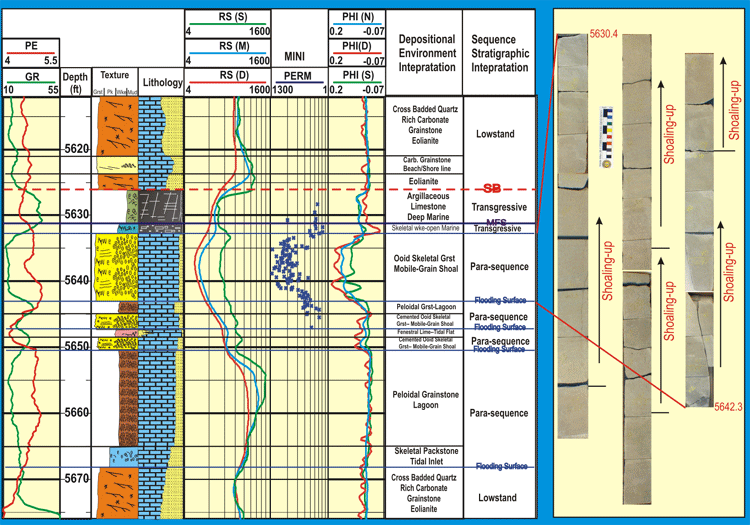

Cored Well Wade Allen 1-36 (St.Louis)

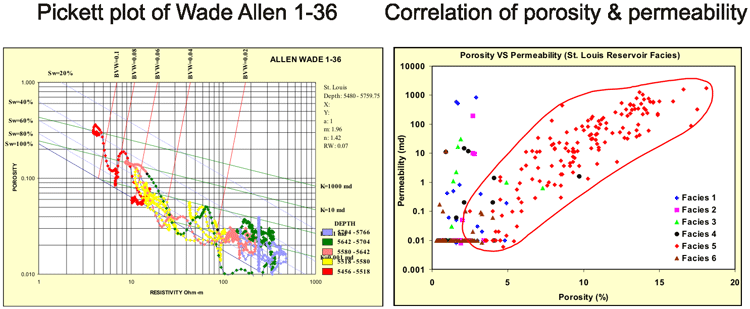

The pay zone, oolitic shoal interval, has a log response with the lowest RT value and highest porosity on log. Based on available data, porosity shows an exponential relationship with permeability. Porosity distribution ranges from 2 to 15 percent. However, the distribution of permeability displays high heterogeneity, from less than 0.01md to more than 1,000md.






http://www.kgs.ku.edu/PRS/publication/2004/AAPG/3DReservoir/p2-02.html

Last Modified December 2004
