Seismic Detection of Shallow Natural Gas Beneath Hutchinson, Kansas

Kansas Geological Survey
Open-file Report 2002-44

High Resolution Seismic Reflection Data

In February 2001, the Kansas Geological Survey conducted a high-resolution seismic reflection survey in order to detect seismic anomalies, which might indicate the presence of gas and identify potential gas pathways from Yaggy to Hutchinson.

Data Acquisition Parameters

The seismic source was an IVI minivib (vibroseis) controlled by a linear up-sweep (5 s) from 30 to 300 Hz . The receivers were Mark Products L28E 40 Hz vertical component geophones. Three geophones, in series, were planted in 1.5 m arrays every 2.5 m along the line. Data were recorded on four 60-channel, R60 Geometrics StrataView seismographs networked for simultaneous 240-channel recording. A 6-second record with a sample interval of 0.5 ms was recorded. The source interval was 5 m. Three shots were recorded individually at each source station. A split-spread geometry was used in data acquisition.

Data Processing Flow

  1. Correlation: Raw data were correlated with the ground force recorded on the first channel of each record
  2. Trapezoidal bandpass filter (61-122-250-300 Hz)
  3. Spherical divergence correction (50 dB/sec)
  4. Editing: first arrival muting; dead trace killing; surgical muting
  5. Velocity analysis
  6. Residual static correction
  7. Normal moveout (NMO) correction
  8. Common depth point (CDP) stack

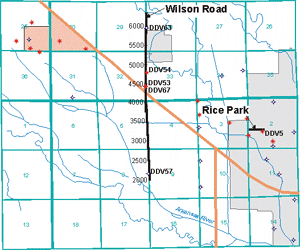

Seismic reflections on the CDP stacked data were tied to known rock formations using synthetic seismograms created with sonic and density logs from the Q-5 well in Yaggy. At the level of the “three-finger” dolomite, the Rice Park line appeared to show a dim out corresponding to the gas at DDV5. On the Wilson Road line, two amplitude anomalies, approximately 1/3 mile apart, were identified and drilled. One anomaly was a dim out (DDV54) and the other was a bright spot (DDV53). Gas was found at both locations.

Since the presence of gas produces different seismic anomalies at locations separated by 1/3 mile or less, the physical properties of the gas-bearing zone and surrounding rock layers must have significant lateral variation beneath Hutchinson. The nature of the lateral variations in physical properties was investigated using data from core and well logs.

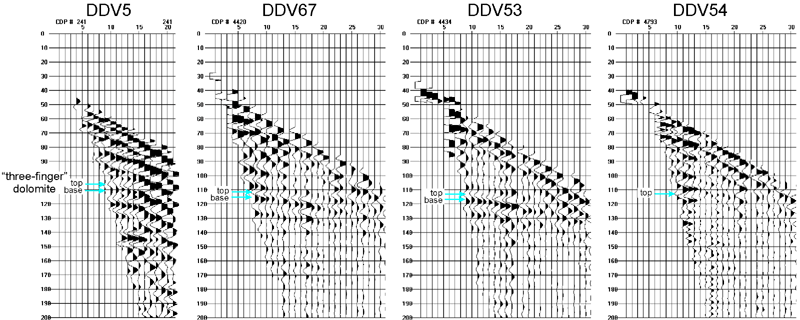

CDP Gathers at Locations with Gas
