Figure 10.1 Mapping of ordinary kriging results for elevation to UNCF.

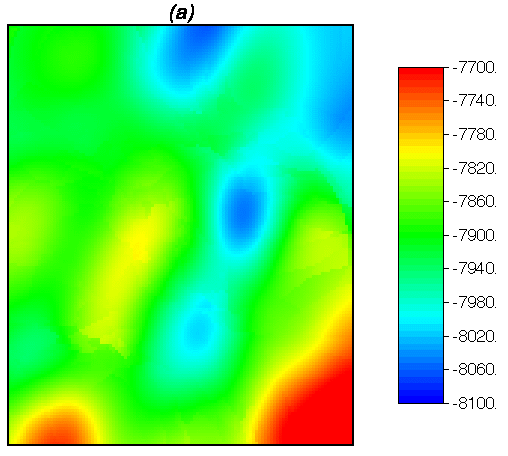

Map (a): The estimate or, in reliability terms, the 50th percentile, in feet below sea level.
color map

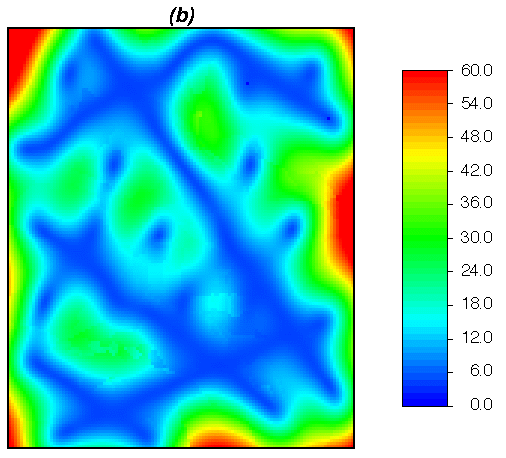

Map (b): The kriging standard deviation or length of interval above and below the estimate containing the true value with 68.3% probability, in feet
color map
