Processing, Baseline and First Three Surveys--Fig. 7

Return to Processing report...

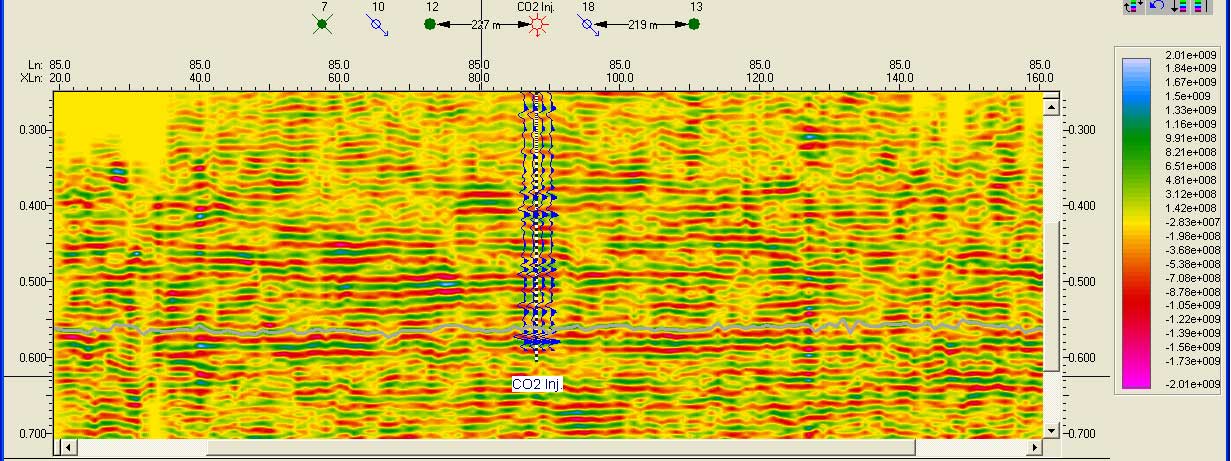

Figure 7--Seismic amplitude section, interpreted target top horizon (gray), and seismic syntheticsat well CO2I#1. Gas shadow effect is evident below time horizon in the vicinity of the injection well.

Color seismic section with synthetic seismic traces at well
