Processing, Baseline and First Three Surveys--Fig. 2

Return to Processing report...

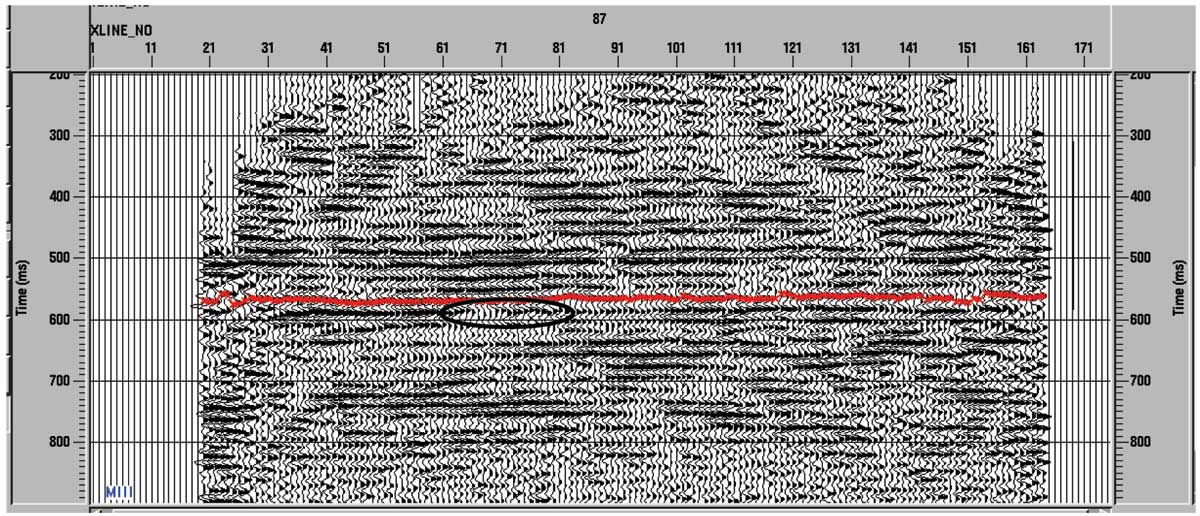

Figure 2--The same 2-D slice as Figure 1 except from the third monitor survey acquired in June 2004. As with the equivalent 2-D cross line slice, the approximate top of the Lansing-KC interval is interpreted in red with an ellipse defining a zone where a marked change in reflection character can be observed between the baseline and third monitor survey.

seismic data with small area highlighted
