Processing, Baseline and First Three Surveys--Fig. 10

Return to Processing report...

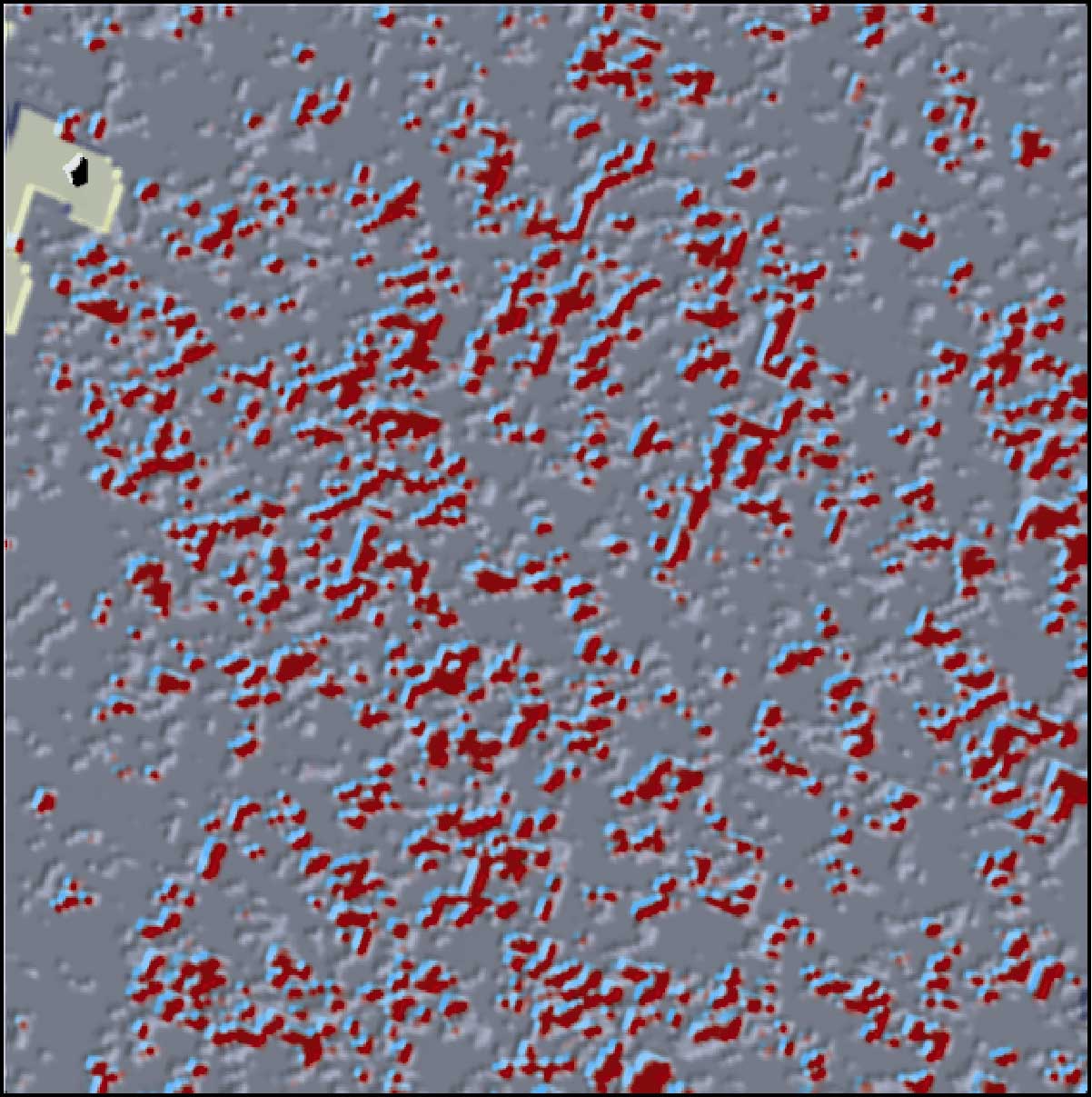

Figure 10--Lineament attribute map. The principal trend is northeast/southwest with secondary trends oblique to the principal trend with an orientation around west-northwest by east-southeast. The principal trends can be traced across the survey area, while the secondary trends are much more discontinuous.

Lineament attribute map
