Processing, Baseline and First Three Surveys--Fig. 1

Return to Processing report...

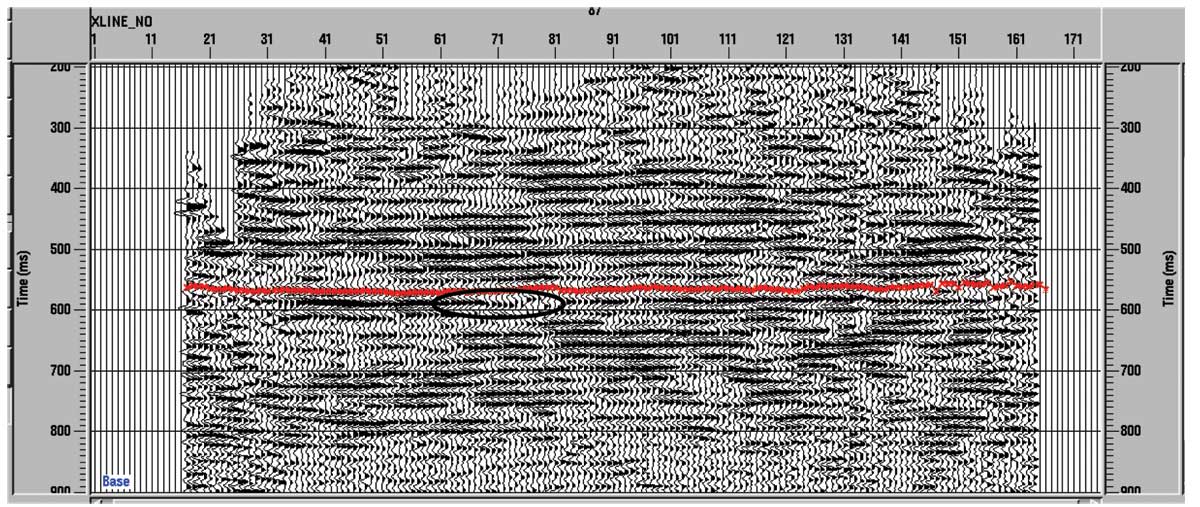

Figure 1--A 2-D slice from the baseline survey during November 2003 with the approximate top of the Lansing-KC interval interpreted in red and an ellipse defining the area immediately below the L-KC appearing to change most dramatically when contrasted with the same 2-D cross line slice of the June 2004 survey.

seismic data with small area highlighted
