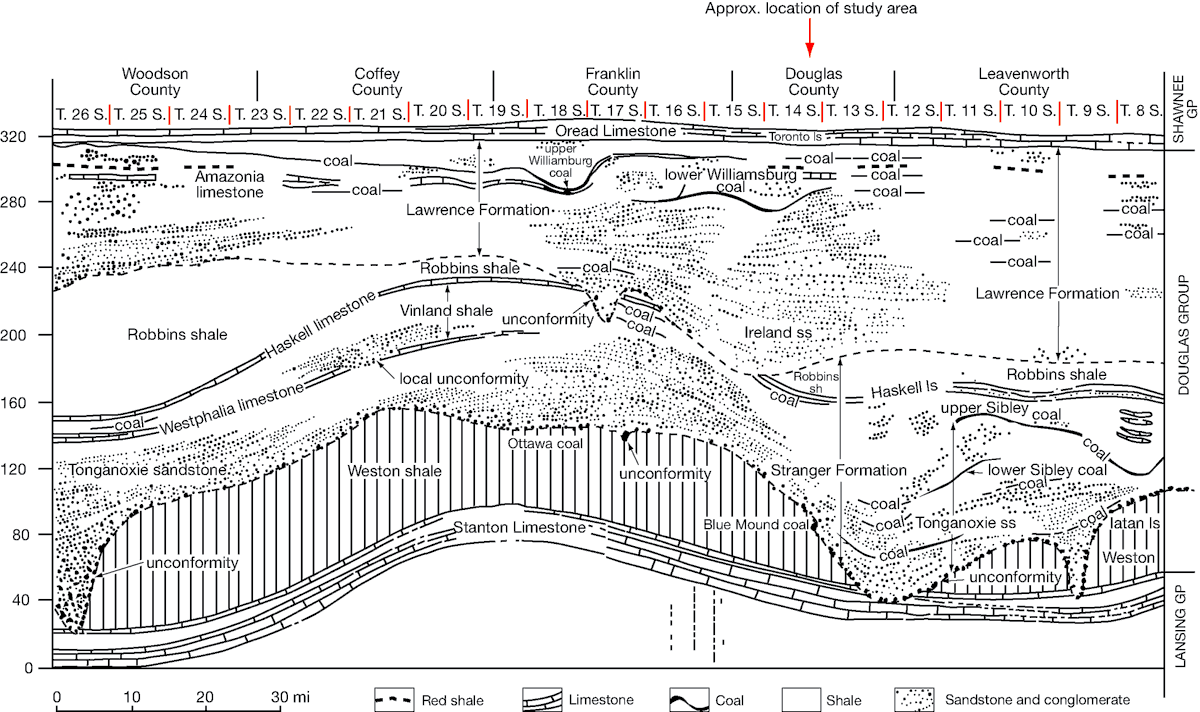

Figure 3--Stratigraphic cross section of the Douglas Group in northeastern Kansas (from Moore, 1949; after Bowsher and Jewett, 1943). The Robbins Shale and Haskell Limestone Members are included in the Stranger Formation, rather than in the Lawrence Formation (Zeller, 1968) or the Cass Limestone (fig. 2; Feldman et al., 2005).

Cross section shown from Woodson (in south) to Coffey to Franklin to Douglas (location of spillway) to Leavenworth (in north)
