HELP: Select Cross Plot Icon Button Panel

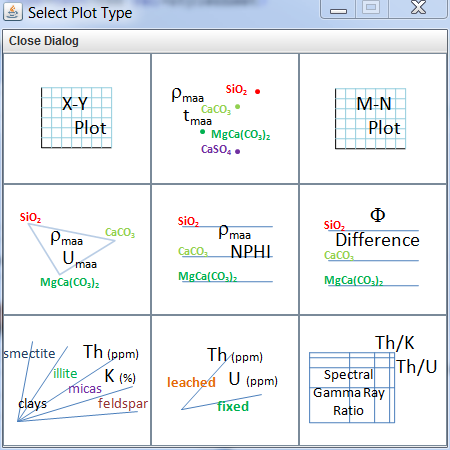

Cross Plot Selection Panel Icon Buttons

Select a icon button from the following list to view Example Plots.

User Define XY Cross Plot
Log ASCII Standard (LAS) Log Data & Core Data
This button allows the user to select what data they wish to plot, i.e. LAS Gamma Ray Log Curve versus Measured Whole Core Porosity Data.

Rhomaa-Tmaa Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
NPHI	Neutron Porosity	PU
RHOB	Bulk Density	gm/cc
or DPHI	Density Porosity	PU
DT	Acoustic transit time	usec/ft
or SPHI	Sonic Porosity	PU
GR	Gamma Ray	API

in order for the icon button to be enabled.

MN Litho-Porosity Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
NPHI	Neutron Porosity	PU
RHOB	Bulk Density	gm/cc
or DPHI	Density Porosity	PU
DT	Acoustic transit time	usec/ft
or SPHI	Sonic Porosity	PU
GR	Gamma Ray	API

in order for the icon button to be enabled.

Rhomaa-Umaa Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
NPHI	Neutron Porosity	PU
RHOB	Bulk Density	gm/cc
or DPHI	Density Porosity	PU
PE	Photoelectric Factor	barns/e
GR	Gamma Ray	API

in order for the icon button to be enabled.

Rhomm-NPHI Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
NPHI	Neutron Porosity	PU
RHOB	Bulk Density	gm/cc
or DPHI	Density Porosity	PU
GR	Gamma Ray	API

in order for the icon button to be enabled.

Porosity Difference Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
NPHI	Neutron Porosity	PU
RHOB	Bulk Density	gm/cc
or DPHI	Density Porosity	PU
GR	Gamma Ray	API

in order for the icon button to be enabled.

Thorium (Th) - Potassium (K) Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
THOR	Thorium Concentration	PPM
URAN	Uranium Concentration	PPM
POTA	Potassium Concentration	%

in order for the icon button to be enabled.

Thorium (Th) - Uranium (U) Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
THOR	Thorium Concentration	PPM
URAN	Uranium Concentration	PPM
POTA	Potassium Concentration	%

in order for the icon button to be enabled.

Spectral Gamma Ray Cross Plot
The following Log ASCII Standard (LAS) Log Data Curves must be present,

Mnemonics	Description	Units
THOR	Thorium Concentration	PPM
URAN	Uranium Concentration	PPM
POTA	Potassium Concentration	%

in order for the icon button to be enabled.

Author: John R. Victorine jvictor@kgs.ku.edu
