Kansas Geological Survey, Bulletin 119, Part 2, originally published in 1956
Back to main article...

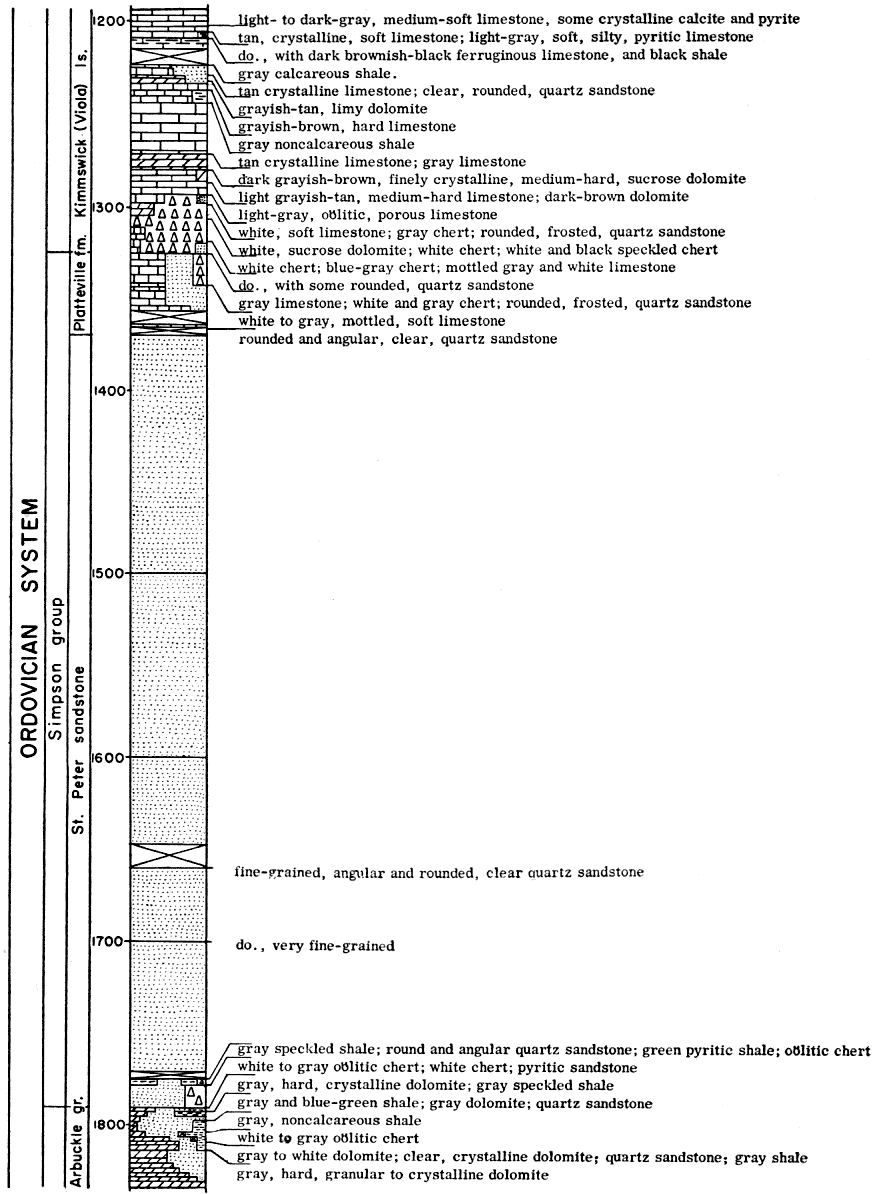

Figure 5--Sample log of Simpson group and Kimmswick (Viola) limestone in Kasper No. 1 James well, Johnson County, Kansas. (Samples examined by W.R. Atkinson.)

Sample log.


Back to main article...

Kansas Geological Survey, Geology
Placed on web Aug. 9, 2006; originally published in 1956.
