Kansas Arbuckle Formation - (from Franseen, et al., 2003)

Since the 1910’s, several billion barrels of oil have been produced from the Central Kansas Uplift (CKU), primarily from carbonate reservoirs within the Arbuckle and Lansing-Kansas City groups (Figure 1). The majority of Arbuckle reservoirs of central Kansas were drilled prior to 1955 and constitute a series of giant and near giant oil fields. The significance of the Arbuckle to Kansas production and reserves is highlighted by the estimate that Arbuckle reservoirs have produced about 2.19 billion barrels of oil (BBO) representing approximately 36% of the 6.1 BBO of total Kansas oil production to date. Arbuckle reservoirs produce from 31 counties statewide with a significant portion of the total production coming from the 10 counties in the CKU region. Table 1 lists the 21 most productive Arbuckle fields and the cumulative oil production attributed to each. These fields represent approximately 56% of all Arbuckle production with nineteen of the fields lying on the CKU and the remaining two on the Nemaha Uplift in Butler and Cowley counties. Although the Arbuckle has been a prolific producing interval since 1917, annual production peaked in the early 1950’s at more than 68 million barrels and has declined to approximately 12 million barrels per year in 2002. Today, stripper production dominates Arbuckle production with over 90% of wells producing less than 5 barrels of oil per day and is very sensitive to commodity prices.

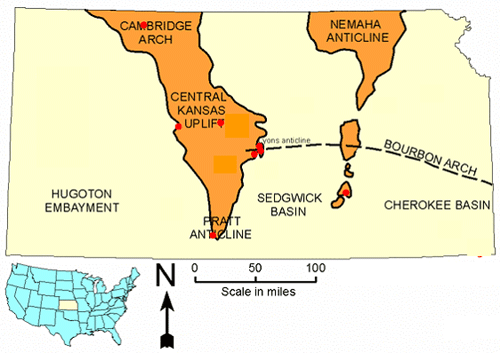

Figure 1: Map of Kansas showing major structural elements

The long production history and exploration/exploitation strategies have led to some commonly held perceptions about Arbuckle reservoir properties. These include: 1) Arbuckle reservoirs are fracture-controlled karstic reservoirs with porosity and permeability influenced by basement structural patterns and subaerial exposure. The weathering and secondary solution of the upper Arbuckle beds, due to subaerial exposure, is thought to have significantly enhanced porosity and permeability and created petroleum reservoirs in these strata. 2) The Arbuckle is composed predominantly of shallow-shelf dolomites. The process of dolomitization enhanced porosity. 3) Most of the oil and gas zones in the Arbuckle are contained in the top 25 ft, some are 25-50 ft within the Arbuckle and Arbuckle wells are characterized by high initial potential, steep decline rates, and production of large quantities of oil at high water/oil ratios. Thus, Arbuckle reservoirs typically have been visualized as an oil column on top of a strong aquifer. This conceptual model of the Arbuckle reservoir resulted in drilling and completion practices in which wells were drilled into the top of the Arbuckle with relatively shallow penetration (less than 10 ft.) and completed open hole. The geology of the Arbuckle is not well understood due to these drilling and completion practices along with the limited number of cores that have been taken.

Basic Information Pertaining to Water Shut-off Treatments Using Gelled Polymers
The majority of polymer treatments to control water production in producing wells are performed in fractured carbonate/dolomite formations associated with a natural water drive, such as the Arbuckle formation in Kansas. Gelled polymers are created when dry polymer is mixed in water and crosslinked with a metal ion (usually chromium triacetate or aluminum citrate). Gelation is controllable, ranging from a few hours to weeks. Slower gelation time allows for more volume and deeper placement. Different polymer systems are available from different service providers.

Service company experience seems to be the dominant factor in estimating how a particular formation in a given area will respond to gelant injection. The service provider must be prepared to alter the original design based on the ability of a formation to accept a viscous fluid. A formation injectivity test is important in determining any changes in the original design.

In many instances creating a pressure response during treatment is the single most important indicator of a potentially successful water control project. A slow, steady pressure increase over a period of time during pumping will tell the operator one of two things: 1) the formation is reaching fill-up of polymer into the problem zone, or 2) the reservoir temperature is causing the polymer to crosslink and build viscosity. In the Arbuckle formation in Kansas, in many instances, it is difficult to determine when a pressure response is occurring as the surface treating pressure is a vacuum throughout most, if not all, of the treatment.

Pressure response is a product of polymer volume, injection rate and gel strength. Altering any or all of these factors can improve the success of the treatment if reservoir resistance is not seen as the gelant is being pumped. Increasing polymer volume is typically the first step many service companies recommend if the Hall plot indicates only a slight increase of pressure near the end of the treatment. The advantage of pumping a larger volume is that greater in-depth reservoir penetration can improve the longevity and effectiveness of the treatment. The disadvantage of more volume is increased treatment costs due to longer pump times and additional chemicals. However, in most instances, the incremental per barrel cost of the extra volume is relatively low since many of the costs associated with conducting the treatment (well preparation, service company equipment, etc.) are already spent.

Usually injection rates are increased at the beginning of the treatment in order to determine how easily the formation can accept a viscous fluid. Recent research and field experience have shown that higher pump rates can improve the effectiveness of treatments in carbonates that exhibit secondary permeability and porosity features. Increasing the injection rate also reduces the service company’s field time, which translates into a cost reduction for the operator.

Increasing gel strength or gel viscosity is the third method for achieving a pressure response. This method is typically used at the midpoint of a treatment when the Hall plot shows no increase in slope or after several treatments in a particular field indicate the need for such action. Improving gel strength can be done by accelerating the crosslinking, increasing the polymer loading (concentration) of the gelant, or using a higher molecular-weight polyacrylamide.

Acceleration of the crosslinker in Marathon’s MARCITSM is accomplished by adding chrome chloride to the chromic triacetate. Mature gels can be formed in approximately 4-6 hours at a temperature of 90o F with the accelerated crosslinker, as compared to the normal time of 16-18 hours. The advantage of this technique is that treatment volume may be significantly decreased in heterogeneous carbonates while the gel is placed into the highest permeability features of the formation. The disadvantage is that higher temperature reservoirs may cause the gel to prematurely set in or near the wellbore.

Increasing polymer loading will also improve gel strength. A 4,000 ppm gel contains 1.4 pounds of polymer per barrel of mix water. Increasing the concentration to 5,500 ppm will add 0.52 pounds per barrel, which is a nominal change in chemical cost. The advantage of high polymer loading is having a stronger gel that crosslinks in a shorter time.

Molecular weight also plays an important part in gel strength. Most treatments utilize polyacrylamides that have a molecular weight of 4-8 million. This medium molecular-weight polymer can be used for both high permeability matrix and smaller fracture systems. Service companies can also supply higher molecular-weight products that are designed for use in high conductive secondary features. Gels formed with this polymer will enter only the highest permeability sections of the reservoir where the water problem exists. The disadvantage of high molecular-weight gels is that in-depth reservoir penetration and subsequent water diversion may be reduced.

Field Name Cumulative Oil (bbl) Active Wells Twn Rng County Approx. Depth (ft)
CHASE-SILICA 307,571,872 876 18S-10W BARTON/RICE/STAFFORD 3,328
TRAPP 300,087,115 726 15S-14W BARTON/RUSSELL 3,252
El DORADO 299,365,153 618 25S-5E BUTLER 2,550
BEMIS-SHUTTS 248,694,147 2,150 10S-16W ELLIS/ROOKS 2,967
HALL-GURNEY 152,414,246 1,107 14S-13W BARTON/RUSSELL 3,192
KRAFT-PRUSA 130,826,618 700 15S-10W BARTON/ELLSWORTH/RUSSELL 2,885
GORHAM 94,783,868 369 14S-15W RUSSELL 3,289
GENESEO-EDWARDS 85,900,491 190 18S-8W ELLSWORTH/RICE 3,278
FAIRPORT 58,735,912 388 12S-15W ELLIS/RUSSELL 3,350
BLOOMER 55,787,569 244 17S-10W BARTON/ELLSWORTH/RICE 3,200
STOLTENBERG 52,996,954 470 15S-19W BARTON/ELLSWORTH 3,333
RAY 48,122,148 159 5S-20W GRAHAM, NORTON, PHILLIPS, ROOKS 3,540
AUGUSTA 47,773,725 111 28S-4E BUTLER 2,600
MOREL 46,765,270 444 9S-21W GRAHAM 3,718
MARCOTTE 41,659,245 221 9S-19W ROOKS 3,752
VOSHELL 36,066,429 22 20S-3W MCPHERSON 3,400
IUKA-CARMI 34,128,807 226 27S-13W PRATT 4,354
COOPER 25,486,646 112 9S-20W GRAHAM/ROOKS 3,216
RUSSELL 23,243,643 53 13S-14W RUSSELL 3,280
GATES 21,519,184 125 21S-12W STAFFORD 3,679
TRICO 20,959,428 144 10S-20W ELLIS/GRAHAM/ROOKS/TREGO 3,651
RICHARDSON 19,843,416 75 22S-11W STAFFORD 3,537
OXFORD 18,196,474 26 32S-2E SUMNER 2,890
BARRY 17,812,734 132 8S-19W ROOKS 3,430
MUELLER 15,950,997 105 21S-12W STAFFORD 3,594
OTIS-ALBERT 15,278,960 22 18S-16W BARTON 3,703
OGALLAH 14,805,787 37 12S-21W TREGO 3,961
GREENWICH 14,165,749 20 26S-2E SEDGWICK 3,321
BOYD 14,055,036 54 17S-13W BARTON 3,438
MAX 13,344,772 63 21S-11W STAFFORD 3,570
LORRAINE 12,666,332 26 17S-9W ELLSWORTH 3,200
TOBIAS 12,521,480   20S-9W RICE 3,218
SOLOMON 12,083,711 86 11S-19W ELLIS 3,629
IRVIN 11,812,943 76 13S-19W ELLIS 3,860
NORTON 11,692,977 88 3S-23W NORTON 3,778
DOPITA 11,321,826 131 8S-17W ROOKS 3,409
HITTLE 10,542,917 240 31S-4E COWLEY 3,280
NORTHHAMPTON 10,113,608 51 9S-20W ROOKS 3,803
DRACH 10,016,115 23 22S-13W STAFFORD 3,690

Table 1: Twenty-one major Arbuckle fields in Kansas.
