Seismic Modeling in the Minneola Complex, Figure 7b


Please use the "Back" command of your browser to return to the page you were viewing.

Color Version || Black and White Version

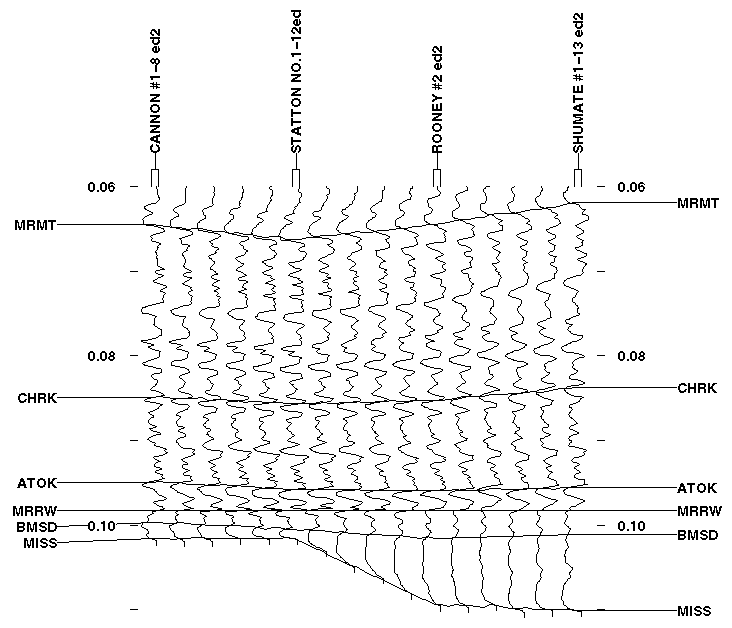

Figure 7b--Interpolated single well acoustic impedance model. Reds represent limestones, sandstones, and higher velocity shales. Yellows and oranges represent lower velocity shales. Vertical scale in seconds of two-way travel time from the top of the model and is approximately twice that of the seismic models.
